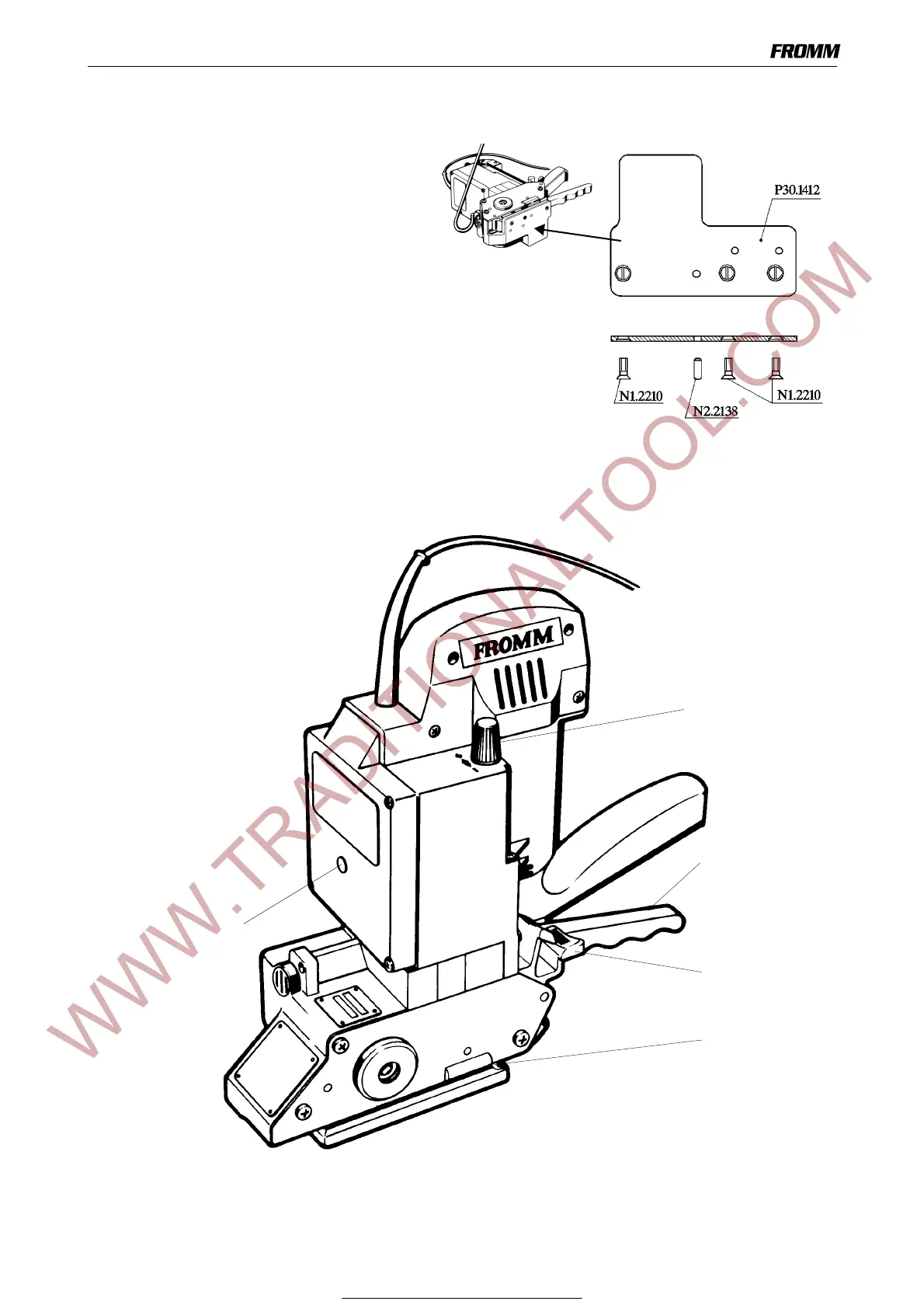

7.2 Wearing plate
As an option, tool can be equipped with a
wearing plate complete (item-No. P30.1411) to
protect base from excessive wear on abrasive
package surfaces (like bricks, concrete blocks
etc.).
Remove screw N1.1305 and pin N2.2110 from
body and attach wearing plate with the 3
screws N1.2210 and the pin N2.2138.
8 OPERATING CONTROLS
Switching lever
Strap guide
Grip lever
Cover / rotary-poti
Rotary knob
