- The vacuum lifting pads must be designed for the weight of the connection area and
power stage set.
- Follow all safety instructions from the vacuum lifting pad manufacturer.
- Vacuum lifting pads are not part of the scope of delivery for the inverter.
Weight information for the connection area and power stage set:
Fronius IG Plus
installation
Inverter Connection area Power stage set
Fronius IG Plus 30 V-1 9,85 kg 13,95 kg
Fronius IG Plus 35 V-1 9,85 kg 13,95 kg
Fronius IG Plus 50 V-1 9,85 kg 13,95 kg
Fronius IG Plus 70 V-1 9,85 kg 26,10 kg
Fronius IG Plus 70 V-2 9,85 kg 26,10 kg
Fronius IG Plus 100 V-1 10,80 kg 26,10 kg
Fronius IG Plus 100 V-2 10,85 kg 26,10 kg
Fronius IG Plus 120 V-3 11,05 kg 38,15 kg
Fronius IG Plus 150 V-3 11,05 kg 38,15 kg

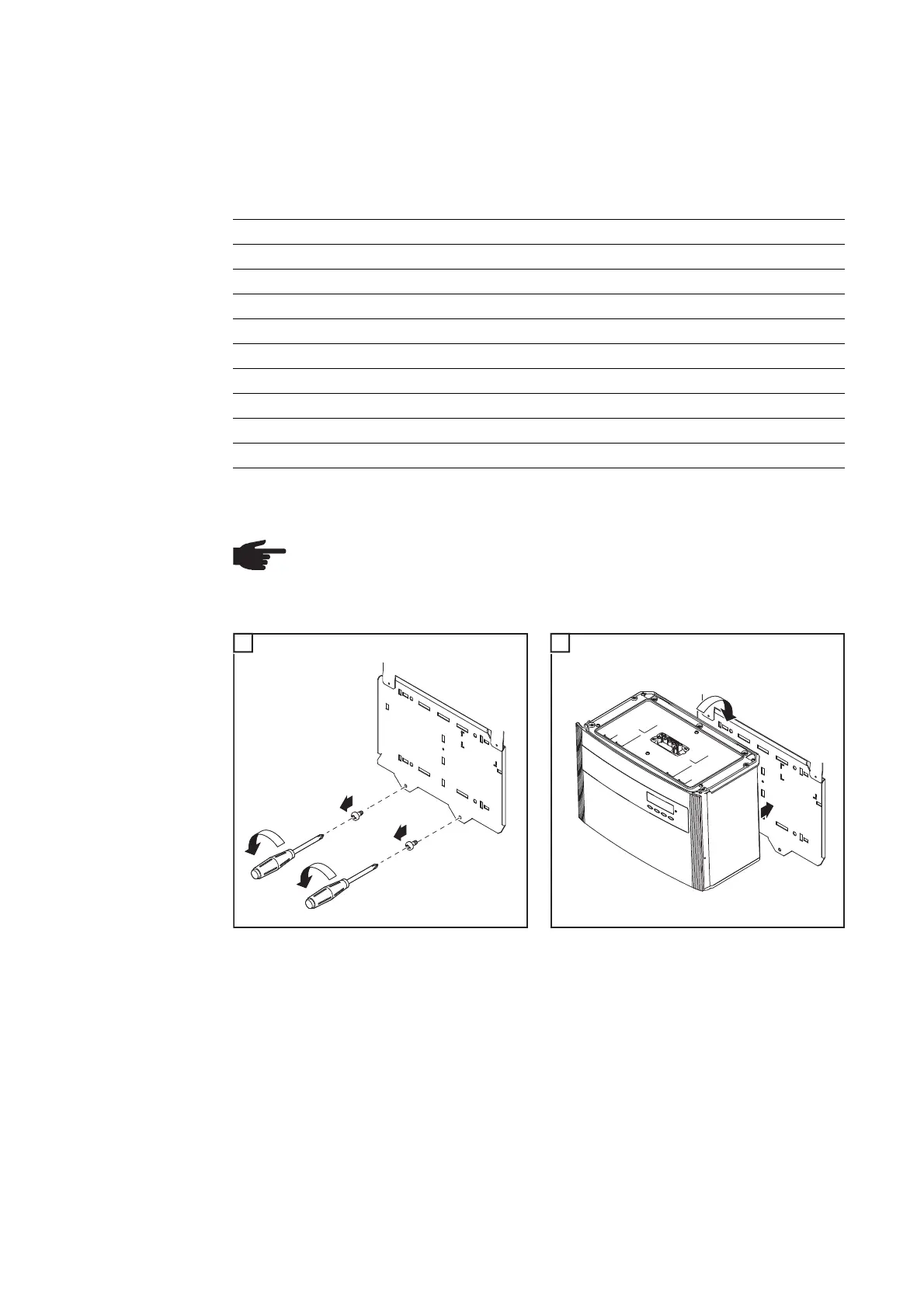

NOTE! For inverter assembly, please ensure that:
- the wall bracket is fixed securely to the wall
- the connector is hung and fixed to the wall bracket
- the power stage set is hung on the wall bracket and fixed to the connector
2
1
A
B
1
1
2
2
