Fronius PV Point - 4 Fuse Protection of the Socket or Circuit; PV Point

Quick guide PV Point & PV Point Comfort 1415
Figure 11: Activation of the PV Point [Comfort] in the web interface at a later time
After successful installation and commissioning, Fronius recommends a functional test of the PV Point
[Comfort]. The switching time is less than 23 seconds.
4 Fuse protection for the socket or circuit
4.1 PV Point
With regard to the PV Point socket outlet, it is important that it is protected with an RCD (type A 30 mA)
in order to guarantee personal protection and ensure compliance with standards. RCD sockets with an
integrated RCD are a simple variant, as shown in Figure 12:

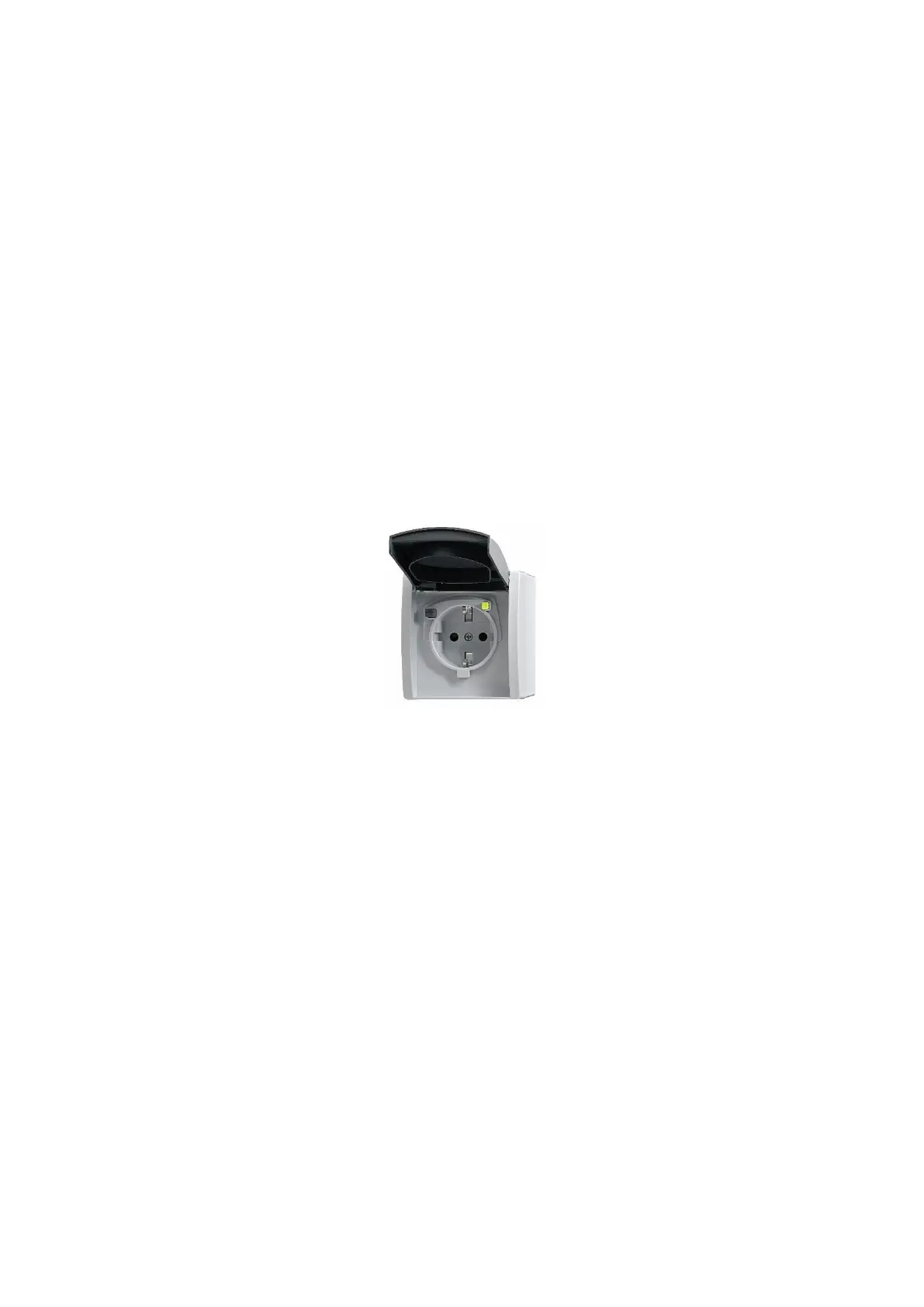

Figure 12: RCD integrated socket
A possible manufacturer of RCD circuit breakers would be (type designation):
− Busch-Jaeger 3120 EWB-53 FI-SCHUKOMAT Schuko socket outlet with residual current circuit
breaker
In addition to the solution with a ready-made RCD circuit breaker, there is also the cheaper option of
installing the necessary components in a small distribution cabinet. The following components, for
example, can be used for this:
− 1 piece surface-mounted housing with 5 dividing units and transparent cover
− 1 RCD type A 30mA
− 1 earthed socket outlet for top-hat rail
