Quick guide PV Point & PV Point Comfort 815

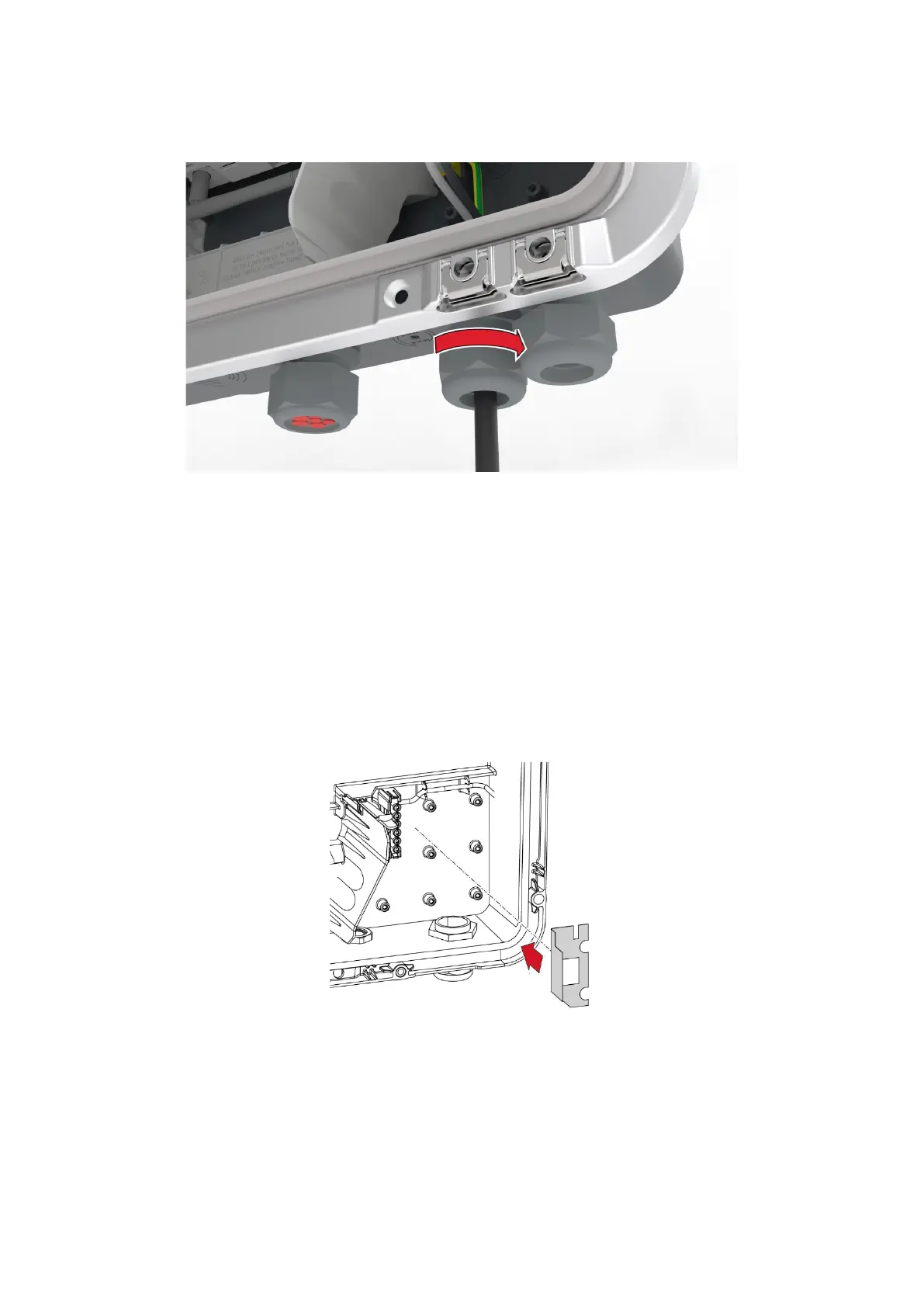

The installation is completed by screwing in the cable gland, which is shown in Figure 7:
Figure 7: Screw connection of the cable gland
2.3 PV Point Comfort cabling
The PV Point Comfort is installed and wired into the GEN24 as follows:
1. First insert the insulation foil.
