Quick guide PV Point & PV Point Comfort 715
Figure 5: Push-in spring clamp and cable requirements for installing the PV Point
The PV Point's push-in spring-loaded terminal can be removed by pressing the catch on the back. For
the subsequent cabling, the earthing of the PV Point must be connected to the internal earthing terminal
block in the inverter. An additional earthing cable must be run from the earthing terminal block to the
PV Point terminal (PEN conductor). The cable cross-section of the PEN connection must be dimensioned
to match the minimum cross-section of the inverter. The wiring in the inverter is shown in Figure 6:

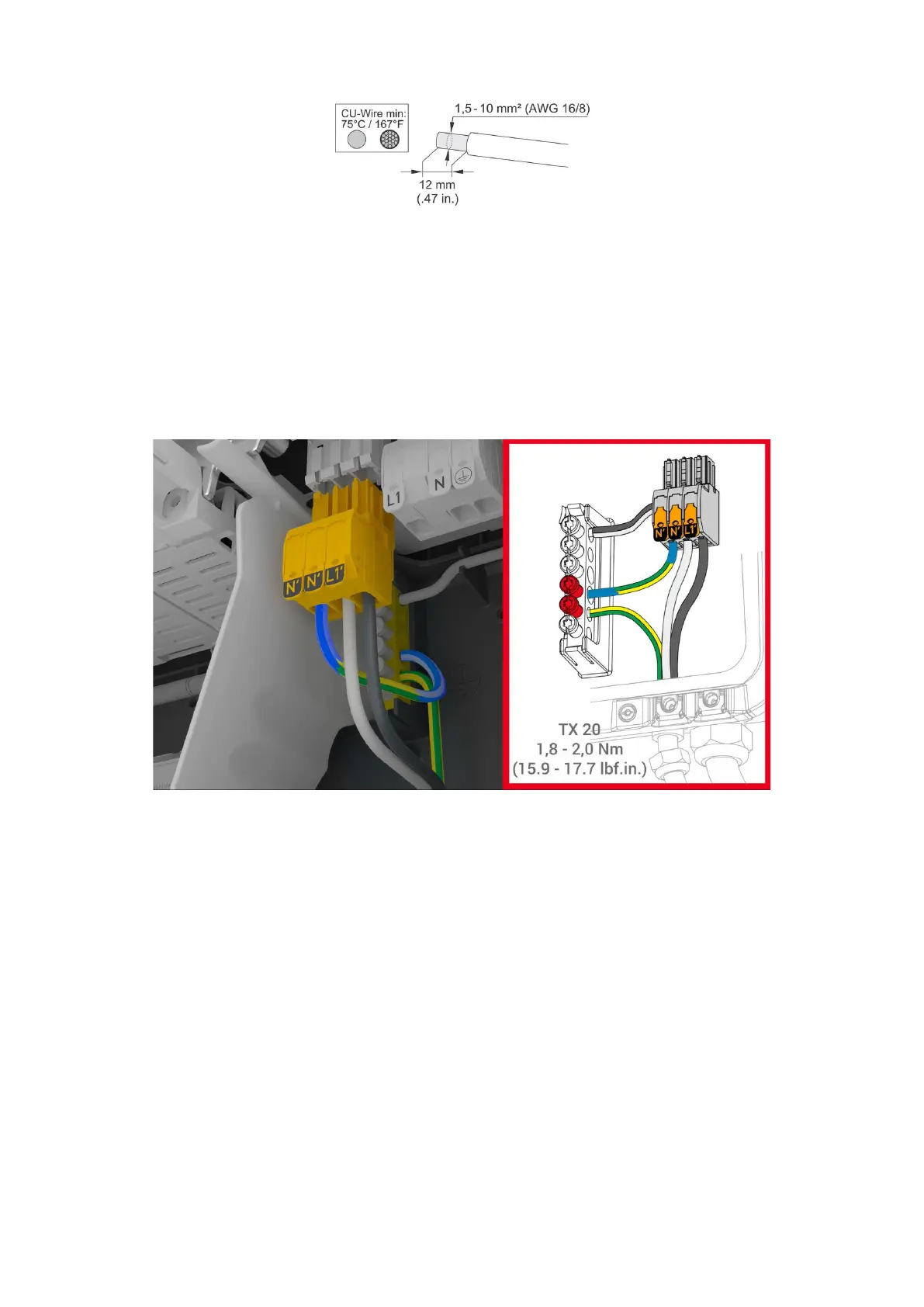

Figure 6: Wiring of the PV Point in the inverter
