Controls, connections and mechanical components
General All functions of the Robacta TC are activated by the robot control. For adjustment, the
cleaning operation can be manually triggered on the Robacta TC housing. For easier op-
eration, the Robacta TC is fitted with indicator lights.

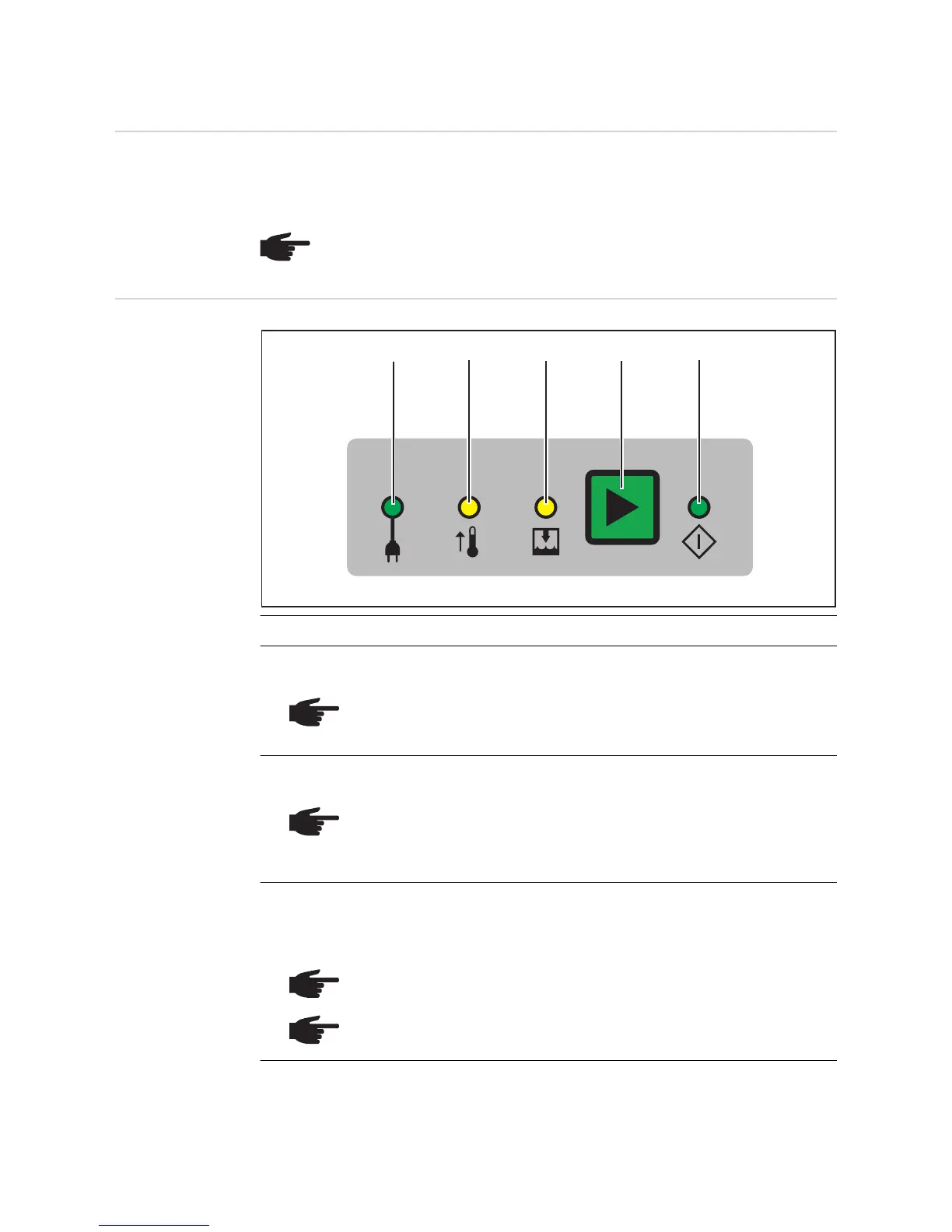

Control panel
No. Function
(1) Mains voltage indicator
lights up when the device is powered by mains voltage
(2) Overtemperature indicator
lights up when the device overheats
(3) Fill level indicator
will come on
- if the fill level in the dipping bowl drops below minimum
- if the dipping bowl is not used, hence there is no parting agent in the dipping bowl
(4) Discharge key
press the key briefly; the cleaning device will perform the following functions:
1. Cleaning is started
NOTE! The individual illustrations may differ slightly from your device. However,
the functioning of the controls and the connections is identical.
NOTE! If the capacitors in the device are charged, they will discharge auto-
matically as soon as the device is unplugged from the mains. Discharge time
is approx. 1 second.
NOTE! One more cleaning operation can be carried out after this indicator
lights up. Only once the device has cooled back down to the operating tem-
perature will the device recharge in preparation for the next cleaning opera-
tion.
NOTE! If the dipping bowl in use, it should be refilled with parting agent as
soon as the fill level indicator lights up.
NOTE! The cleaning function of the Robacta TC remains available even if
the fill level indicator is illuminated.
(1)
(2)
(3) (4)
(5)
