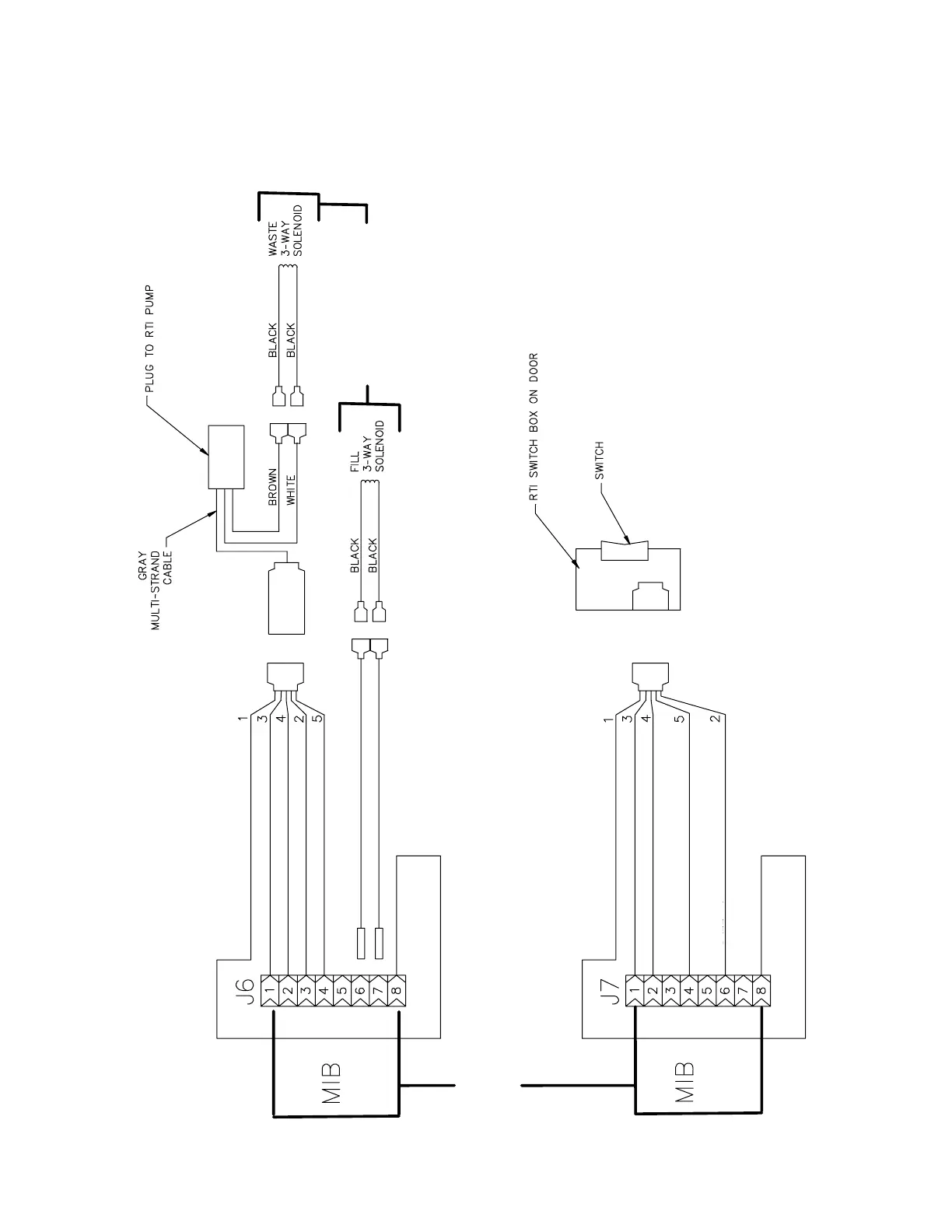

TESTING BETWEEN PINS 1 & 8 SHOULD READ: 0VDC WHEN RTI TANK IS FULL 5
VDC WHEN RTI TANK IS NOT FULL
BLACK 24VAC IN FROM RTI (HOT)
WHITE 24VAC IN FROM RTI (COM)
GREEN 24VAC OUT RTI PUMP
BROWN 24VAC OUT WASTE SOL.
DE-ENERGIZED – POT ENERGIZED - JIB
5-CONDUCTOR
RED
BLACK 24VAC IN FROM RTI (HOT)
WHITE 24VAC IN FROM RTI (COM)
BROWN 24VAC OUT WASTE SOL.
GREEN RTI JIB VALVE
RED
Bulk Oil LOV
™
Wiring
