Oil Disposal and Fill with RTI-equipped Systems
Bulk oil systems have large oil storage tanks, typically located in the rear of the restaurant, that are
connected to the rear manifold on the fryer. Waste oil is pumped from the fryer, through the fi tting
located on the right, to the disposal tanks and fresh oil is pumped from the tanks, through the fi tting
located on the left, to the fryer (as shown below).
LOV
™
fryers equipped for use with bulk oil systems have an onboard fresh oil jug with two fi ttings.
The rear fi tting is used for fi lling the jug and the front fi tting is for topping off the frypot from the jug.
A momentary switch located inside the door adjacent to the JIB allows the operator to fi ll the JIB
from the bulk oil storage tank. To fi ll the JIB, press and hold the add switch until the JIB is full then
release.

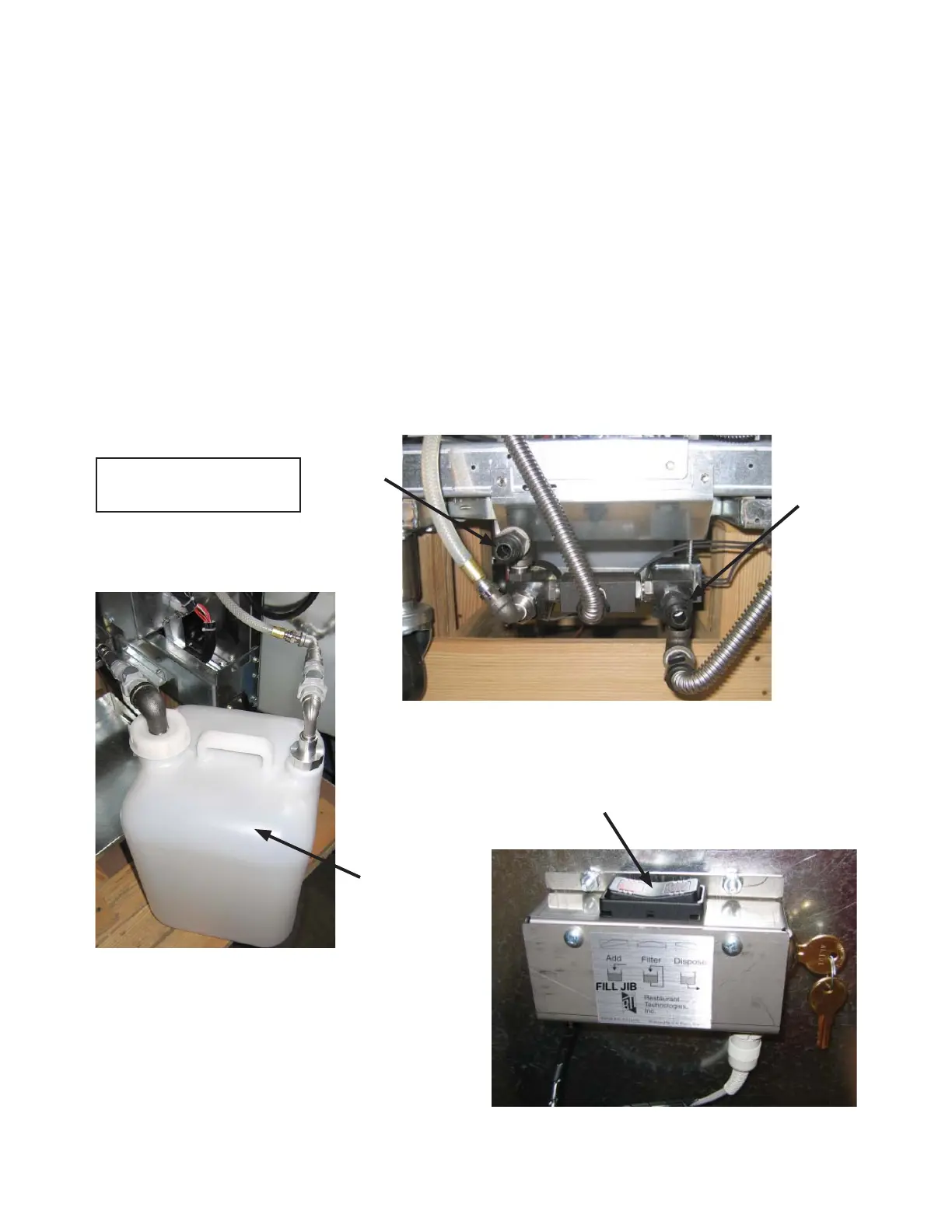

Fittings, LOV
™
Fryer.
Warning: Do not add HOT
or USED oil to the JIB.
The RTI JIB.
RTI momentary switch.
Fresh Oil
Connection
Waste Oil
Connection
