Rev 007, 04/12 13
© SP Scientific 2012

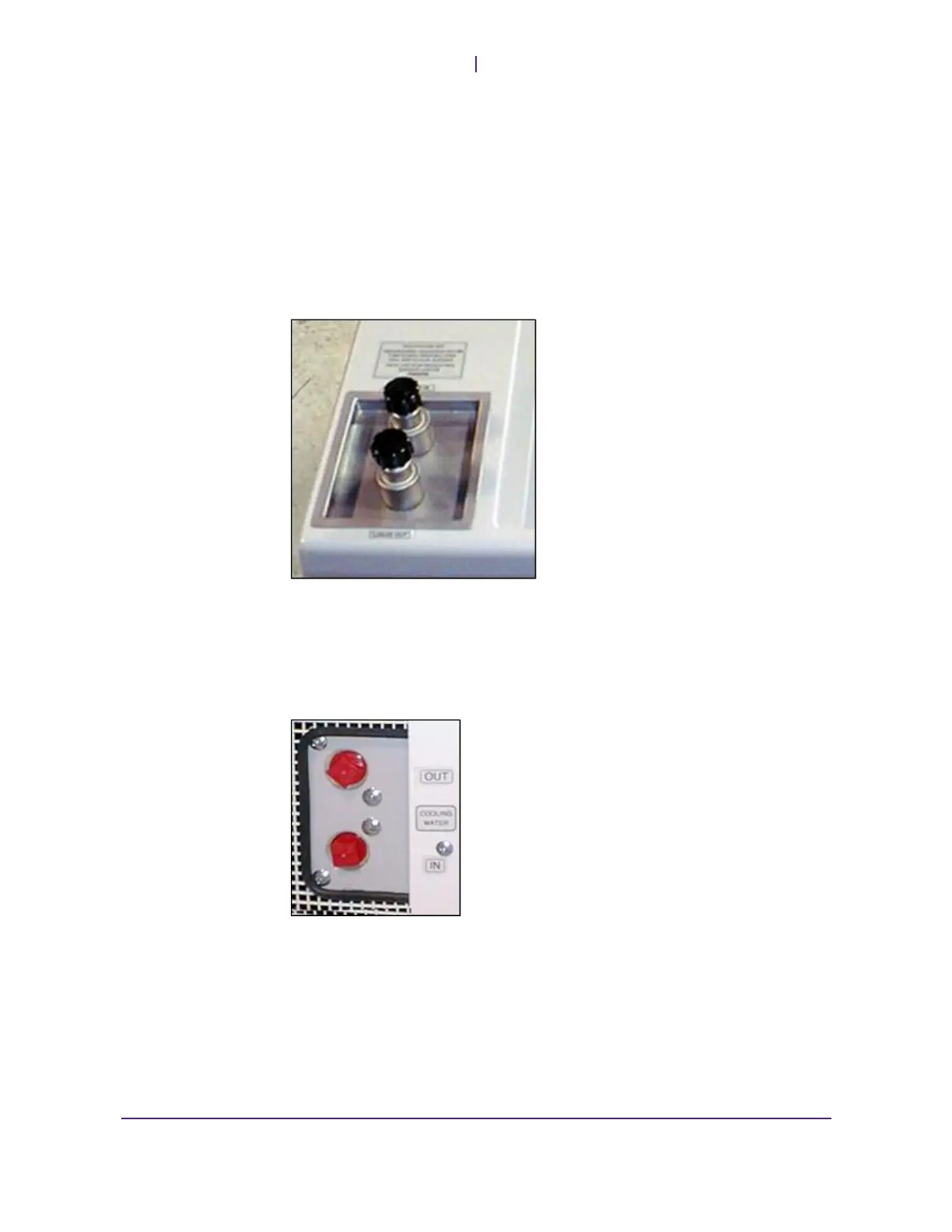

Connect to the Process
SP Scientific provides input and output connections for the process fluid. To tie these
lines into your process, you will require
1/2” Fittings (for 1/2” male pipe thread1/2” ID tubing (minimum)
Pipe Insulation (Closed cell pipe insulation will work for most applications. It
can be purchased from any local refrigeration or plumbing supply house.)
Glue seams of pipe insulation
Polytetrafluoroethylene (PTFE) tape pipe sealant to seal all fittings
If water-cooled you will also need
Water supply capable of 2-3 GPM and 30-60 Psi
Any fittings and pipes necessary to make this connection.
PTFE tape to seal connections
