1.2 External View and Terminal Blocks
(1) Outside and inside views

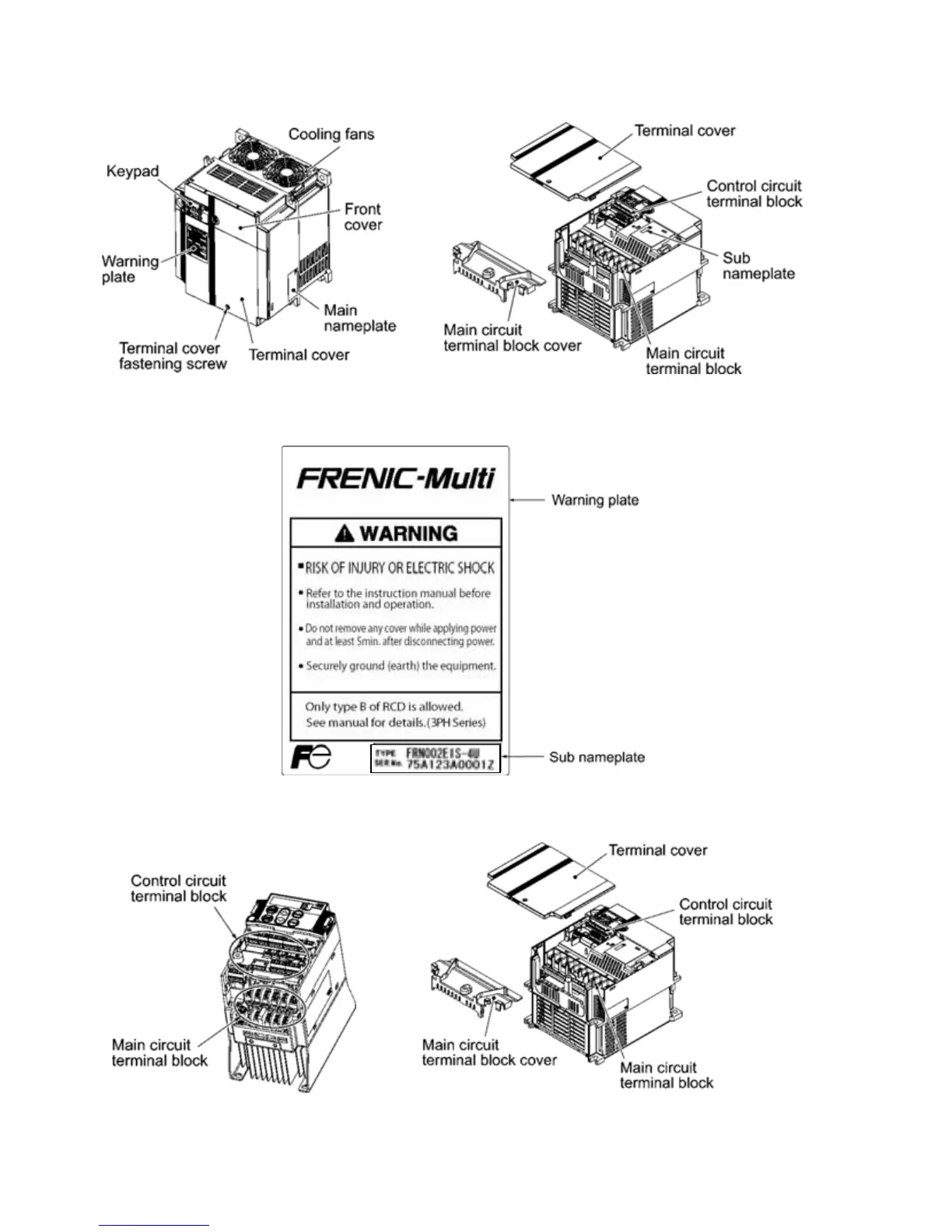

Figure 1.2 Outside and Inside Views of Inverters (FRN020E1S-2U)
(2) Warning plates and label
Figure 1.3 Warning Plate and Sub Nameplate
(3) Terminal block location
(a) FRN001E1S-2U
(b) FRN020E1S-2U
Figure 1.4 Terminal Blocks
