2.4 Mounting and Connecting a Keypad
2.4.1 Mounting style and parts needed for connection
(1) Mounting style
You can mount a keypad in any style described below.
Mounting a keypad on the panel wall (Refer to Figure 2.23.)
Installing a keypad at a remote site (e.g. for operation on hand) (Refer to Figure 2.24.)

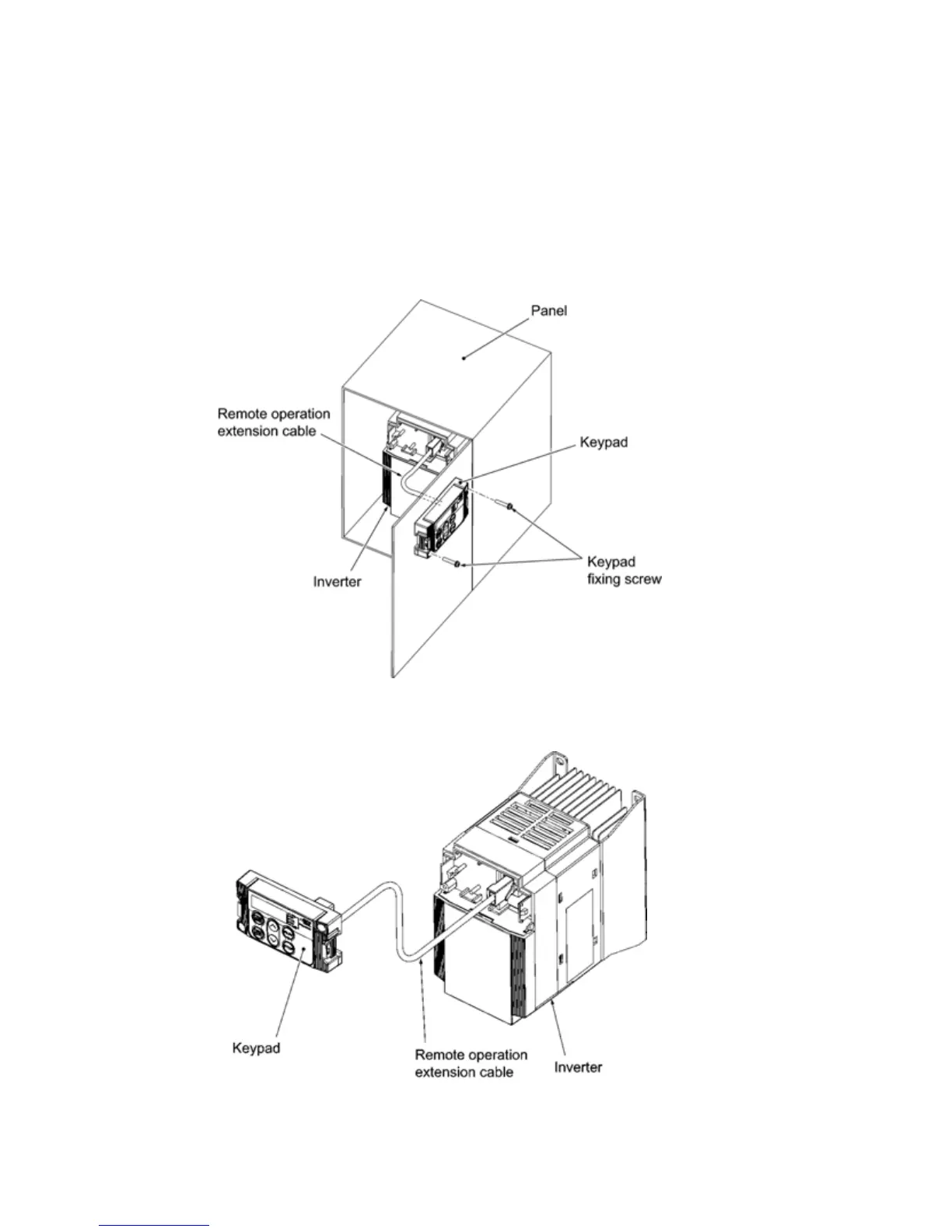

Figure 2.23 Mounting Keypad on the Panel Wall
Figure 2.24 Installing Keypad at a Remote Site (e.g. for Operation on Hand)
