Machine Components
45
Product Overview
2

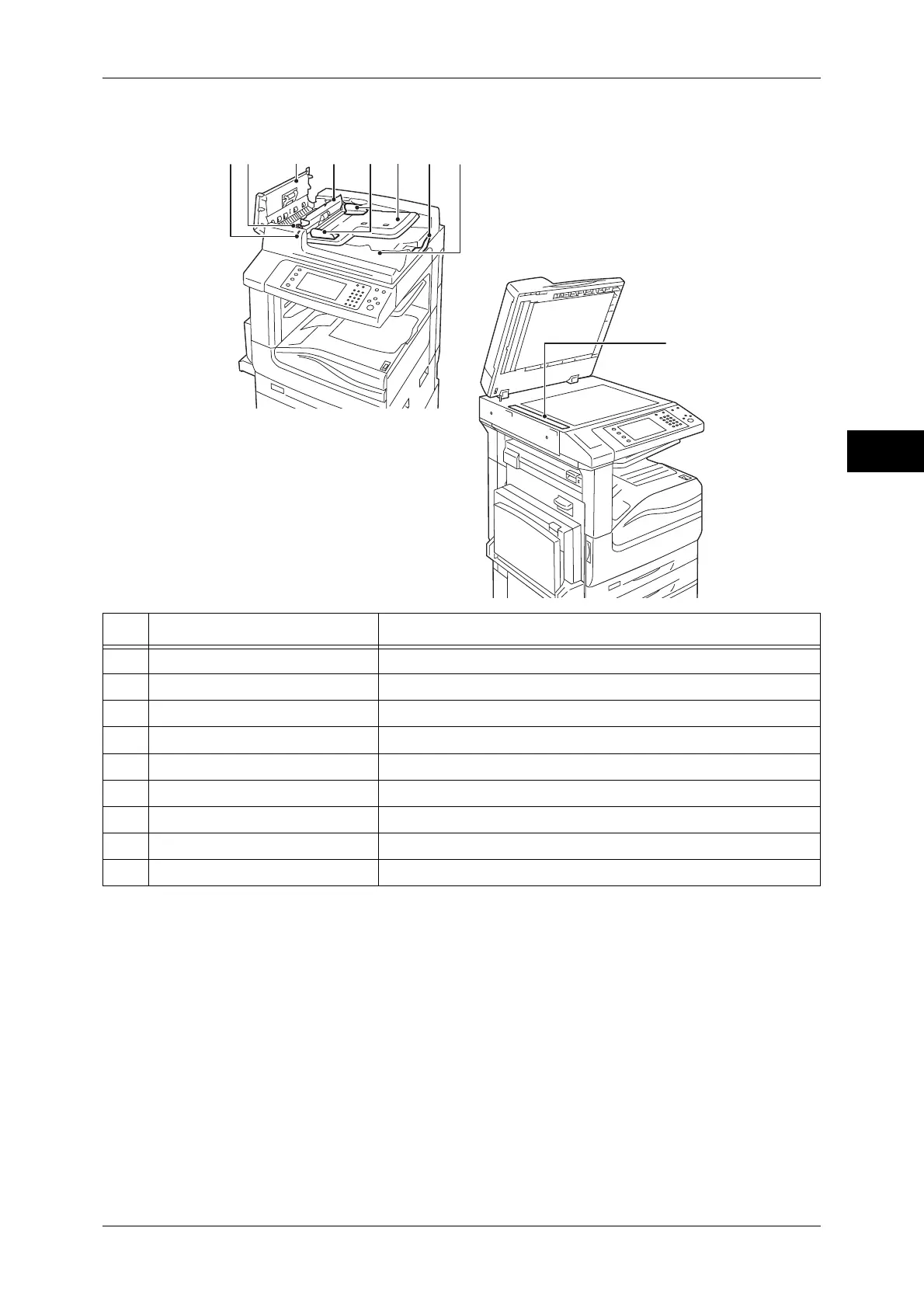

îš„Duplex automatic document feeder
Note • In this guide, the duplex automatic document feeder is referred to as the "document feeder"
or "DADF".
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Knob Turn this knob to clear paper jams.
3 Top cover Open this cover to clear paper jams.
4 Green tab Open this tab to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document stopper Prevents outputs from falling off.
8 Document output tray Scanned documents are delivered here.
9 Constant velocity transport glass Scans a loaded document.
7
12 3 5
6
8
4
9
To Next Page
