Product Overview
2
Machine Components

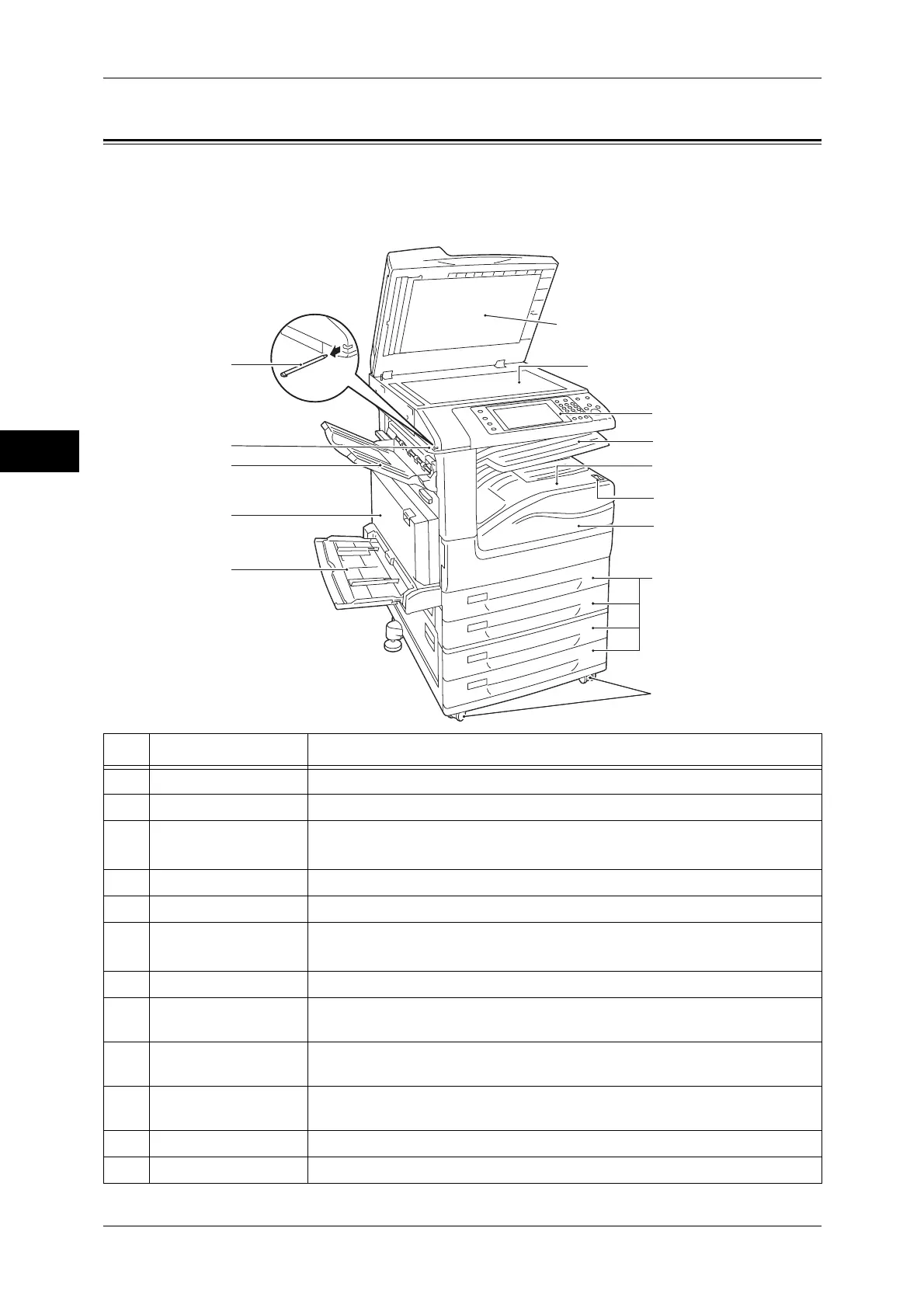

The following describes machine components and their functions.
îš„ 4 Tray Model
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Control panel Consists of operation buttons, LED indicators, and a touch screen.
Refer to "Control Panel" (P.59).
4 Exit 2 tray (optional) Outputs are delivered here by separating the center tray into two levels.
5 Center tray Copies and prints are delivered here, facing down.
6 Power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.51).
7 Front cover Open this cover to replace the consumables.
8 Tray 1, 2, 3 (optional),
4 (optional)
Load paper here.
9 Locking casters Used for locking the wheels of the machine. Lock these casters after moving
the machine to its installation site.
10 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other special
media) that cannot be loaded in the Trays 1 to 4, and 6.
11 Duplex module Automatically prints or copies on both sides of paper.
12 Side tray (optional) Copies and prints are delivered here, facing up.
5
6
7
8
9
11
12
10
1
3
4
2
13
14
