44 Basic Operation

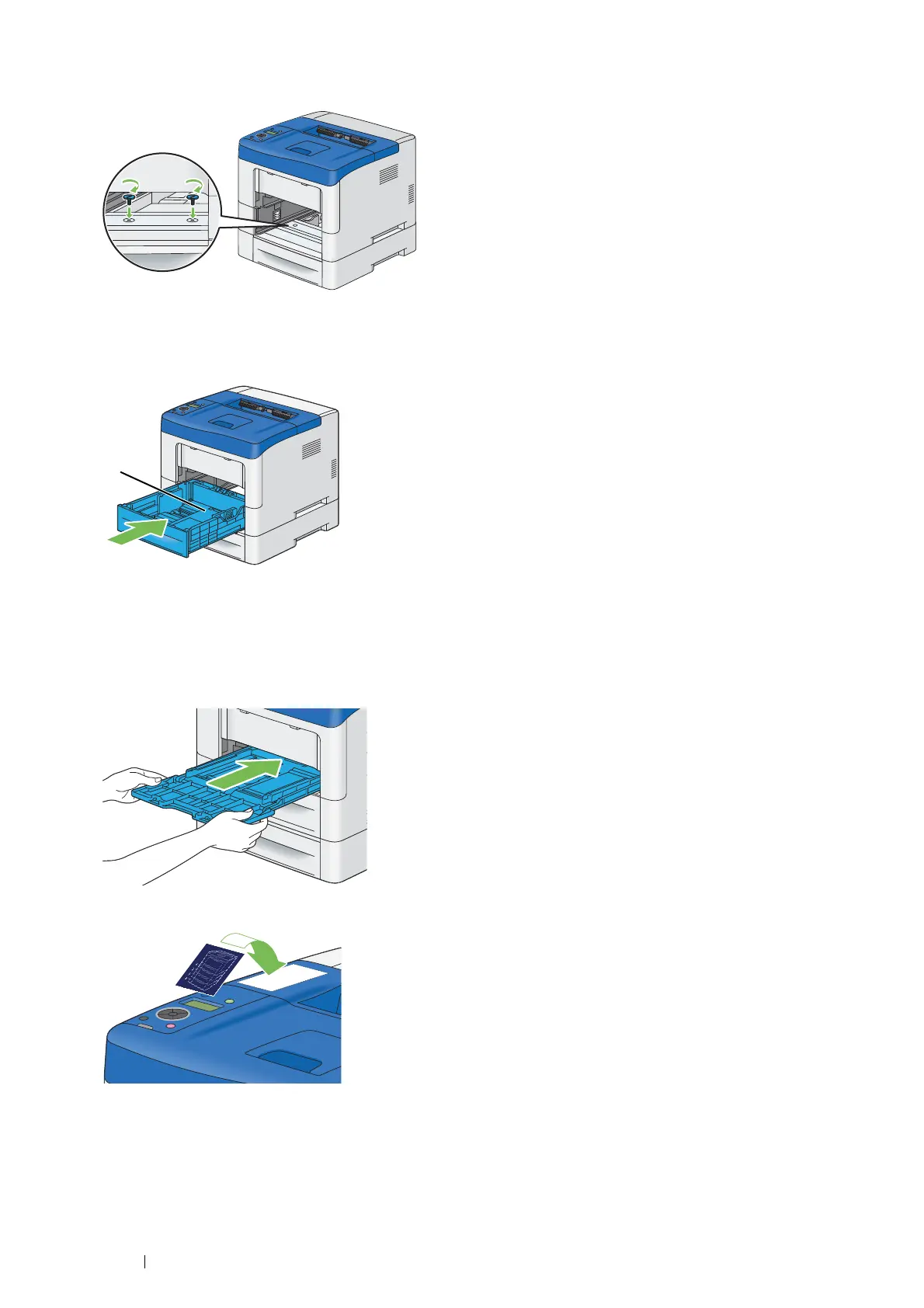

15 Secure the optional 550 sheet feeder to the printer by tightening the two screws provided with the feeder with a
coin or similar object.
NOTE:
• The screw hole is located in 145 mm recess from the front of the printer.
16 Insert the standard 550 sheet tray into the printer, and push until it stops.
IMPORTANT:
• Do not use excessive force on the tray. Doing so could damage the tray or the inside of the printer.
• When you set the tray, make sure that the bottom plate is lowered. If the back side of the bottom plate is raised before
setting the tray, press the 1 to lower the plate.
17 Insert the bypass tray into the printer, push until it stops, and close the cover.
18 Apply the label to the upper part of the operator panel on the printer.
19 Reconnect all cables into the rear of the printer and turn on the printer.
NOTE:
• The printer will automatically detect the attached tray but will not detect the paper type.
