5. CONTROL SYSTEM
INSTALLATION


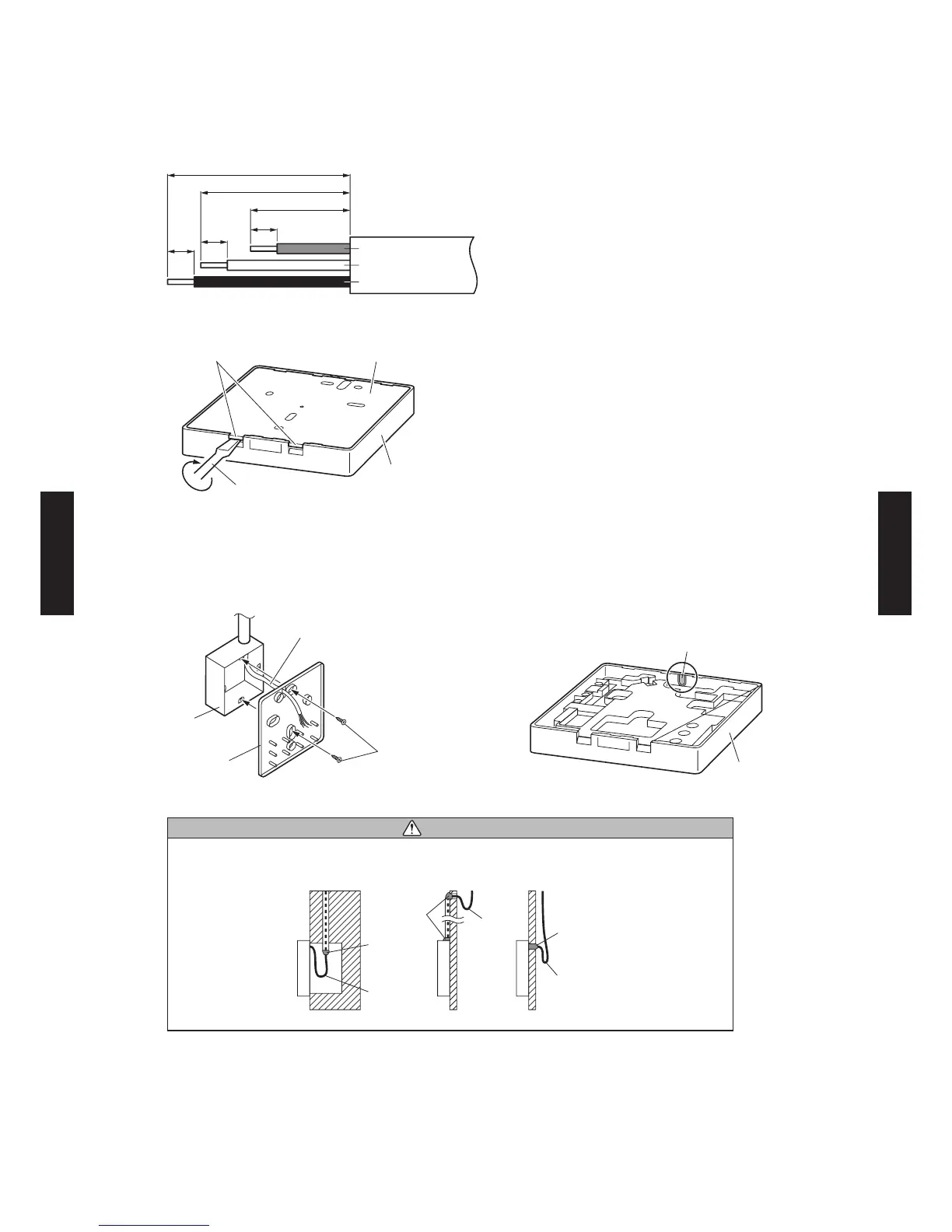

1) Remove the insulation of the remote controller cable.
8
8
8
30
45
55
(Unit: mm)
1. 12V (Red)
2. Signal (White)
3. COM (Black)
 nsert a atbade screwdrier and reoe the ront case and rear case b twisting it sight.
Flat screwdriver
Front case
Hooks (2 places)
Rear case
3) Install the rear case to the wall, box, etc. with 2 screws (M4 × 16 mm). Fix the 2 screws in
either horizontal or vertical position.
B. When the cable is along the wall:
Mount the rear case on the wall.
Cut off a hole for cabling in the front case.
Front case
Cut off
A. When mounting on the box:
Attach the case after leading the cable.
Screws
Box
Remote controller cable
Rear case
CAUTION
When connecting the remote controller cable, take measures to prevent water or insects 
coming into the remote controller through the cable, such as to provide a trap or close the
hole for cabling with putty.
Putty
Putty
Putty
Trap
Trap
Trap
4) Setting up the DIP switch. Refer to "6. SYSTEM DESIGN".
- (05 - 10) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
