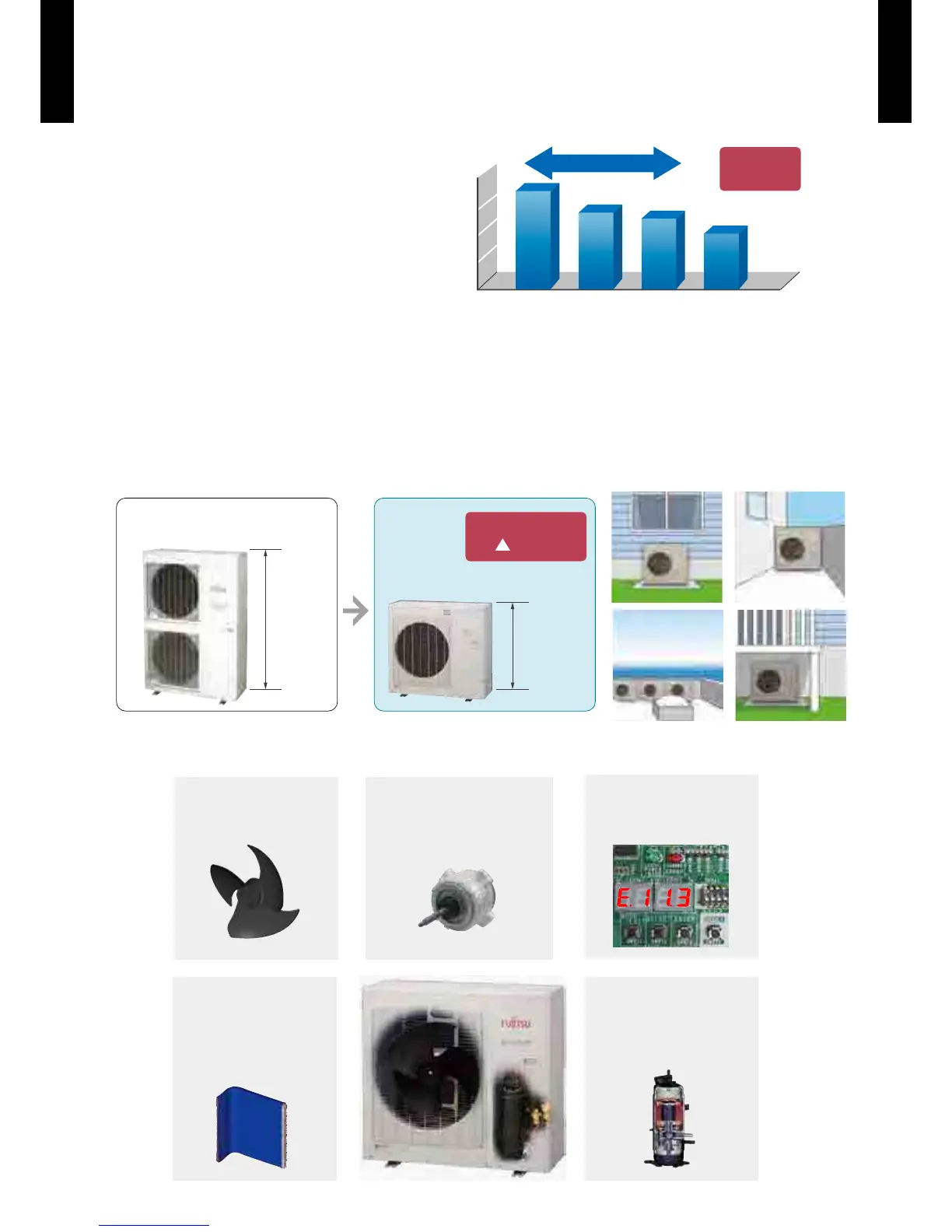

FEATURES OF SYSTEM1.
HIGH EFFICIENCY & COMPACT1-1.
HIGH SEASONAL EFFICIENCY

The actual performance is conducted
under various outside temperatures
depending on weather and seasons,
furthermore, especially for multi
system, not all the rooms are operated
all the time. So over 90% the actual
operation time, air conditioners are
operated at partial capacity instead of
rated capacity.
Considering these, we focused on
energy-saving performance based on actual use.
in    mn  i im  in n   in
and our very own inverter system.
TOP CLASS COMPACT DESIGN

Compact and lightweight outdoor unit is easy to carry in, and it can be installed unnoticeably in
various places.
1290mm
914mm
Example of 14kW class New model
Height difference
29%
INNOVATIVE TECHNOLOGY

High efficiency
DC twin rotary Compressor:
A high performance, low noise,
large capacity DC twin rotary
compressor is used.
Heat exchanger:
Reduced compact size and
energy saving has been
realized by utilizing high
density piping design and
3-Row heat exchanger.
High efficiency large fan:
New high efficiency fan is
mounted.
DC Fan motor:
High performance and high
7 segment display:
Easy-to-read 7 segment LED
display which explains
operational and trouble status.
efficiency has been realized
by using a small DC fan
motor.
(50% load)
EER
4.75
EER
Frequent operation range
5
3
1
0
Part load(%)
25 50 75 100 %
4.75
1.  
- (01 - 01) -
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
