CONVENIENT CONTROL SYSTEM1-4.
 in ni  i i i  i   i m n  n imn. 
options, such as individual and central remote controllers, are also available. The easy-to-operate central remote
n m i im  n  in m m i m im n  nin 
each indoor unit from a single location.
Power &
Transmission line
Outdoor unit
Indoor unit
R.C.
Branch box
Remote controller cable
Wireless Remote Controller
Simple and sophisticated operation
with a variety of timer settings
Controllable
1multi system
Max. Controllable
8 indoor units
Wireless
Remote Controller
Necessary for all Wireless
Remote Controllers used with
duct type units
IR Receiver Unit
Central Remote Controller

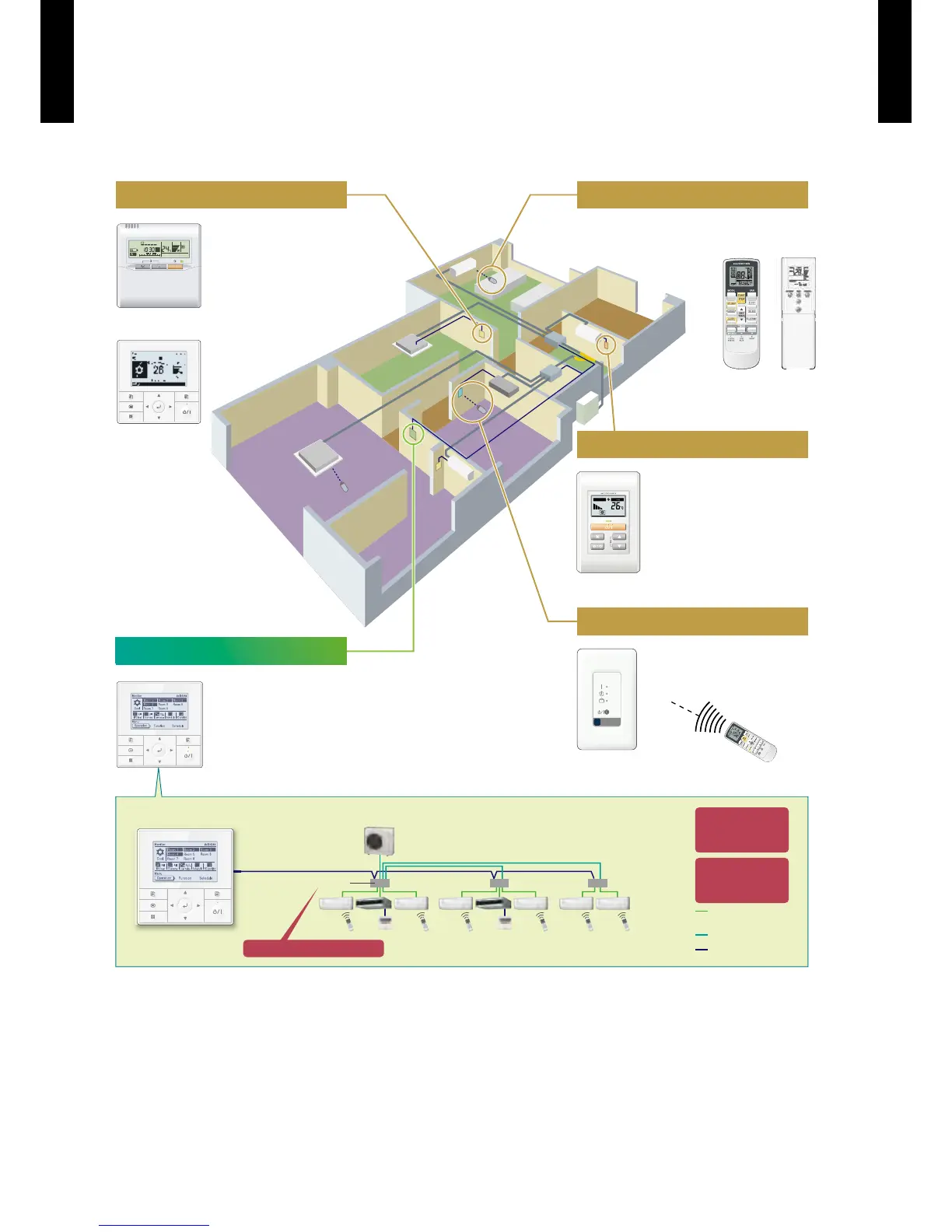

System configuration
SU
MO
TU
WE
TH FR SA
7
3 12 69 15 18 21
The room temperature can
be controlled by detecting
the temperature
accurately from the built-in
sensor
Wired Remote Controller
Central Remote
Controller allows
individual and central
control
Address setting is not required*
When the indoor units are connected to a branch box,
the addresses for each indoor unit are set automatically.
*Note : Cross-over connections are not allowed in the refrigerant system. Group settings are not allowed.
Transmission line
Compact remote controller
provides access to basic
functions
Simple Remote Controller
1.  
- (01 - 05) -
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
