6. SYSTEM DESIGN
ADAPTER INSTALLATION

Attach the adapters (accessories) to the ports on the gas pipe side of the indoor unit according to 
the size of the pipe to be connected.
Apply the refrigeration compressor oil (or equivalent) used for the outdoor unit to the 
attaching portion of the adapters.
Tighten the adapter using a torque wrench 
according to the tightening torque values in the
table below.


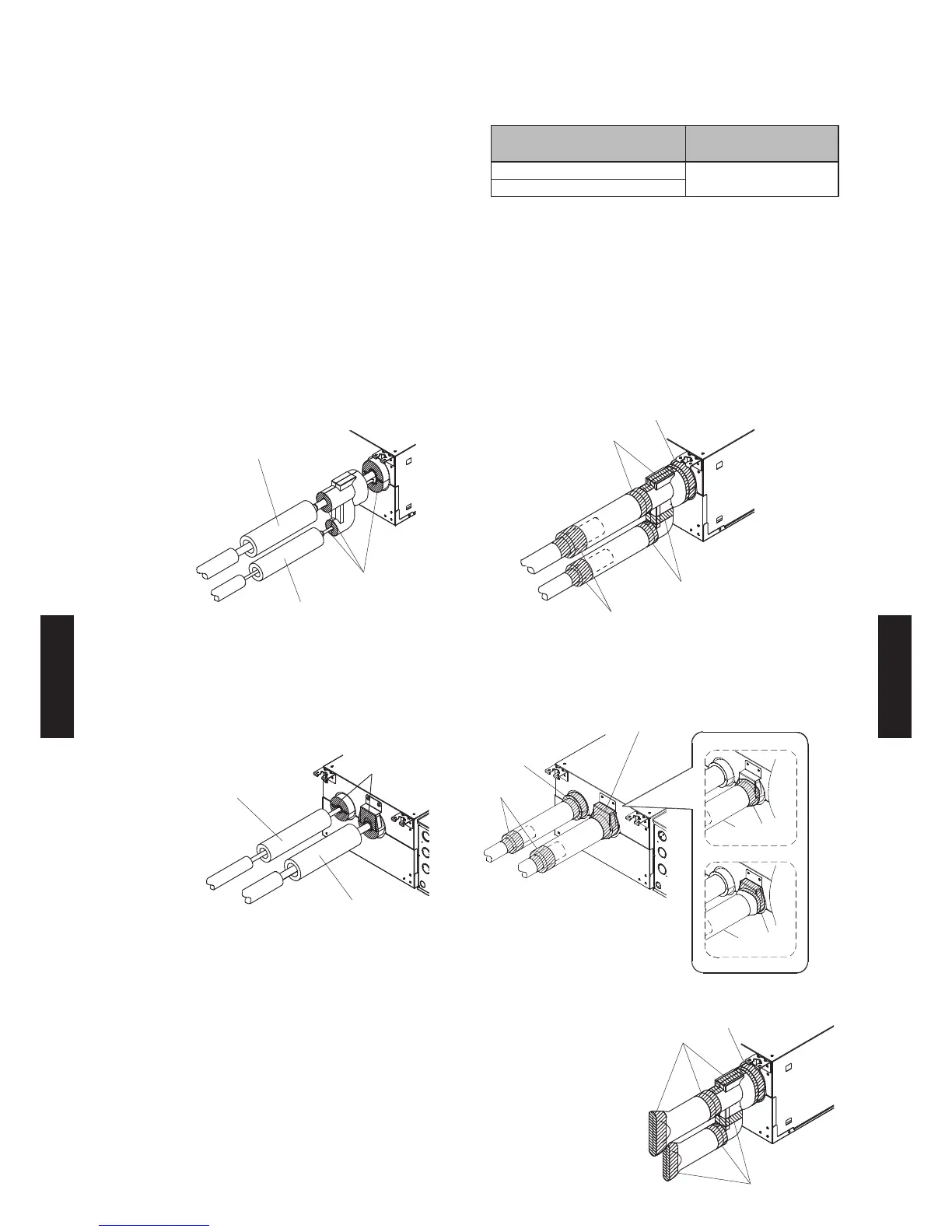

PIPING INSULATION
(1) Install the coupler heat insulation (large and small) and insulation (long and short) on each pipe as
shown in the gures beow.
(2) Attach the butting surface with no gap to eliminate any gap between the insulations.
(3) During the pipe insulation work, prevent air from getting inside the insulation with an adhesive tape
ed supp.
Indoor unit side

Coupler heat insulation (large)
dhesie tape ed supp
dhesie tape ed supp
dhesie tape ed supp
Insulation (long)
Coupler heat insulation (small)
Butting surfaces
Outdoor unit side

Coupler heat insulation (small)
Coupler heat insulation (large)
Butting surfaces
[First piece]
Insulation (short)
Insulation (short)
[Second piece]
Insulation (short)
Adhesive tape
ed supp
Insulation (short) x 2
(cover with 2 pieces of
insulation)
NON-CONNECTING PIPES

(1) Install the coupler heat insulation (large and small)
and insulation (long) as shown in the figure on the right.
 pp an adhesie tape ed supp to preent air
from getting inside the insulation.
Adapter
[mm (in.)]
Tightening torque
[N·m]
 .    . 
49 to 61
 .    . 
Insulation (long)
dhesie tape ed supp
dhesie tape ed supp
- (06 - 37) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
