6. SYSTEM DESIGN
FUNCTION SETTING

 Press the an button so that the unction nuber dispa ashes. hen press either
the "Set Temp.
p
" button or the "Set Temp.
q
" button to set up the function number.
Function number
 Press the an button so that the etting nuber dispa ashes. hen press either the
Set Temp.
p
button or the Set Temp.
q
button to set up the setting number.

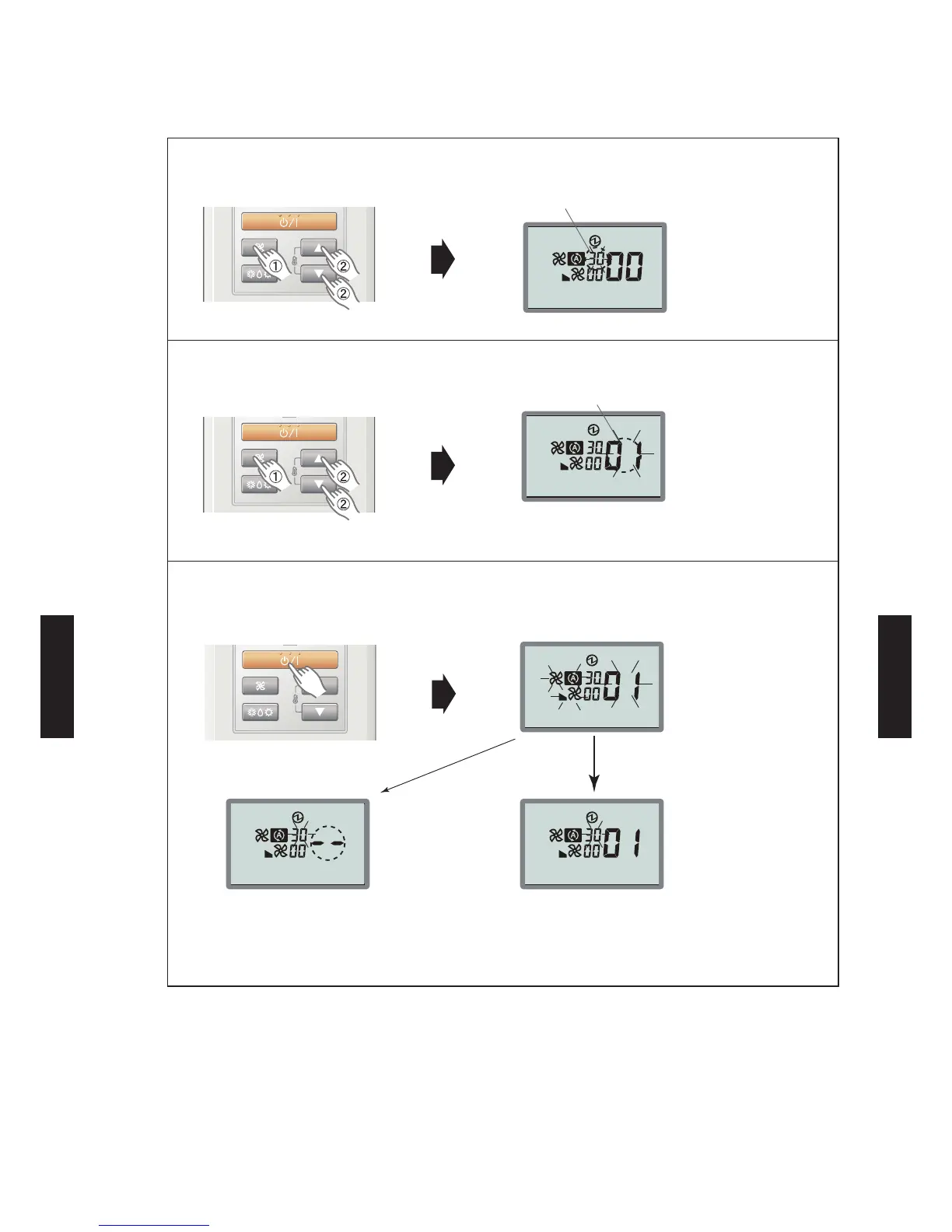

Ex.) Function number : 30, Setting number : 01
Setting number
 Pressing the tarttop button conr the setting.
(The data will be transferred to the indoor unit.)
ERROR
When the data was correctly set up on the indoor
unit.
When the data was not set up on the indoor 
unit "--" is displayed.
Set up the data again according to the 
procedure in step 3), 4) above.
GOOD
FUNCTION DETAILS

Refer to 5-6. FUNCTION DETAILS
- (06 - 82) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
