3. OUTDOOR UNIT & BRANCH BOX
BRANCH BOX3-2.
The branch box can be installed on a wall or suspended from the ceiling.


The branch box can be installed and set horizontally or vertically.


Proide a serice hoe or aintenance and inspection purposes as shown in the gure


below.
It is not necessary to perform any draining procedures on the branch box.


The slope of the top side must be within ±5° in all directions of the horizontal plane.


Use M8 or M10 for the bolt size when hanging.



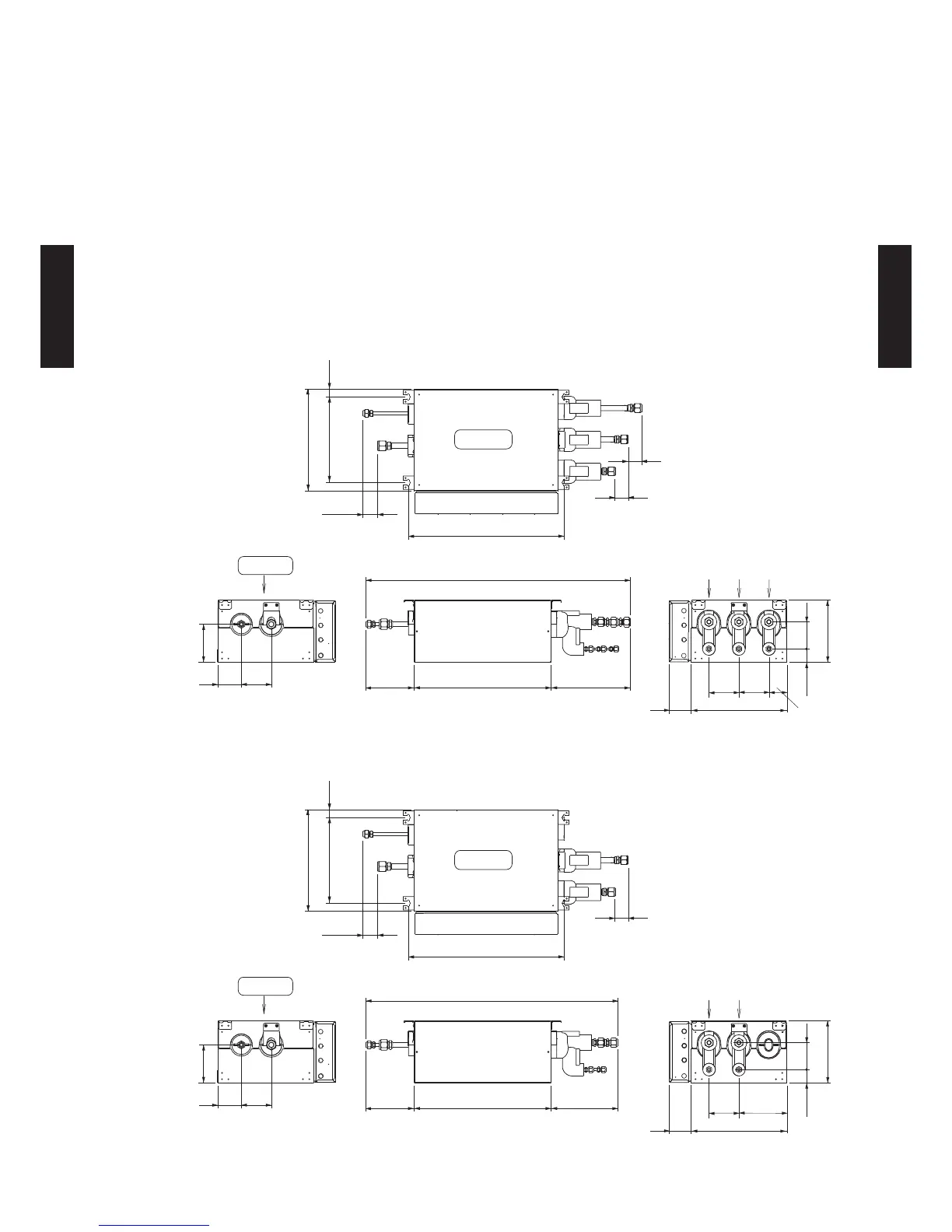

HORIZONTAL INSTALLATION3-2-1.
Be sure to install so that the top side faces up.
44
Top side
469
Hanger bolt pitch
Hanger bolt pitch
256
304
24
Top side
Outdoor unit side
Indoor unit side
(838)
433
154
251
(304)
120
195
69
UNIT A UNIT B UNIT C
40
40
75 95
85
42
57
95 95
[3 branches type]
44
Top side
469
Hanger bolt pitch
Hanger bolt pitch
256
304
24
Top side
Outdoor unit side
Indoor unit side
(798)
433
154
211
(304)
120
195
69
UNIT A UNIT B
40
75 95
85
42
95 152
[2 branches type]
Unit : mm
- (03 - 08) -
OUTDOOR UNITS OUTDOOR UNITS

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
