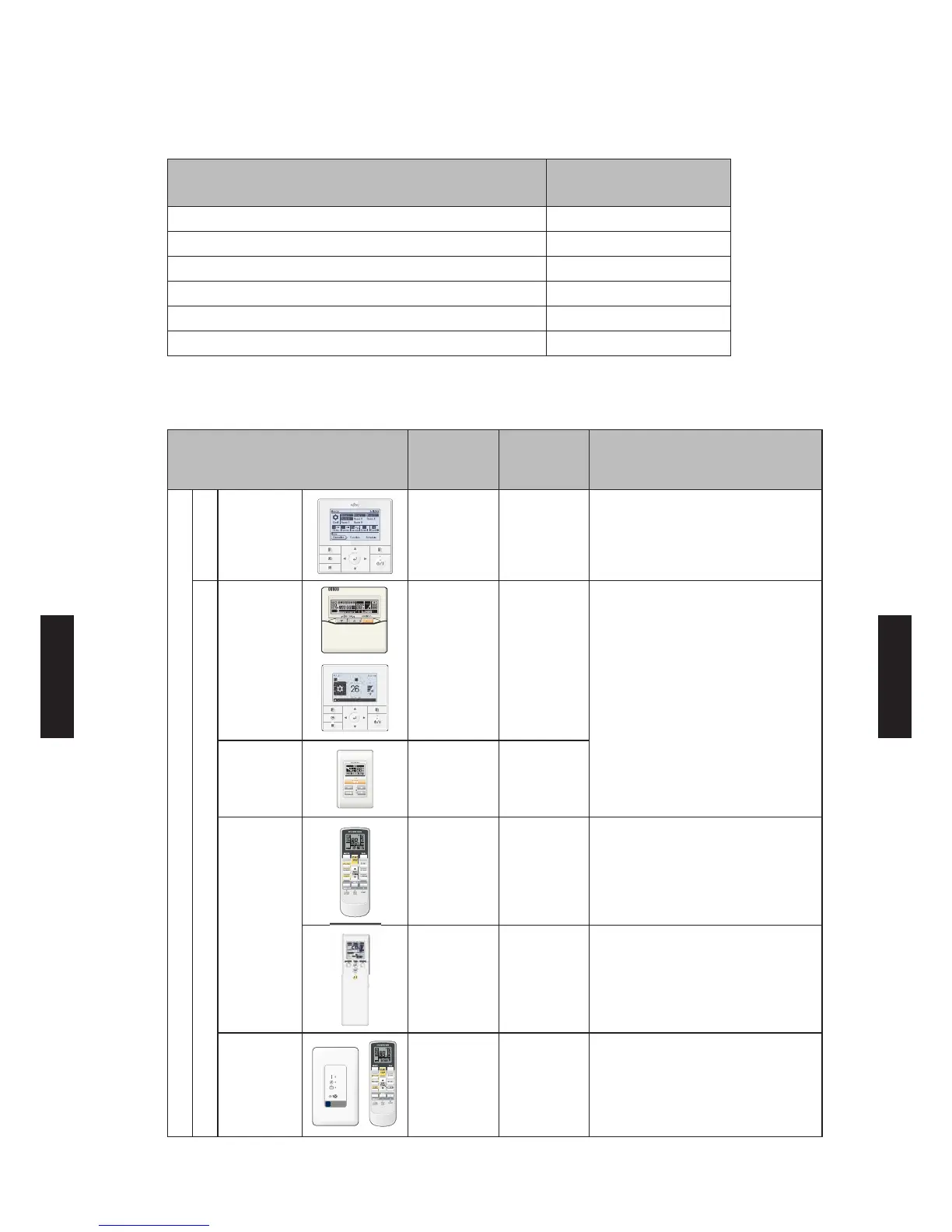

6. SYSTEM DESIGN
WIRING SYSTEM1-3.
MAXIMUM WIRING LENGTH

Transmission line
Maximum wiring length
m
Between outdoor unit and branch box 75
Between branch box and indoor unit 75
Between branch box and branch box 75
Between branch box and Central remote controller 500
Between indoor unit and Wired R.C. or Simple R.C. 500
Between indoor unit and IR Receiver unit 5
CONTROLLER

Maximum
connectable
units in one
multi system
Individually
controllable
indoor units
Remarks
Controller
Central Control
Central remote
controller
1 8
Individual Control
Wired Remote
Controller
16 (*1) 1
*1: One indoor unit can be connected
to 2 wired remote controllers (Wired
remote controller or Simple remote
controller).
Simple Remote
Controller
16 (*1) 1
Wireless
Remote
Controller
- 1
- 1
IR Receiver
unit
8 (*2) 1
*2: One indoor unit can be connected
to 1 IR receiver unit.
- (06 - 08) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
