Fujitsu ABHG18LVTB User Manual

4. INDOOR UNITS
FLOOR TYPE1-5.
MODELS : AG


G09LVCA, AG

G12LVCA, AG

G14LVCA

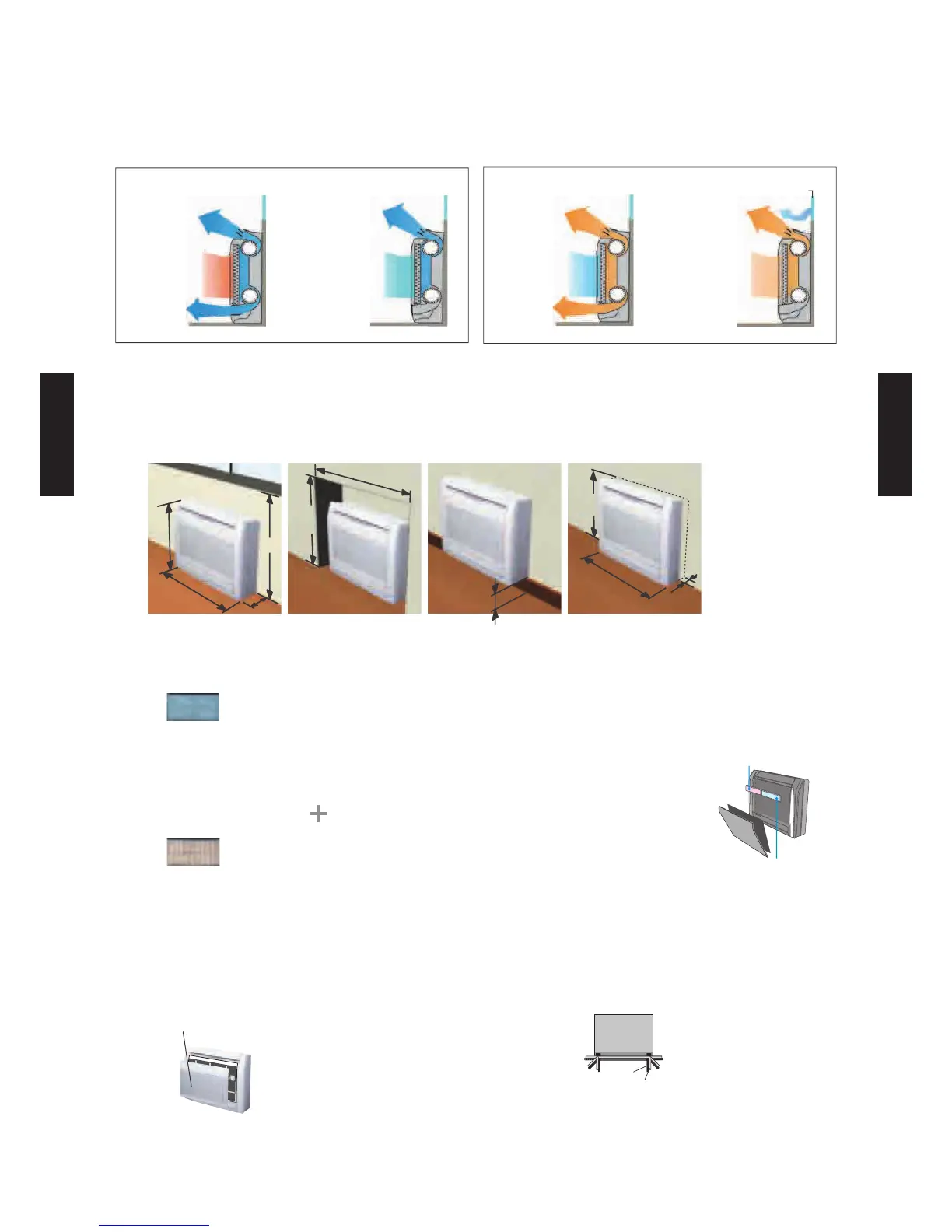

FEATURES

an  ide airow

Cooling
at operation
start
Prevents cold air
from falling
at stable
operation
at operation
start
Heating WindowPrevents cold
draft from
window
at stable
operation
Flexible & easy installation

Beneath
standard window
Standard concave
portion
Wall
Half concealed
(Optional parts necessary)
Min.
700
Min.
590
Min.940
Max. 150
Min. 730
Max.
80
600
740
200
700
nit 
Filter features

ongie ion deodoriation ter
he ter deodories b poweru decoposing absorbed odors using the oidiing and
reducing eects o ions generated b the utranepartice ceraic.
 he ter can be used or appro.  ears i it is washed under water to restore its surace
action when it is dirt.
sing dierent ters at both sides
ppecatechin ter
ine dust inisibe od spores and haru icroorganiss are
absorbed onto the ter b static eectricit and urther growth is inhibited
and deactiated b the popheno etracted ro appes.
Easy maintenance

ashabe and reoeabe pane
Removable panel
Flexible piping connection

 direction o drain  piping
Back view
Drain hose
Piping
1
6
2
5
3
4
Apple-catechin
Filter
Ion Deodorization
Filter
    
INDOOR UNITS INDOOR UNITS

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
