5. CONTROL SYSTEM
MAIN FUNCTIONS


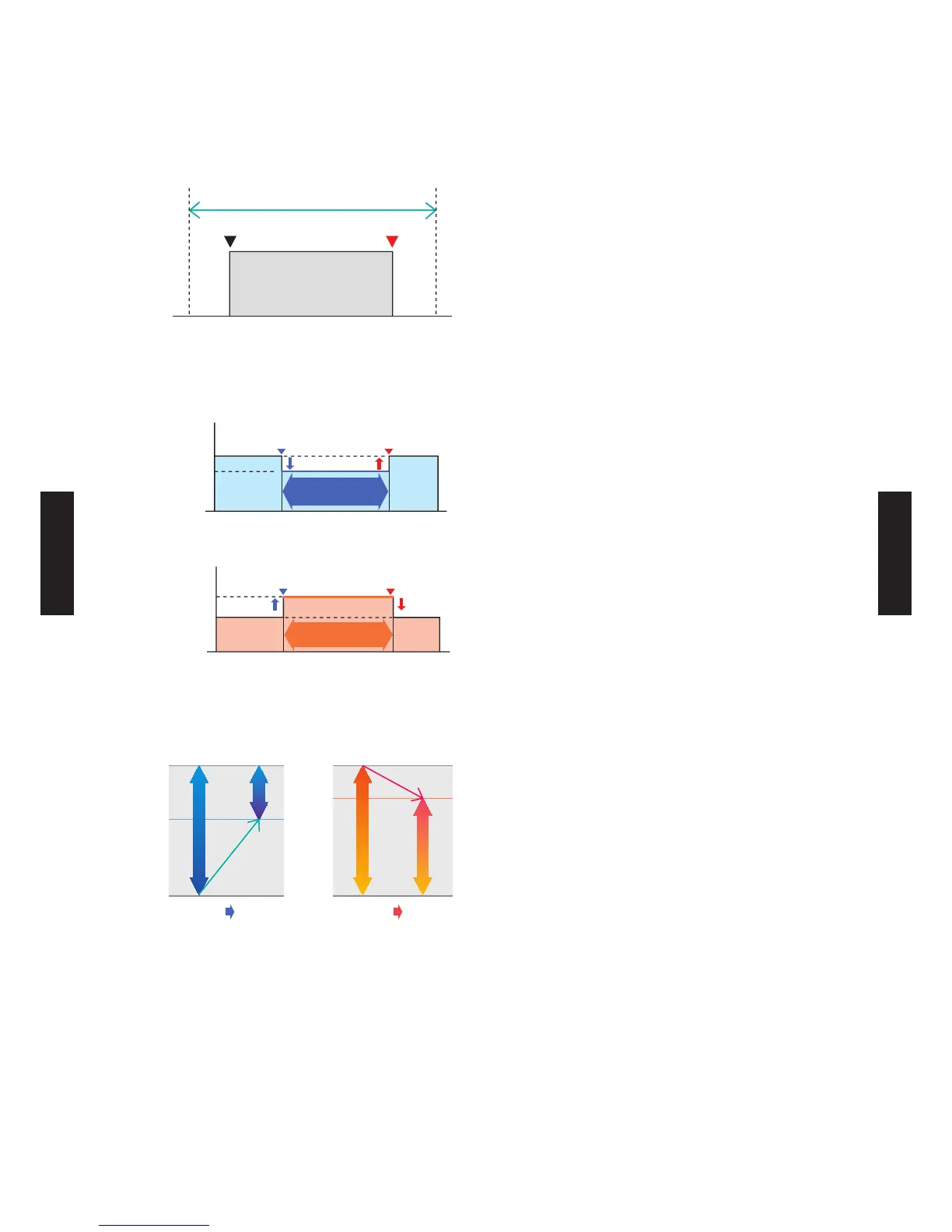

Auto off timer

The indoor unit automatically turns 
off after a set time has passed.
The time interval for which auto off 
works can be set.
Ex) At interval time hour (17:00 to 24:00) to prevent
forgetting to turn off
Set interval time hour (17:00 to 24:00)
Set off time
(30 to 240 minutes)
17:00 24:00
ON Auto OFF
OFF
Set temperature auto return

The setting temperature automatically 
returns to the previous setting
temperature.
The time range in which the set 
temperature can be changed is 30 to
120 minutes.
Setting temp.
Cooling operation
24
22
Set temperature change Auto return
11:40 13:40
Time
Settable time range
30 to 120 minutes
Setting temp.
Heating operation
Set temperature change Auto return
11:40 13:40
Time
Settable time range
30 to 120 minutes
(°C)
25
23
(°C)
Set temperature upper and lower limit setting

The set temperature range can be 
set for each operation mode.
(Cooling / Heating / Auto)
Original temp.
setting range
Lower limit
setting
During Cooling
30
25
18
Original temp.
setting range
Upper limit
setting
During Heating
(°C)
30
25
16
(°C)
- (05 - 14) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
