5. CONTROL SYSTEM

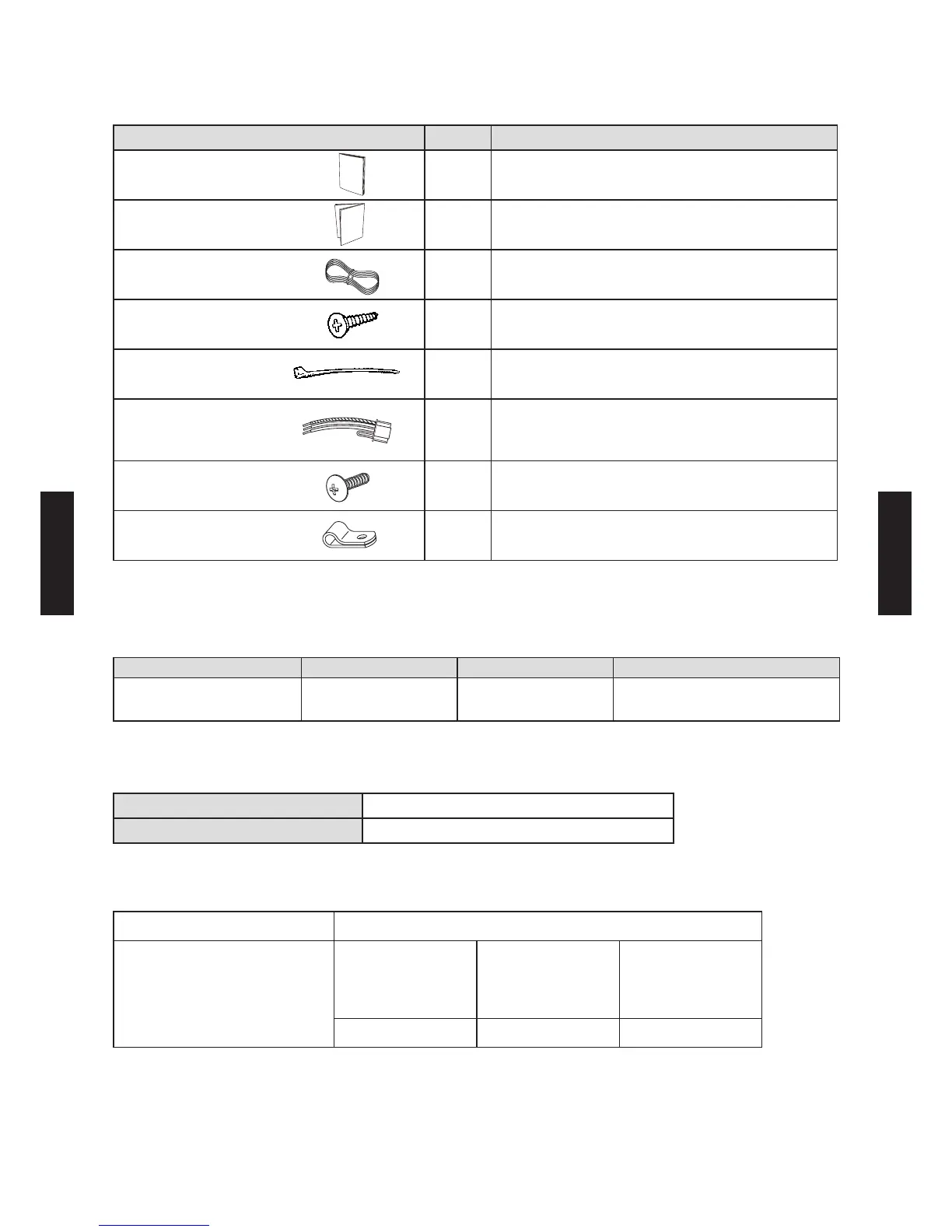

PACKING LIST

Name and shape Quantity Application
Operating manual 1
Installation manual 1
Remote controller cable
(10m)
1
For connecting the remote controller
Screw
(M4 x 16mm)
2
For installing the remote controller
Cable tie 1
To tie the remote controller and cables
Connecting cable *1 1
For connecting the remote controller cable to the Wall
mounted type indoor unit
Screw *1
(M4 x 14mm)
1
For installing the remote controller cable to the
indoor unit
Cable clamper *1 1
For installing the remote controller cable to the indoor
unit
*1:
se on i the reote controer cabe ust be odied or the indoor unit ode.
WIRING SPECIFICATIONS

Use Cable size Wire type Remarks
Remote controller
cable
0.33 mm
2
(22AWG)
Polar 3 core Use sheathed PVC cable
SPECIFICATIONS

Dimensions [H x W x D]: (mm) 120 x 120 x 18
Weight: (g) 160
PART (OPTIONAL)

Wall mounted type
Model name
AS

G07LJCA
AS

G09LJCA
AS

G12LJCA
AS

G07LUCA
AS

G09LUCA
AS

G12LUCA
AS

G14LUCA
AS

G07LMCA
AS

G09LMCA
AS

G12LMCA
AS

G14LMCA
UT Y-XCBX Z1 UTY-TWBXF UTY-XCBX Z2
*The communication kit is necessary for connecting the wired remote controller to the Wall mounted type.
- (05 - 30) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
