Fujitsu ABHG18LVTB User Manual

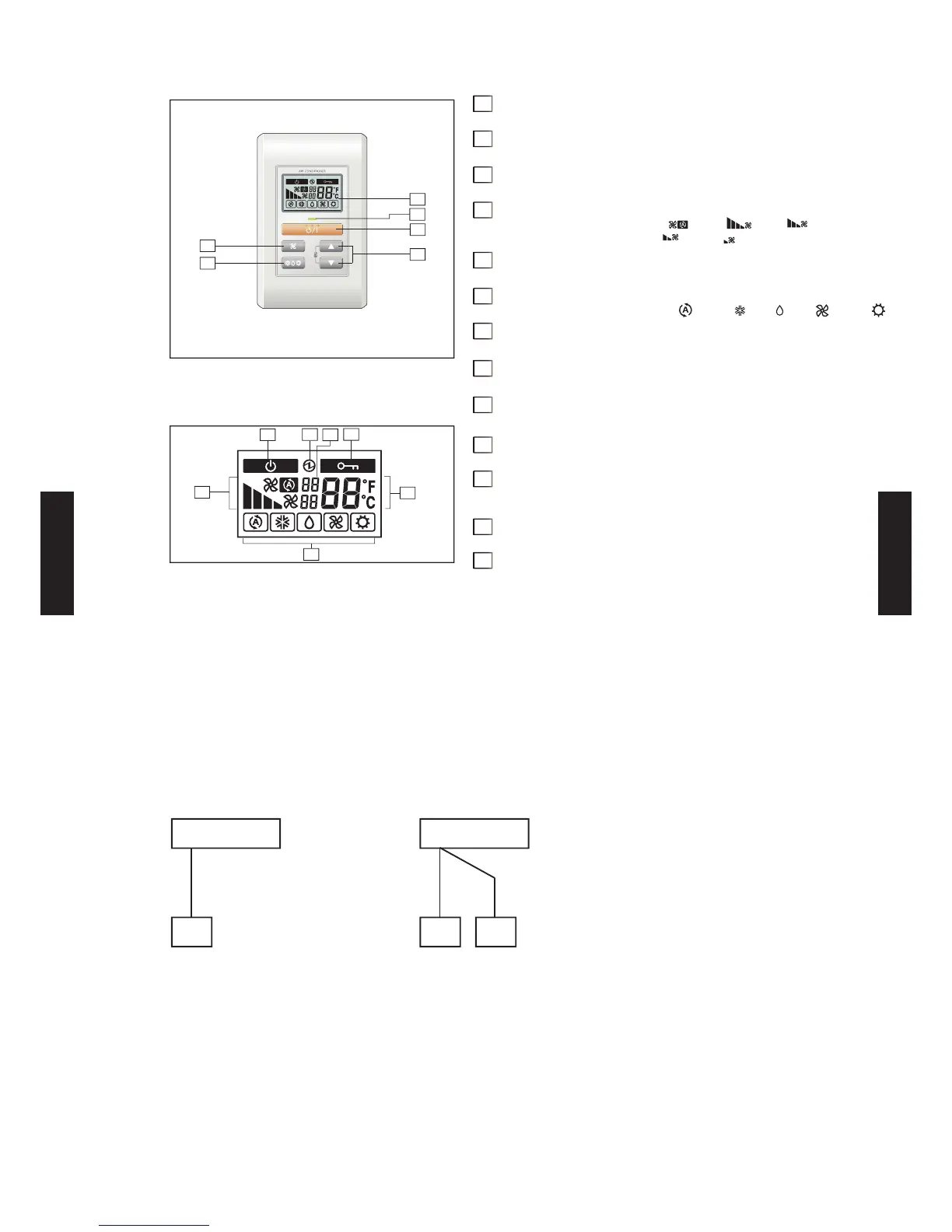

5. CONTROL SYSTEM
FUNCTIONS

Display panel
6
5
4
1
2
3
7
8
9
10
11
12
13
*1: during Error code history display mode.
*2: during address display mode.
*3: during self Diagnosis mode.
SYSTEM DIAGRAM

1 remote controller


2 remote controllers
A , B , C : Remote controller cable.
A
<
=
500m ; B+C
<
=
500m
Indoor unit
Remote controller
A
Remote controllers
Primary
Secondary
Indoor unit
BC
Note: Some button operations may not be available for all units
or systems. For details, please see operation manual.
Start/Stop button1
Pressed to start and stop operation.
Display background light2
Lights during operation.
Operation lamp3
Lights during operation.
Fan button4
Selects the fan speed (AUTO , HIGH , MED ,
LOW
,
QUIET ).
Set temp. button5
Selects the setting temperature.
Mode button6
Selects operating mode (AUTO , COOL , DRY ,FAN , HEAT
).
Standby indicator7
Indicates oil recovery and defrosting operation.
Power source indicator8
Indicates the main power ON.
Central control indicator9
Indicates when function is locked.
Fan speed indicator10
Set temperature indicator11
Indicates error history number. *1
Indicates Indoor unit address. *2
Operating mode indicator12
(Upper) Indicates the error code *1 *313 / the refrigerant
system address. *2
(Lower) Indicates the remote controller address. *1 *2 *3
- (05 - 32) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
