5. CONTROL SYSTEM
FUNCTIONS (AR-REA2E)


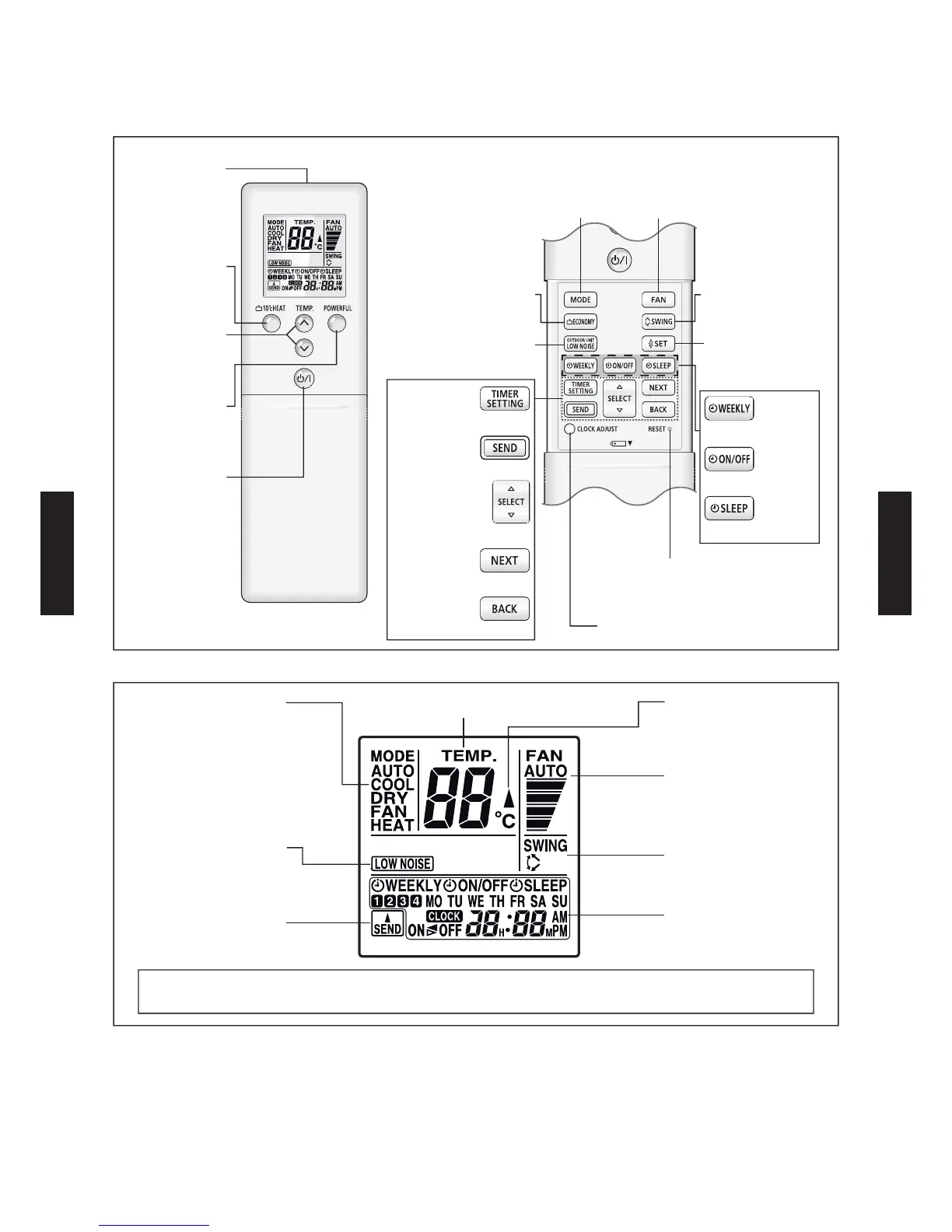

Display panel
Note: Some button operations may not be available for all units or systems.
For details, please see operation manual.
Signal
Transmitter
10 °C HEAT
button
TEMP. button
POWERFUL
button
Start / Stop
button
MODE button
ECONOMY button
OUTDOOR UNIT
LOW NOISE button
SWING button
TIMER SETTING button
SEND button
SELECT button
NEXT button
BACK button
SET button
WEEKLY button
ON/OFF button
SLEEP button
FAN button
CLOCK ADJUST button
RESET button
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actual
operation, however, the indicator will only show those indicators appropriate to the current operation.
Mode Indicator
Low Noise Mode
Indicator
Clock & Timer
Indicator
Send Indicator
Temperature Indicator
Transmit Indicator
Fan Speed Indicator
Swing Indicator
- (05 - 43) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
