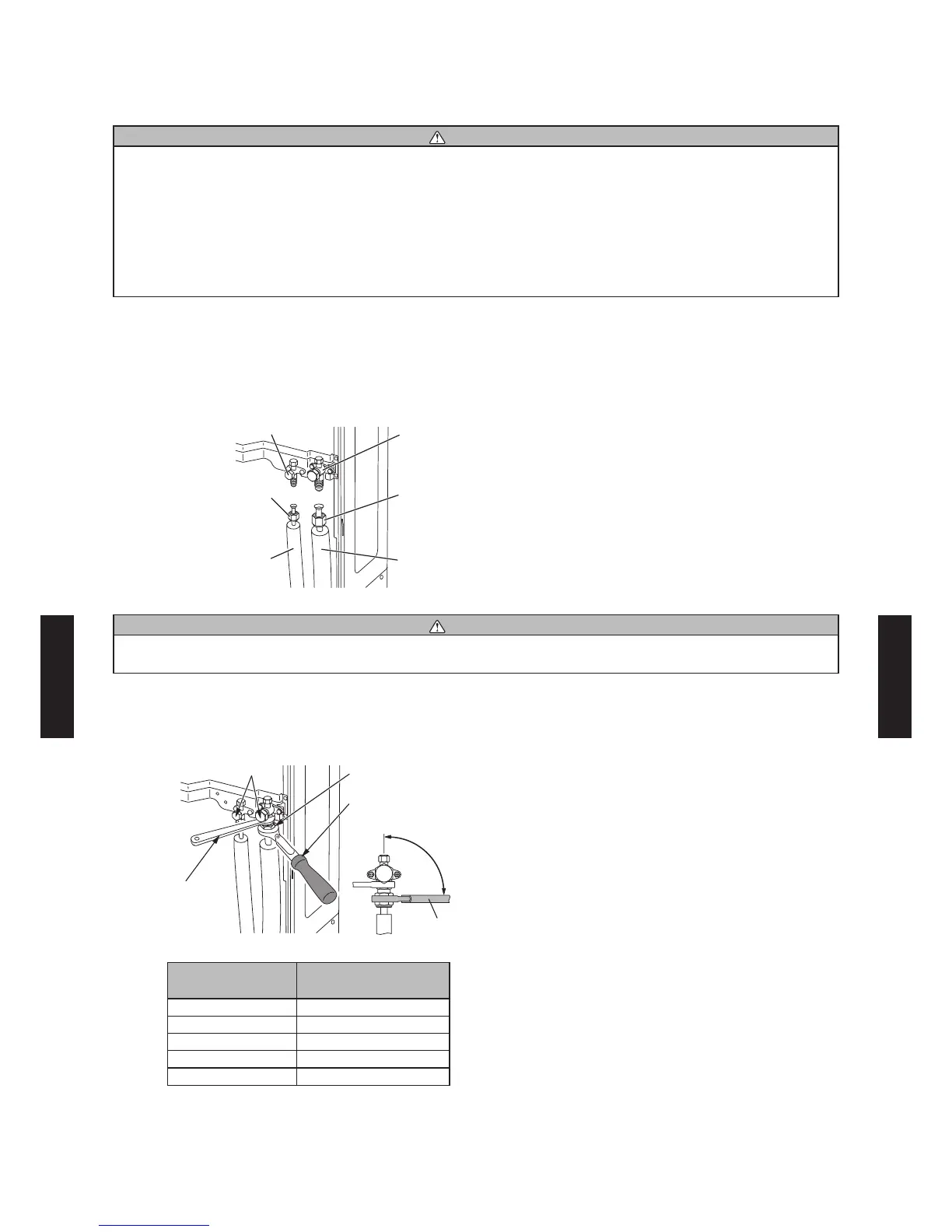

6. SYSTEM DESIGN
PIPE CONNECTION

CAUTION
Be sure to install the pipe against the port on the indoor unit and the outdoor unit correctly. If the 
centering is improper, the flare nut cannot be tightened smoothly. If the flare nut is forced to turn,
the threads will be damaged.
Do not remove the flare nut from the outdoor unit pipe until immediately before connecting the 
connection pipe.
After installing the piping, make sure that the connection pipes do not touch the compressor or 
outer panel. If the pipes touch the compressor or outer panel, they will vibrate and produce noise.
(1) Detach the caps and plugs from the pipes.
 enter the pipe against the port on the outdoor unit and then turn the are nut b hand.
 ighten the are nut o the connection pipe at the outdoor unit ae connector.
 ter tightening the are nut b hand use a torue wrench to u tighten it.
3-way valve
(Liquid)
Connection pipe
(Liquid)
Connection pipe
(Gas)
3-way valve
(Gas)
Flare nut
Flare nut
CAUTION
Hold the torque wrench at its grip, keeping it in a right angle with the pipe, in order to tighten the 
flare nut correctly.
Outer panel may be distorted if fastened only with a wrench. Be sure to fi x the elementary part
with a spanner and fasten with a wrench (refer to below diagram).
Do not apply force to the blank cap of the valve or hang a wrench, etc., on the cap. It may cause 
leakage of refrigerant.
90°
Holding
wrench
Blank cap
Flare nut
Torque wrench
Torque wrench
Flare nut
[mm (in.)]
Tightening torque
[N·m]
6.35 (1/4) dia. 16 to 18
9.52 (3/8) dia. 32 to 42
12.70 (1/2) dia. 49 to 61
15.88 (5/8) dia. 63 to 75
19.05 (3/4) dia. 90 to 110
- (06 - 28) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
