6. SYSTEM DESIGN
POWER SUPPLY CABLE WIRING

Caution
Except for EMERGENCY, never turn off main as well as sub breaker of the indoor units during 
operation. It will cause compressor failure as well as water leakage.
First, stop the indoor unit by operating the control unit or external input device and then cut the 
breaker.
Make sure to operate through the control unit or external input device.
When the breaker is designed, locate it at a place where the users cannot start and stop in an 
ordinary manner.
Regulation of wire size and circuit breaker differs from each locality, please refer to and be in 
accordance with local rules.

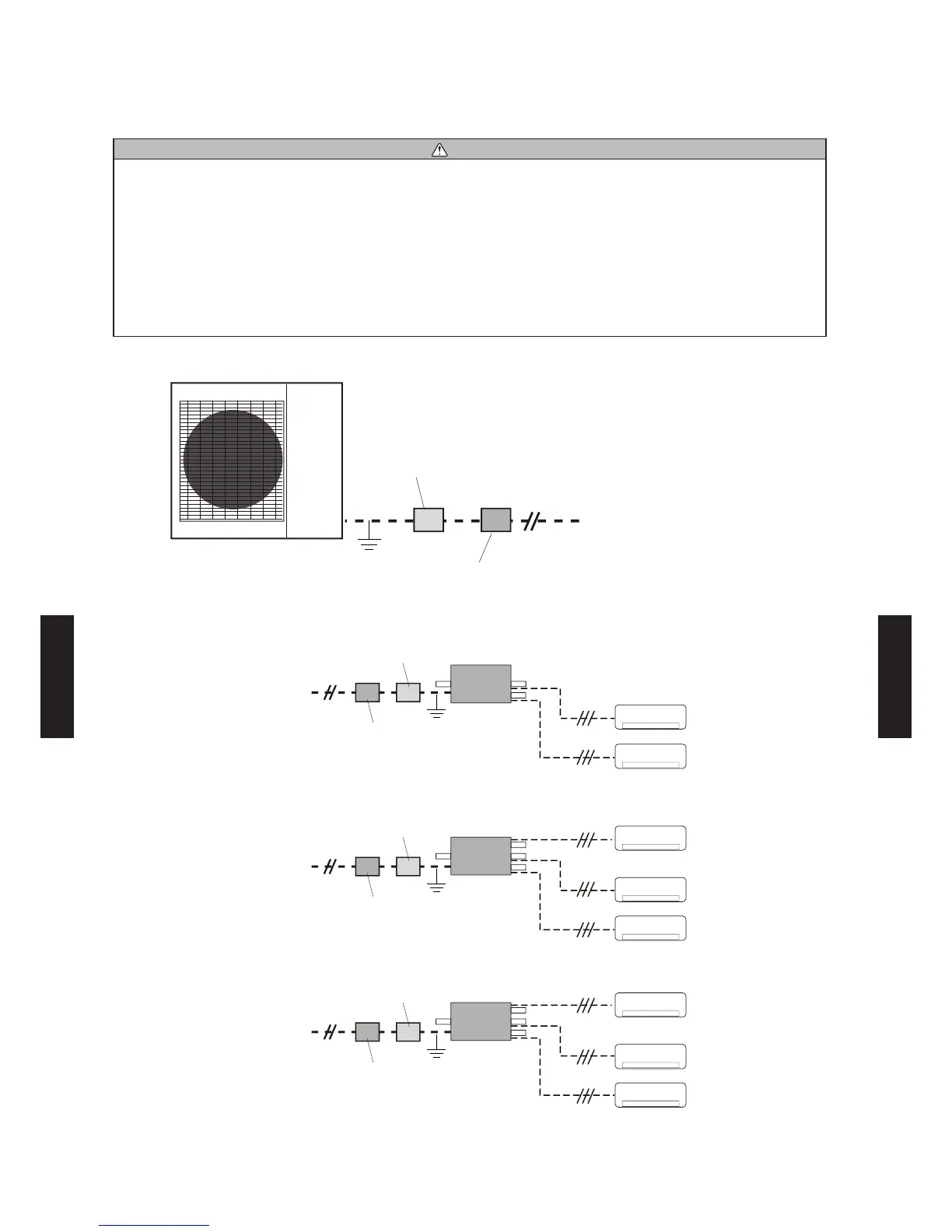

Example 1 (Outdoor unit)

Outdoor unit
Power supply
1ø 230V 50Hz
Earth leakage breaker
Outdoor unit
Circuit breaker (over current)
Example 2 (Branch box & indoor unit)

Earth leakage
breaker
Branch box
Indoor units
Branch box
Branch box
Earth leakage
breaker
Earth leakage
breaker
Circuit breaker
(over current)
Circuit breaker
(over current)
Circuit breaker
(over current)
Branch box - Indoor unit
Power supply
1ø 230V 50Hz
Branch box - Indoor unit
Power supply
1ø 230V 50Hz
Branch box - Indoor unit
Power supply
1ø 230V 50Hz
- (06 - 41) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
