Fujitsu ABHG18LVTB User Manual

6. SYSTEM DESIGN
REMOTE CONTROLLER CUSTOM CODE SETTING

According to the following instructions, please set the custom code setting of the Wireless remote
controller to match any changes in the custom code setting of the indoor unit.
(Note that the air conditioner cannot receive a signal if the right custom codes has not been set.)

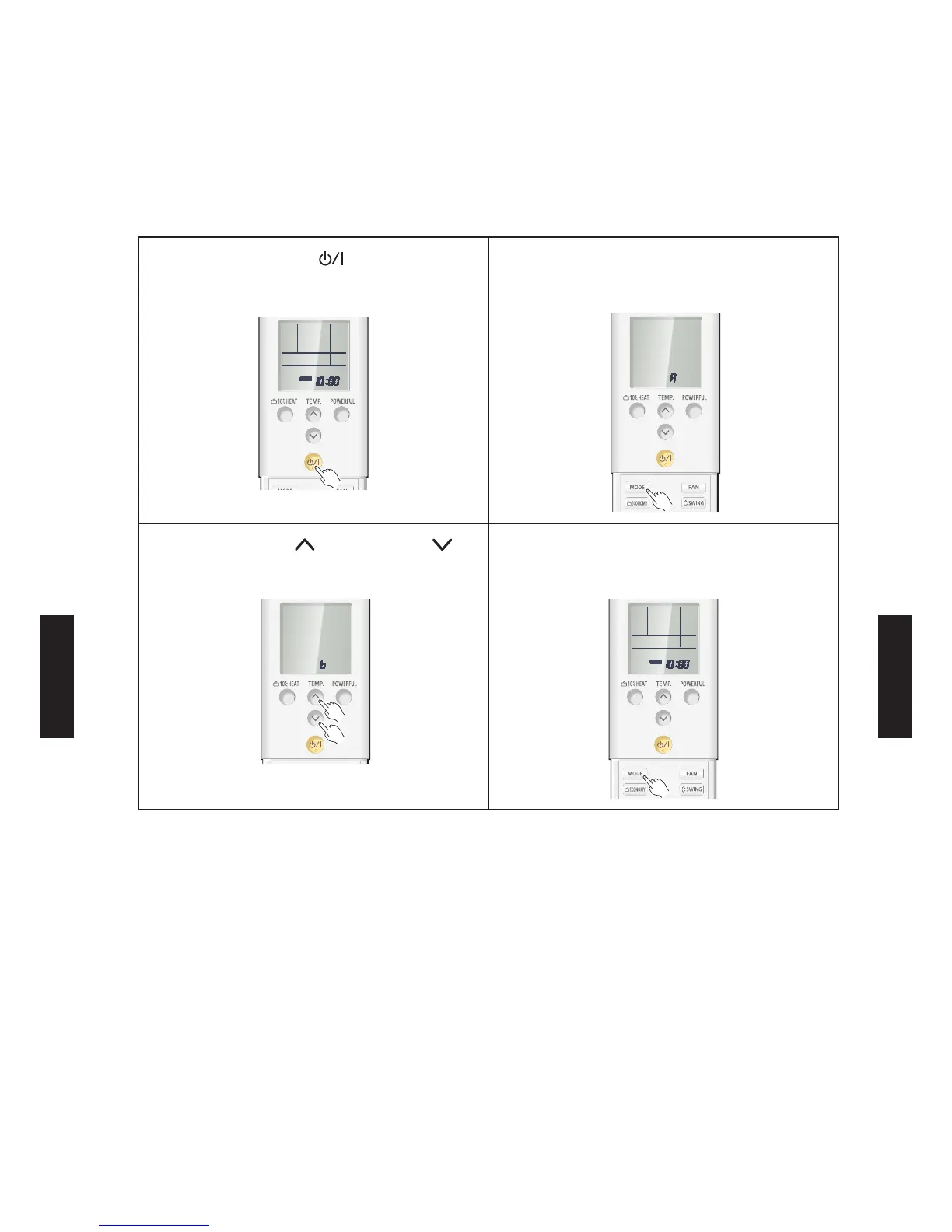

1. Press the Start/Stop “ ” button until only
the clock is displayed on the remote controller
display.
2. Press the "MODE" button for at least 5
seconds to display the current custom code
(initially set to "A")
3. Press the “TEMP.
” or the “TEMP. ”
button to change the custom code between
bcd.
4. Press the "MODE" button again to return to
the clock display. The custom code will be
changed.
If no buttons are pressed within 30 seconds after the  custom code is displayed, the system
returns to the original clock display. In this case, start again from step 1.
The air conditioner
 custom code is set to "A" prior to shipment.
The remote controller resets to  custom code "A" when the batteries in the remote controller are
replaced. If you use a custom code other than custom code "A", reset the custom code after
replacing the batteries. If you do not know the air conditioner custom code setting, try each of
the custom codes bcd unti ou ind the code which operates the air conditioner.
- (06 - 72) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
