2. MODEL SELECTION

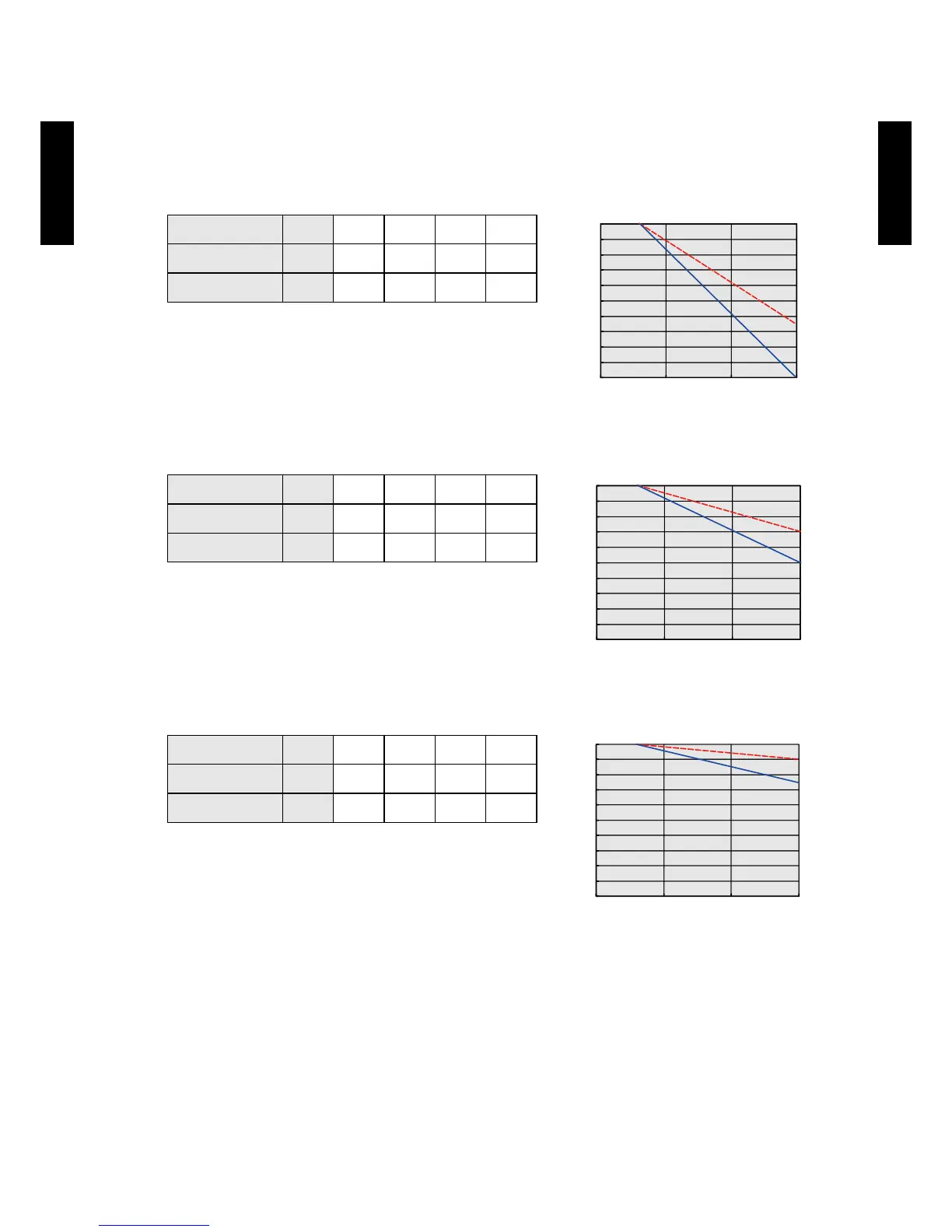

CAPACITY CHANGE RATE BY BRANCH PIPING LENGTH

Change rate in capacity

Refrigerant piping connection diameter: Liquid ø6.35mm, Gas ø9.52mm


Indoor unit model code: 07 / 09 / 12


Branch piping
length
m3 510 15
Change rate in
cooling capacity
% 100 98.3 94.2 90.0
Change rate in
heating capacity
% 100 98.9 96.2 93.5
Refrigerant piping connection diameter: Liquid ø6.35mm, Gas ø12.70mm


Indoor unit model code: 14 / 18


Branch piping
length
m3 510 15
Change rate in
cooling capacity
% 100 99.2 97.1 95.0
Change rate in
heating capacity
% 100 99.5 98.3 97.0
Refrigerant piping connection diameter: Liquid ø6.35mm, Gas ø15.88mm


Indoor unit model code: 24


Branch piping
length
m3 510 15
Change rate in
cooling capacity
% 100 99.6 98.5 97.5
Change rate in
heating capacity
% 100 99.9 99.5 99.0
Change rate in capacity (%)
Branch piping length
Heating
Cooling
0 5
90
95
100
10 15 (m)
Change rate in capacity (%)
Branch piping length
Heating
Cooling
0 5
90
95
100
10 15 (m)
Change rate in capacity (%)
Branch piping length
Heating
Cooling
0 5
90
95
100
10 15 (m)
- (02 - 16) -
MODEL SELECTION MODEL SELECTION

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
