Fujitsu ABHG18LVTB User Manual

6. SYSTEM DESIGN
ERROR STATUS OUTPUT

Compact
Cassette
Slim Duct
Wall Mounted
Floor /
Ceiling
Floor
LJ LU / LM LF
Connector
- - -
CNB02
- - -
An air conditioner error status signal can be output.

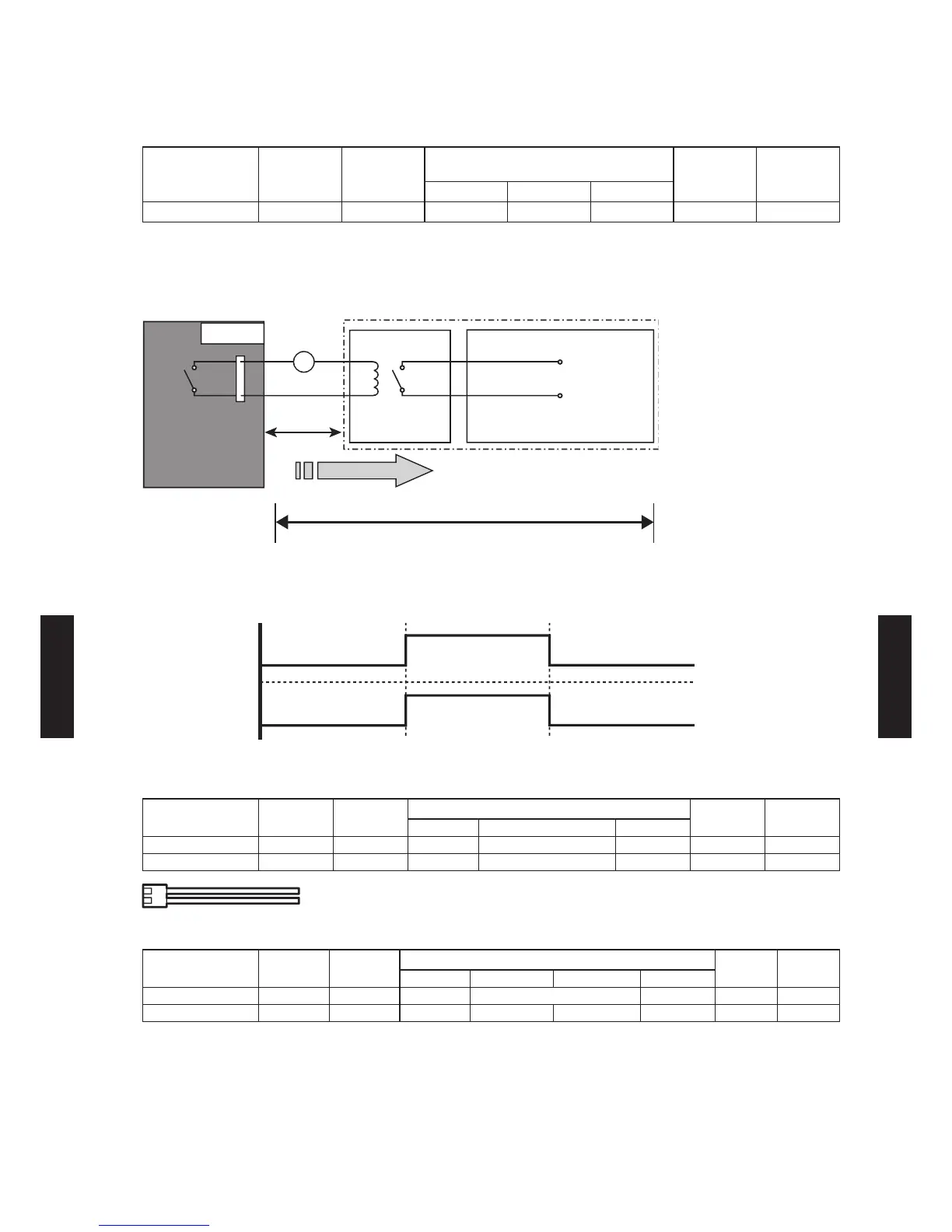

Circuit diagram example

*1 PC board of Communication kit is used for Wall mounted type..
*2 Make the distance from the PC board to the connected unit within 10 m.
Relay spec.: Max. DC 24 V, 10 mA to less than 500 mA.

Parts (Optional)

Compact
Cassette
Slim Duct
Wall Mounted
Floor /
Ceiling
Floor
LJ LU / LM LF
Parts name - - - External connect kit - - -
Model name - - - UTY-XWZXZ5 - - -
Compact
Cassette
Slim Duct
Wall Mounted
Floor /
Ceiling
Floor
LJ LU LM LF
Parts name - - - Communication kit - - -
Model name - - - UTY-T WBXF UT Y-XCBXZ2 - - -
*For operating the EXTERNAL OUTPUT function, the Wall mounted type (LU, LM) requires the communication kit
(UTY-TWBXF, UTY-XCBXZ2) in addition to the wire (UTY-XWZXZ5).
Field supply
Ex.)Display
Indoor unit
control PC board *1
Connected unit
Ex.)Relay unit
1
2
Signal
Relay
power
supply
V
Connector
10 m *2
DC 24 V
ON
OFF
Error
Normal
Error status
Output signal
- (06 - 118) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
