Fujitsu ASYG12LMCA Design & Technical Manual

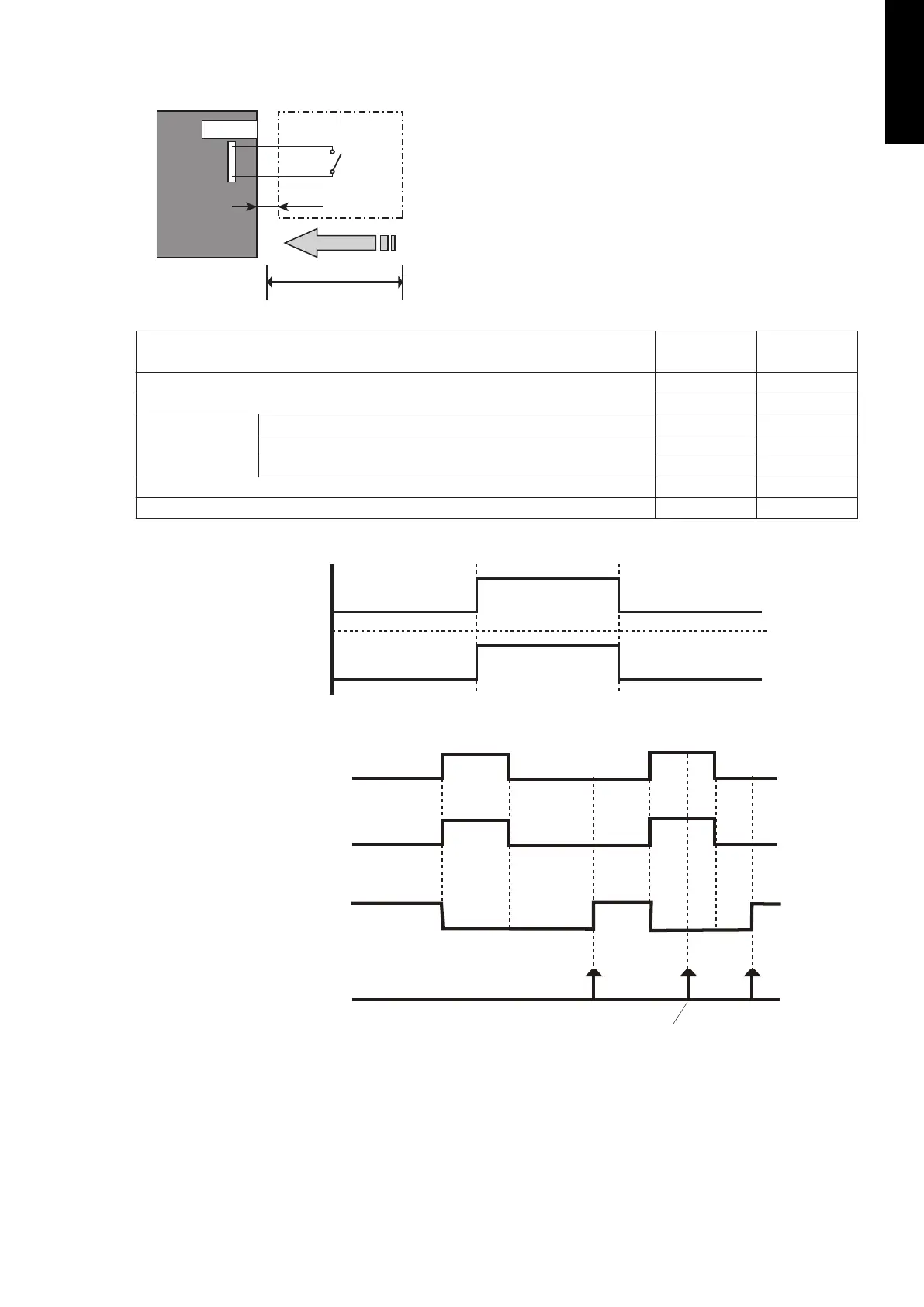

• Circuit diagram example
Indoor unit
control PCB*1
Example: Switch
Locally purchased
Connected unit
1
3
Signal
10 m*2
Connector
• Contact capacity: DC 24 V or more, 10 mA or more.
• *1: PCB of Communication kit is used for wall mount-
ed type (LU and LM).
• *2: Make the distance from the PCB to the connected
unit within 10 m.
• Use non-polar relays and switches.
Indoor unit type
1-pin 3-pin
(Polarity) (Polarity)
Compact cassette - +
Slim duct - +
Wall mounted
LU - +
LM - +
LF - +
Floor/Ceiling - +
Floor - +
– When function setting is "Operation/Stop" mode
Operation
Stop
On
Off
Input signal
Indoor unit
– When function setting is "Forced stop" mode
Remote controller
On On On
Input signal
Indoor unit
Command
Remote control
operation invalidity
On
Off
Operation
Stop
Forced stop
Normal
- 139 -
MULTI TYPE 5, 6 ROOMS TYPE
