Fujitsu ASYG12LMCA Design & Technical Manual

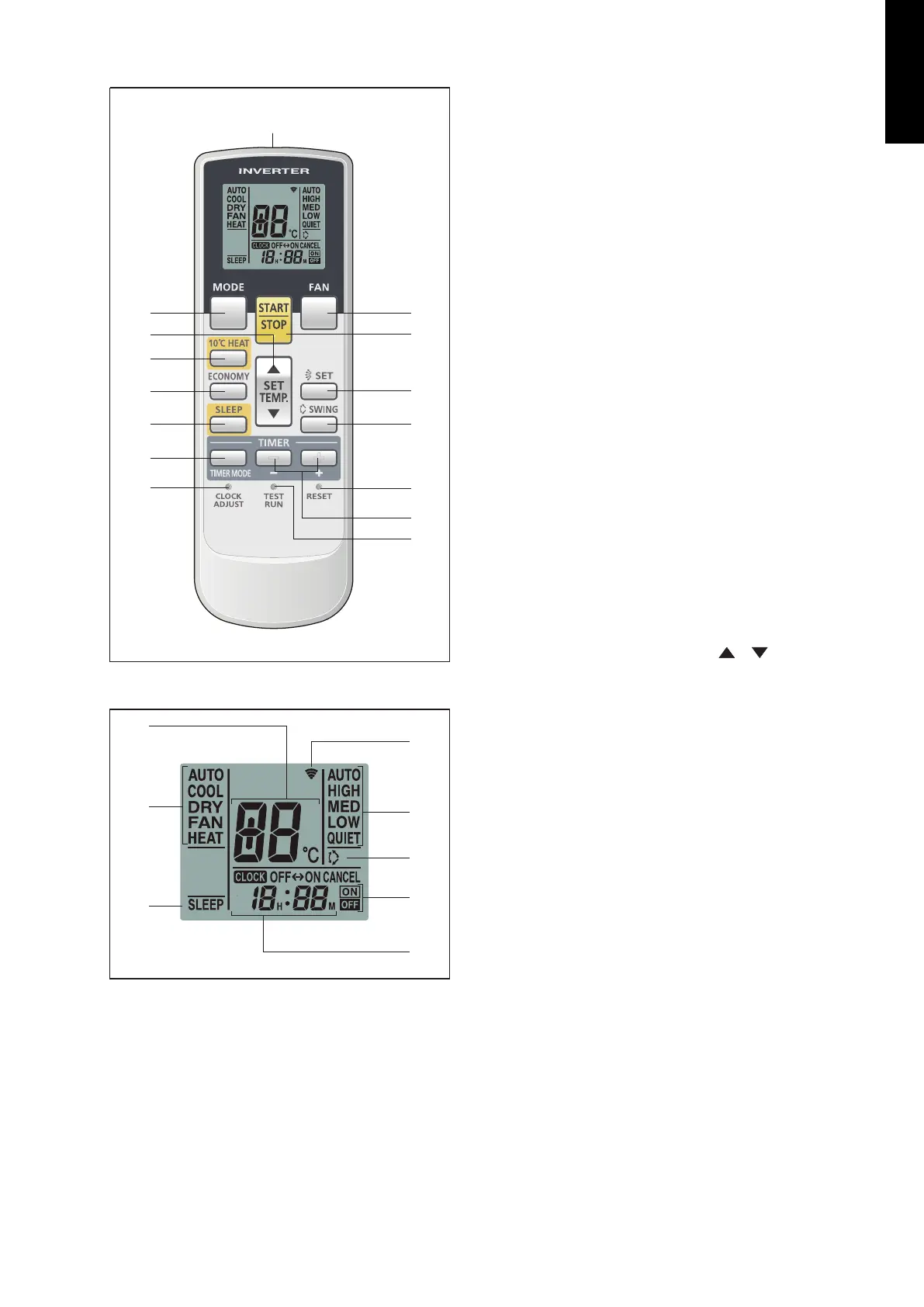

 AR-RAH1E
b
d
e
a
f
g
h
c
o
j
k
l
n
m
i
Display panel
q
r
s
t
u
v
w
p
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the oper-
ation manual.
a
FAN button
Selects the fan speed (AUTO, HIGH, MED, LOW, and
QUIET).
b START/STOP button
Starts and stops operation.
c SET button (vertical)
Adjusts the vertical airflow direction.
d SWING button
Sets the automatic swing operation and selects swing
mode (Left/right, Stop swing).
e RESET button
Used when replacing batteries.
f Timer set (- / +) button
Sets the current time and on-off time.
g TEST RUN button
Only used for the initial test in the unit installation.
h CLOCK ADJUST button
Used for adjusting the clock.
i TIMER MODE button
Selects the timer mode (off timer, on timer, program
timer, and timer reset).
j SLEEP button
Pressed to select sleep timer.
k ECONOMY button
l 10 °C HEAT button
m
SET TEMP. (temperature) ( / ) button
• Sets desired temperature.
• Sets remote controller custom code.
n MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN,
and HEAT).
• Starts/ends the remote controller custom code (max.
4 types) change.
o Signal transmitter
p Signal transmit indicator
q
Fan speed indicator
r Swing indicator
s Timer mode indicator
t Clock indicator
u Sleep indicator
v Operating mode indicator
w Temperature indicator
- 159 -
