Fujitsu ASYG12LMCA Design & Technical Manual

14-2. Mini duct type indoor unit (setting by DIP switch)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch100
1
Remote controller address setting
2
3
4
DIP switch101
1 Drainage function setting
2 Auto louver grille setting
3 Fan delay setting
¢ Component location

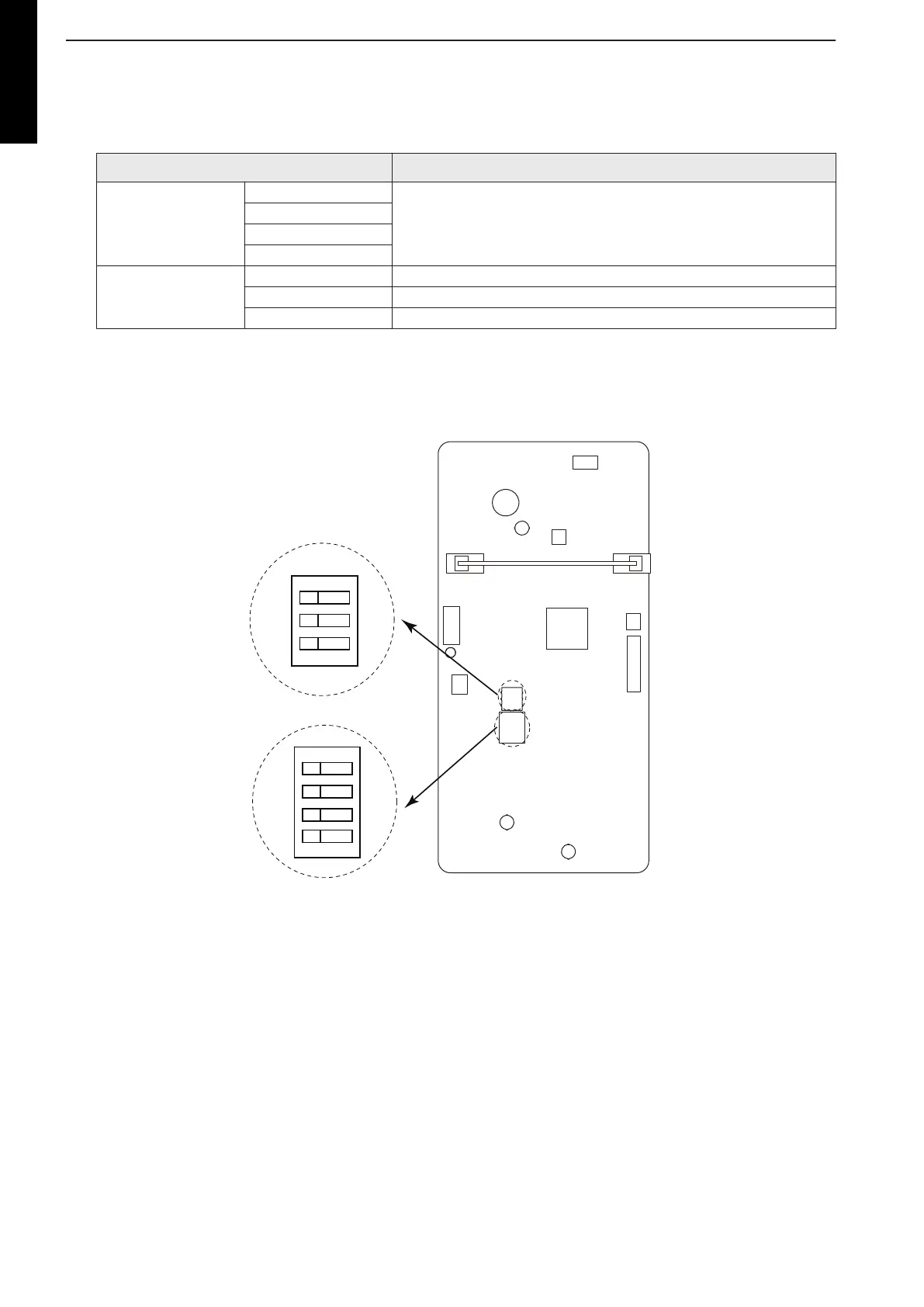

Components on the indoor unit main PCB used for the function settings are located as shown
in the following figure.
SW100
1
2
3
4
SW101
1
2
3
DESIGN & TECHNICAL MANUAL
- 200 -
MULTI TYPE 5, 6 ROOMS TYPE
