Fujitsu ASYG12LMCA Design & Technical Manual

5-6. Floor type
¢
Models: AGYG09LVCA, AGYG12LVCA, and AGYG14LVCA

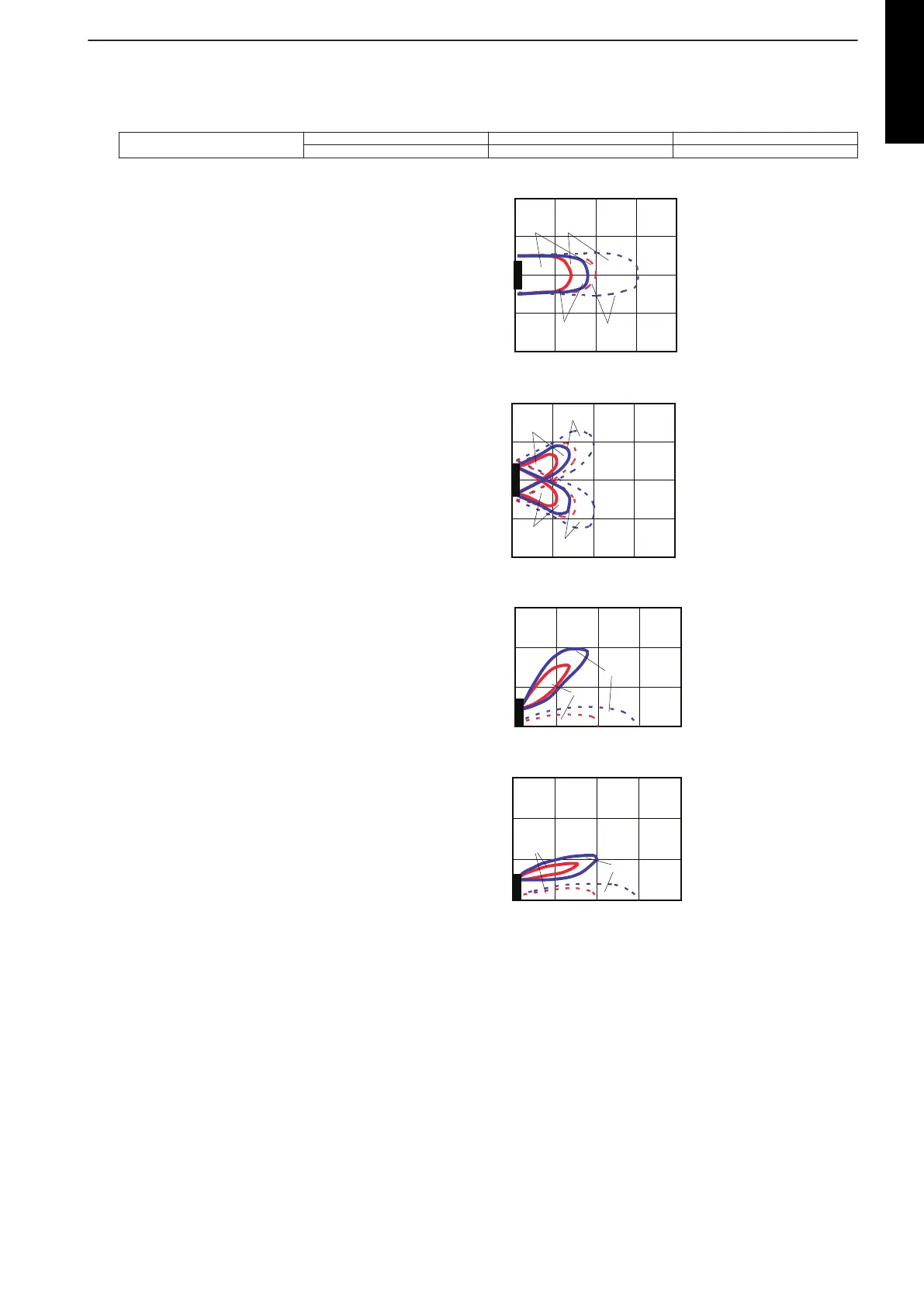

Measuring conditions
Fan speed Operation mode Fan select
HIGH FAN Upper and lower
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
1.0
0.5
UPPER LOWER
2
1
0
1
2
(m)
(m)
1
2
3
4
Unit: m/s
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
1.0
0.5
1.0
0.5
Unit: m/s
2
1
0
1
2
(m)
(m)
1
2
3
4
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
1.0
0.5
3
2
1
0
Unit: m/s
(m)
(m)
1
2
3
4
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
1.0
0.5
3
2
1
0
(m)
(m)
1
2
3
4
Unit: m/s
