Specifications

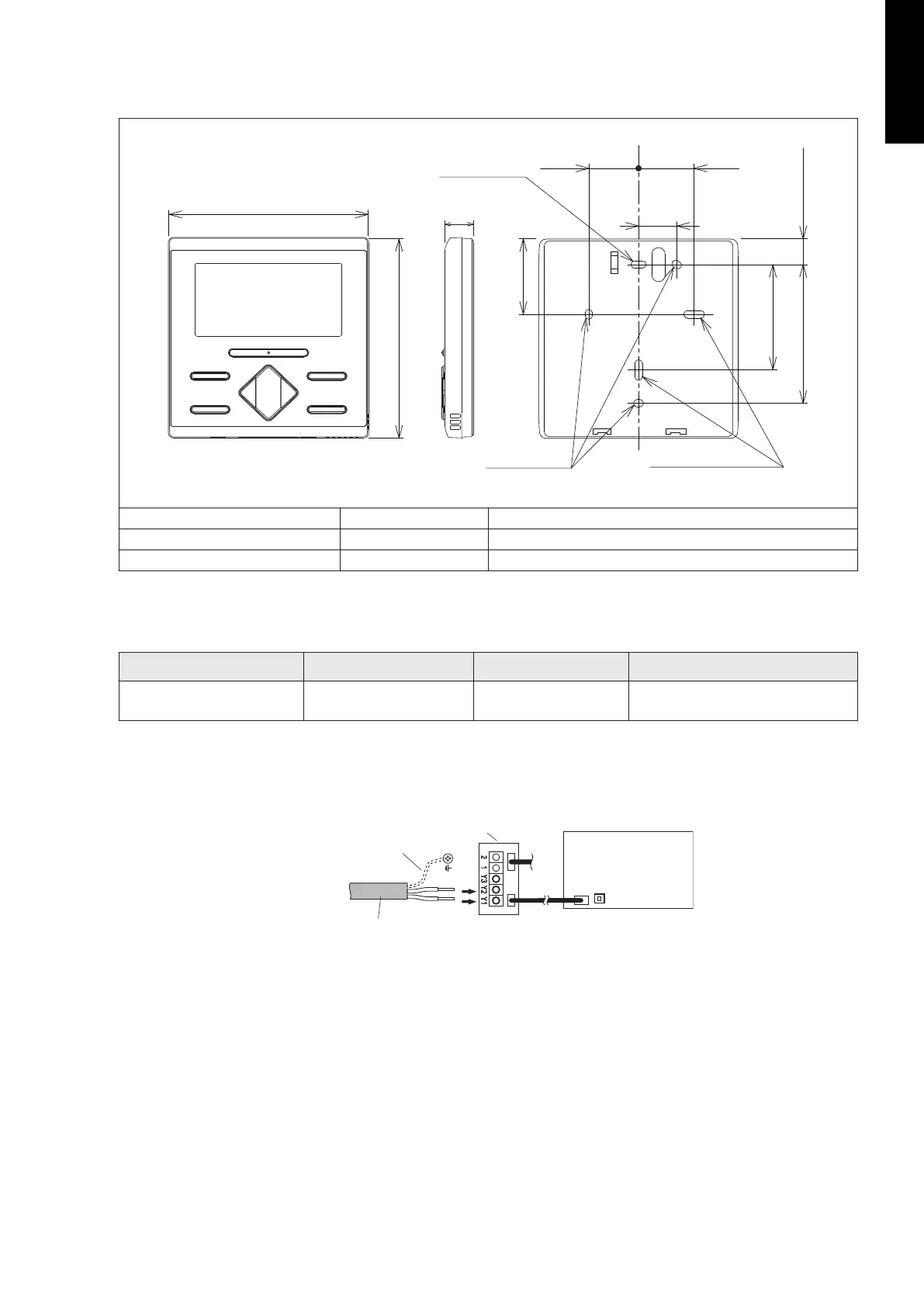

Dimensions and other specifications on the wired remote controller are as follows.
Unit: mm
Side view Rear viewFront view
Hole: 9 × 4.5
Hole: 6 × 4.5
Hole: 12.5 × 4.5
30 33
23
15.3
83.5
45.3
63.5
17
120
120
Size (H × W × D) mm 120 × 120 × 17
Weight g 170
Power V 12
 Wiring specifications
Use Cable size Wire type Remarks
Remote controller cable
0.33 to 1.25 mm
2
Non-polar 2-core,
Twisted pair
Use sheathed PVC cable.
¢
Installation
Connect the end of remote controller cable directly to the exclusive terminal block.
Terminal block
Functional earthing
(If necessary)
Remote controller cable
(Non-polar)
Indoor unit PCB
NOTES:
• Layout of terminal block and PCB varies depending on the type of indoor unit.
• Operation may fail if it is connected to the outdoor unit or the terminal block for power supply.
- 177 -
MULTI TYPE
5, 6 ROOMS TYPE
To Next Page
