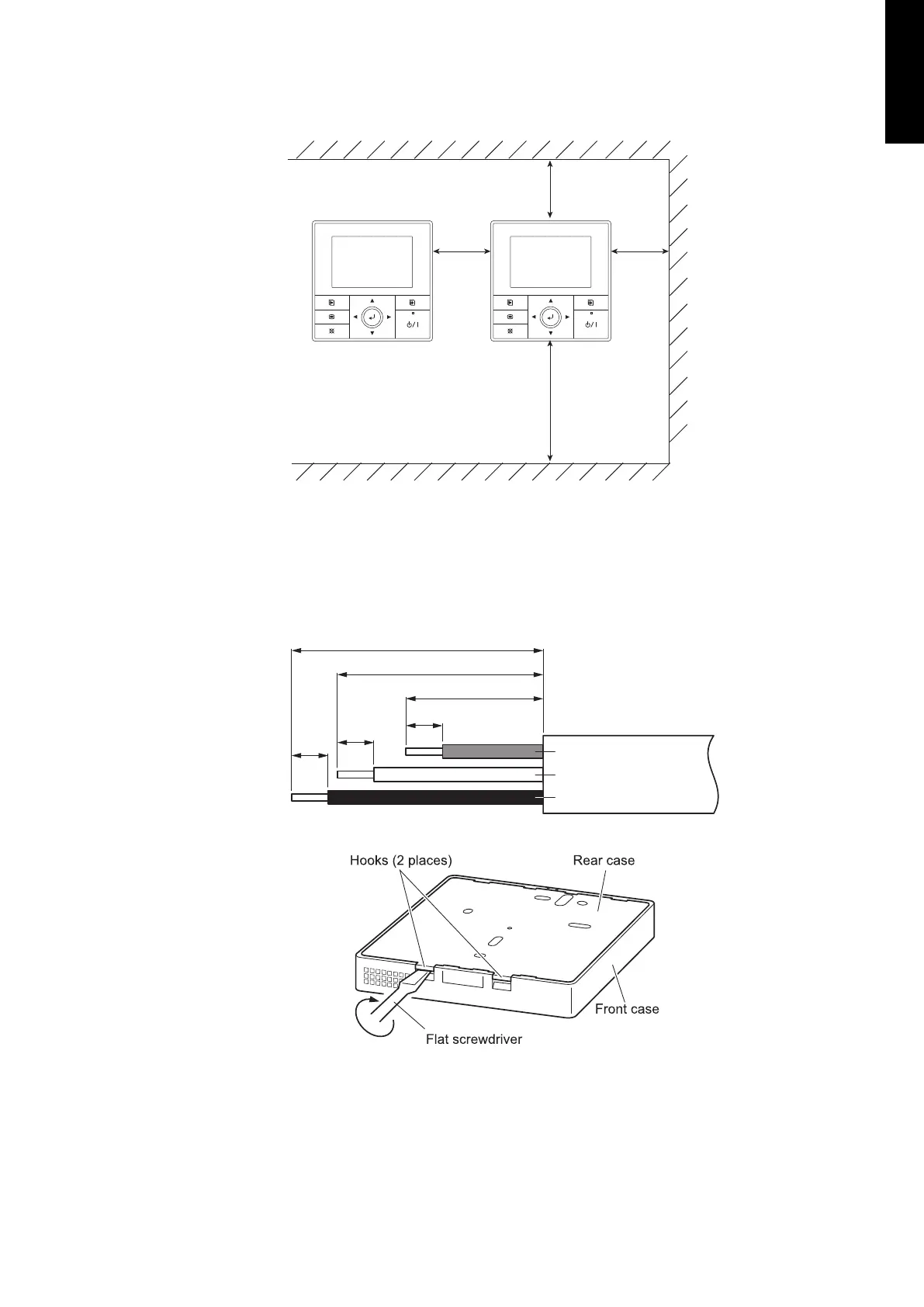

Installation (Remote control main unit)

Installation space:

220 or

more*

Unit : mm

or more

NOTE: Secure enough space where a ﬂat-blade screwdriver to remove the case can be insert-

ed.

Installation procedures:

1. Process the remote controller cable.

Unit : mm

1. 12V (Red)

2. Signal (White)

3. COM (Black)

2. Insert the flat-blade screwdriver and twist it slightly to separate the front case and rear case.
