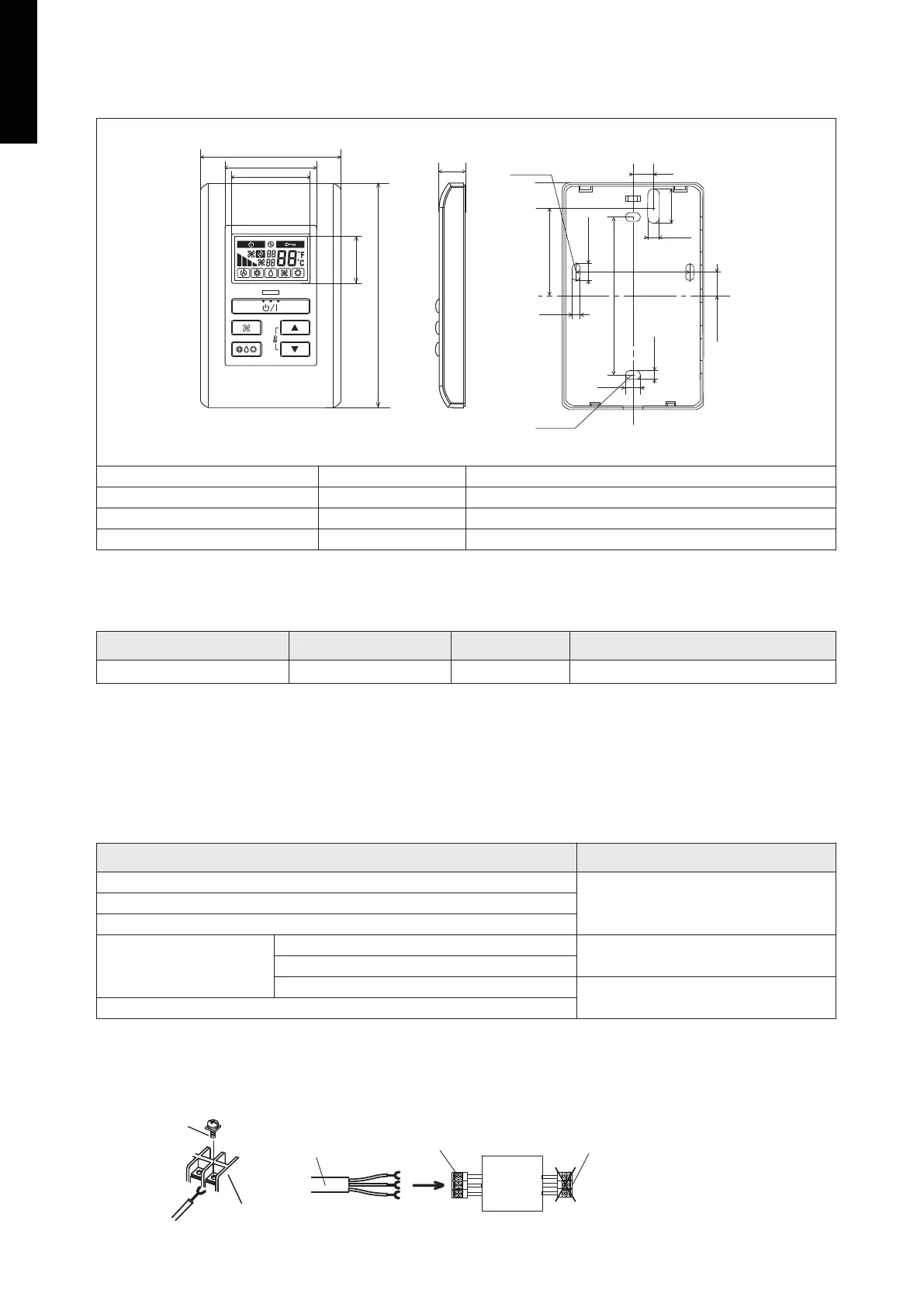

Specifications
Dimensions and other specifications on the wired remote controller are as follows.
Unit: mm
120
75
49
39
23.5
14
4
11
4.5
12.5
hole x 2
hole x 2
8
60
6
18
9
47.5
83.5
Front View Side View Rear View
Size (H × W × D) mm 120 × 75 × 14
Weight g 90
Cable length (accessory) m 10
Power V 12
 Wiring specifications
Use Size Wire type Remarks
Remote controller cable
0.33 mm
2
Polar 3 core Use sheathed PVC cable.
¢
Installation
 Connection pattern
NOTE: Connection pattern is different according to type of Indoor unit.
Indoor unit type Connection pattern
Compact cassette
Pattern ASlim duct, Mini duct
Floor/Ceiling
Wall mounted
LU
Pattern B
LM
LF
Pattern C
Floor
 Pattern A
Connect the end of remote controller cable directly to the exclusive terminal block.
PCB
M4 screw
Terminal block
Remote controller cable
Remote controller
terminal block
Outdoor unit or Power supply terminal
block or Remote controller terminal block
DESIGN & TECHNICAL MANUAL
- 192 -
MULTI TYPE
5, 6 ROOMS TYPE
