AR-REJ1E (included in UTY-LBTYM)

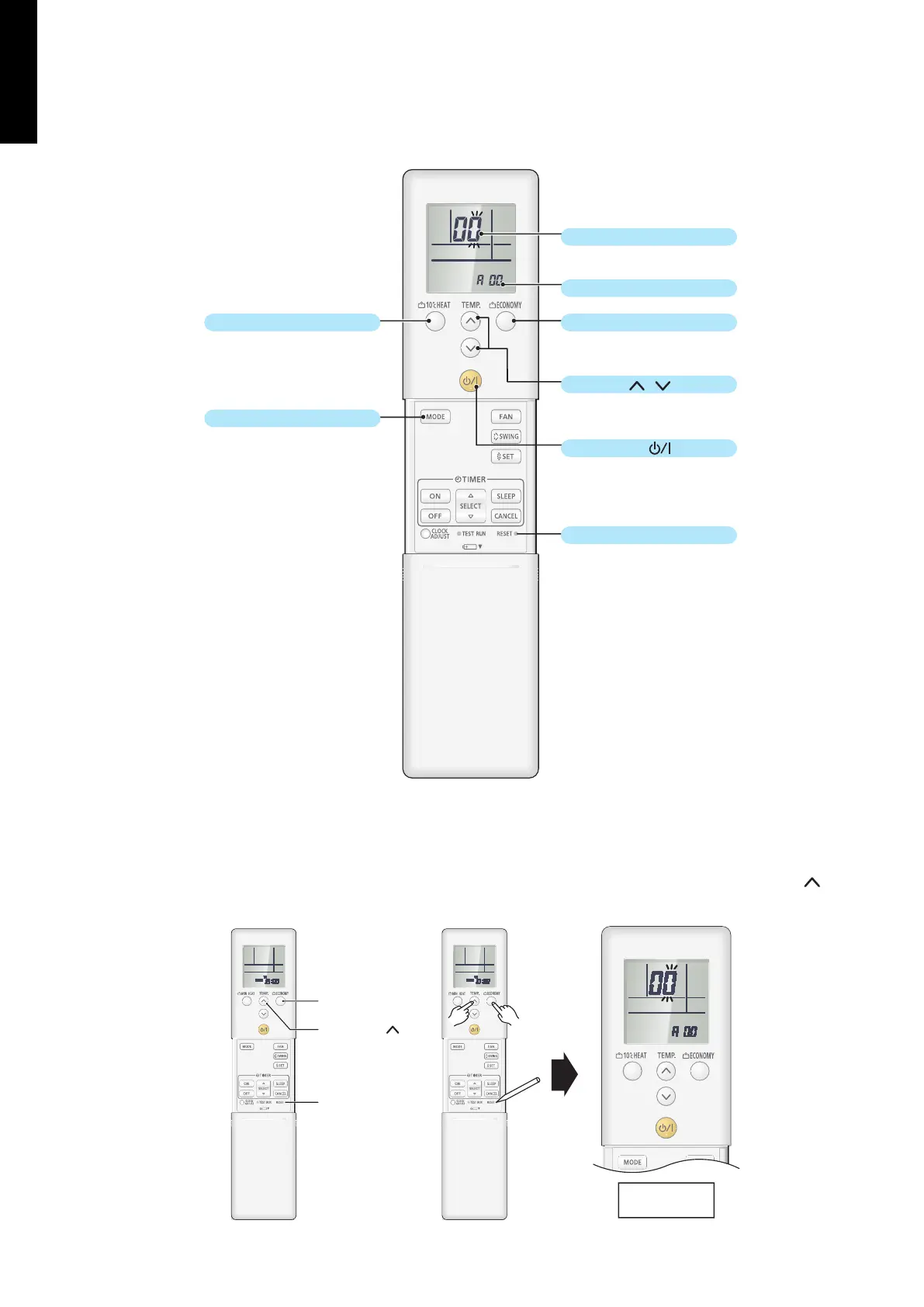

 Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
10°C HEAT button
Setting number
Function number
Refer to Function details.
Refer to Function details.
Switches between the setting number
(bottom line) and function number (top
line).
The displayed number Increases and
decreases.
Changes the displayed digits.
Fixes function setting.
Transmits function mode.
ECONOMY button
TEMP. (
/ ) button
Start/Stop ( ) button
RESET button
MODE button

Function setting procedure
1. Connect the power supply of the outdoor unit.
2. To enter the function setting mode, while holding down the ECONOMY and SET TEMP.
buttons, press the RESET button.
ECONOMY
SET TEMP.
( )
RESET
Function setting
mode display
DESIGN & TECHNICAL MANUAL
- 218 -
MULTI TYPE 5, 6 ROOMS TYPE
