5. Pressing the "+" or "-" button, to select the function number. Then press the "ENTER" but-
ton.
6. Pressing the "+" or "-" button, to select the setting number. Then press the "ENTER" button.

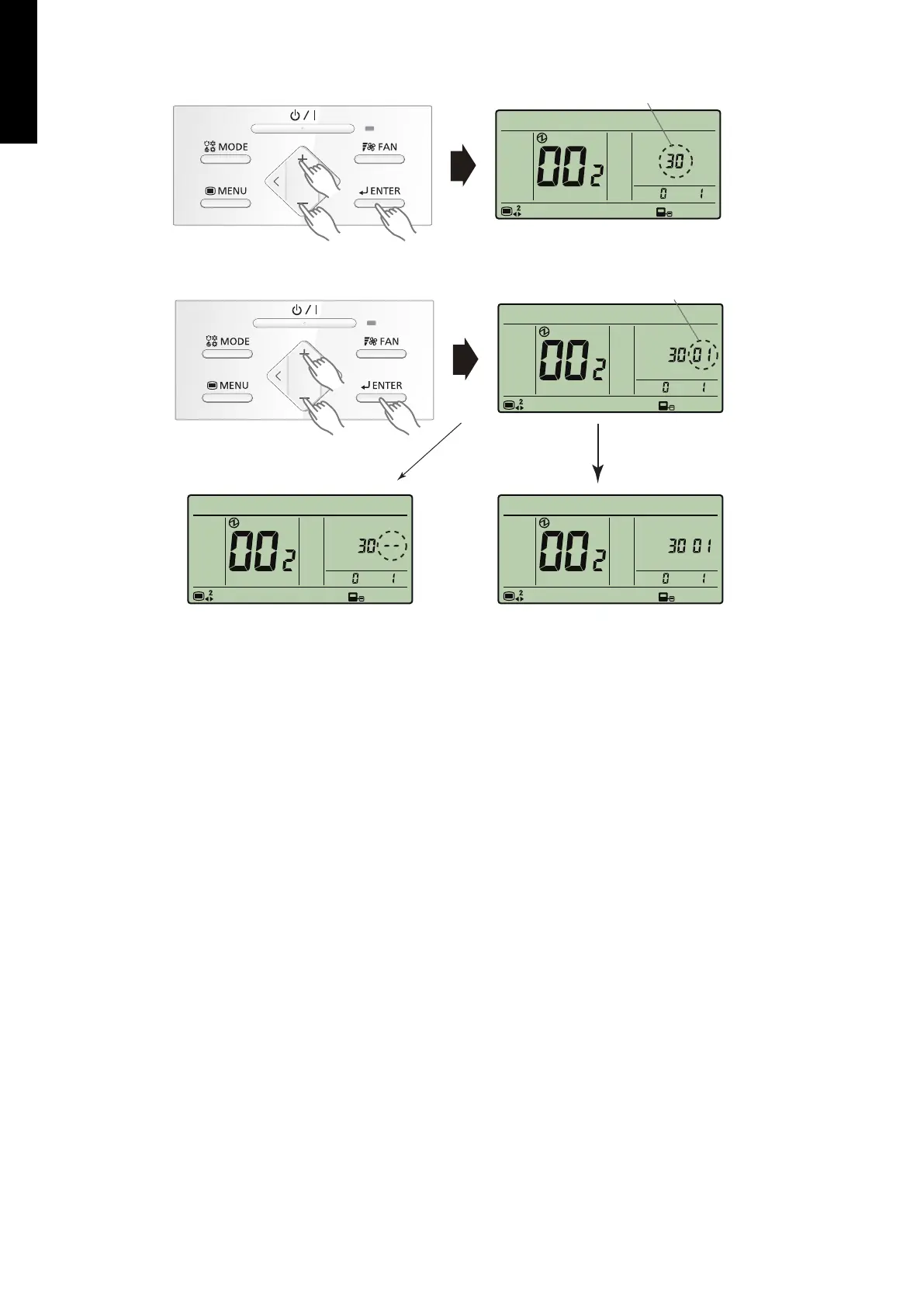

Setting number
Example: Function number 30
Setting number 01
GoodError
・
When the data was not set up on the indoor unit
・
Set up the data again.
・
When the data was normally set up on the indoor unit.
(” --” is displayed.)
Pressing the "ENTER" button to return to the address selection screen.
If setting has been completed, pressing the "MENU" button to return to the Menu 2 item se-
lection screen.
Setting up each indoor unit
Repeat the procedure from step 1 to 6, and set up the indoor units requiring function setting.
Resetting the power after setting up function of all indoor units
NOTES:
• If the reset is not performed, function cannot be read correctly.
• After all the functions have been set, the circuit breaker needs to be switched off for at least 2
minutes.
– After the 2 minutes has passed, power can be restored.
– The set function is stored in the PCB and will remain in memory even when the power of
indoor unit is turned off.
However setting function is effective after disconnecting the power supply and then recon-
necting it.
• Record the latest configuration of the indoor unit function setting on a label, and put the label
on the unit so it can be used for after-sales service operations.
DESIGN & TECHNICAL MANUAL
- 230 -
MULTI TYPE
5, 6 ROOMS TYPE
To Next Page
