Fujitsu ASYG12LMCA Design & Technical Manual

¢
Models: ASYG09LMCA and ASYG09LMCE

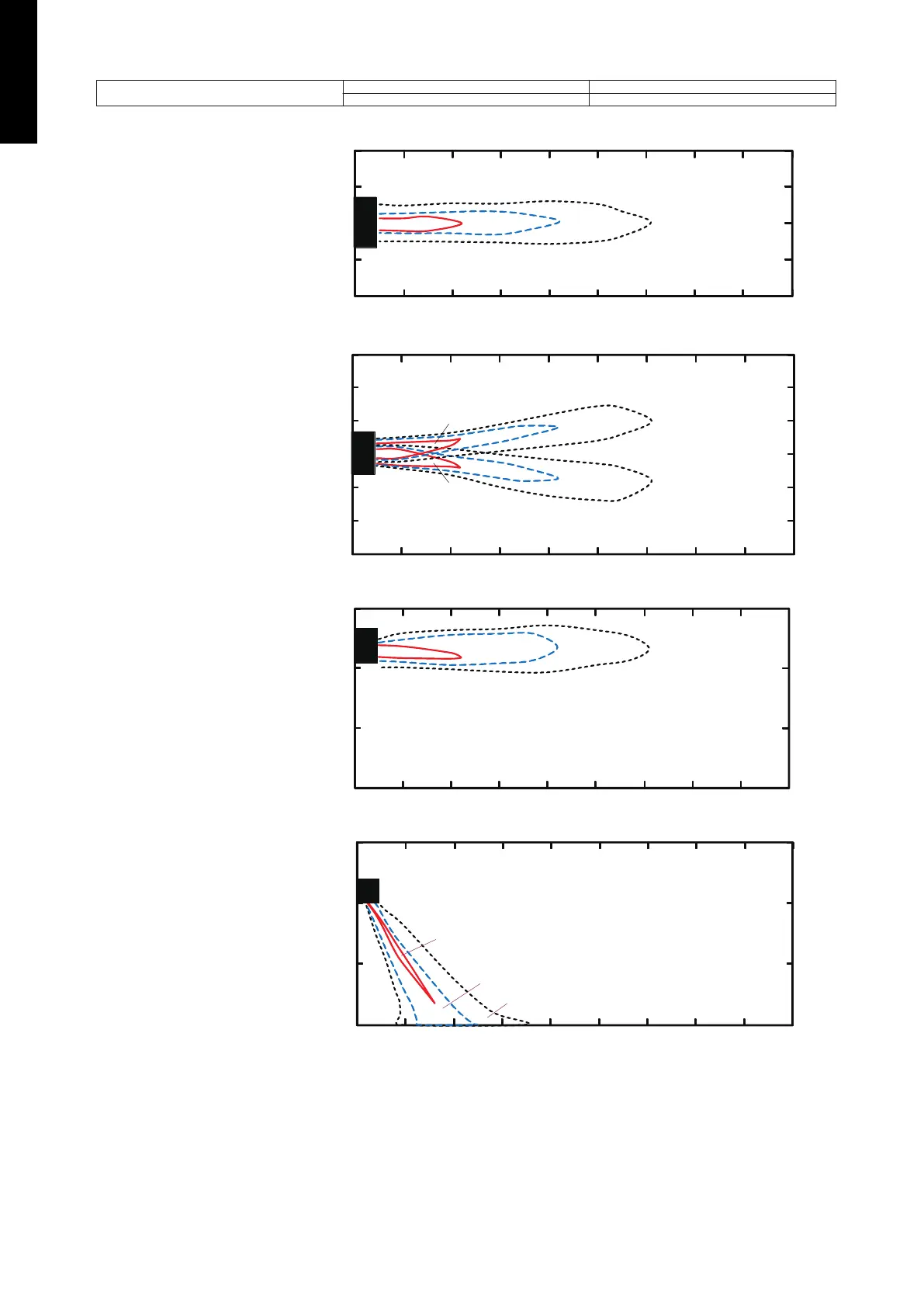

Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Unit: m/s
(m)
0
1
1
2
2
(m)
0123456789
2.0
1.0 0.5
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
Unit: m/s
(m)
0 123456789
(m)
0
1
1
2
2
3
3
2.0
2.0
1.0
1.0
0.5
0.5
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Unit: m/s
3
2
1
0
(m)
(m)
0123456789
2.0
1.0 0.5
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
Unit: m/s
3
2
1
0
(m)
(m)
0123456789
2.0
1.0
0.5
DESIGN & TECHNICAL MANUAL
- 80 -
MULTI TYPE 5, 6 ROOMS TYPE
