Fujitsu ASYG12LMCA Design & Technical Manual

¢
Model: ASYG18LFCA
Measuring conditions
Fan speed Operation mode
HIGH FAN

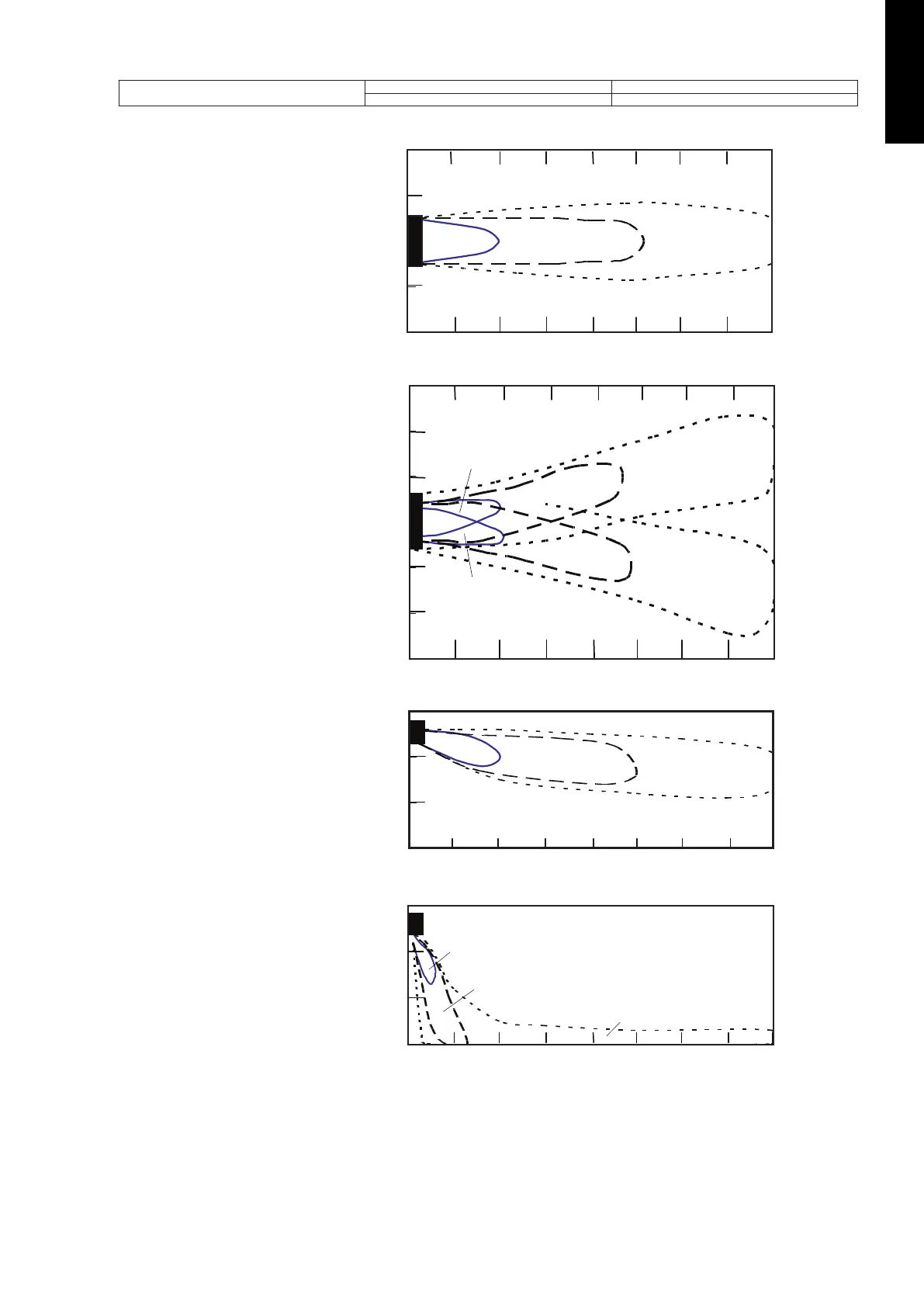

Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Unit: m/s
(m)
0
1
1
2
2
(m)
012345678
2.0
1.0
0.5
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
2.0
2.0
1.0
1.0
0.5
0.5
Unit: m/s
(m)
012345678
(m)
0
1
1
2
2
3
3
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
3
2
1
0
Unit: m/s
(m)
(m)
012345678
2.0
1.0
0.5
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
2.0
1.0
0.5
3
2
1
0
Unit: m/s
(m)
(m)
012345678
