Fujitsu B27T-7 User Manual

Tech nical specification

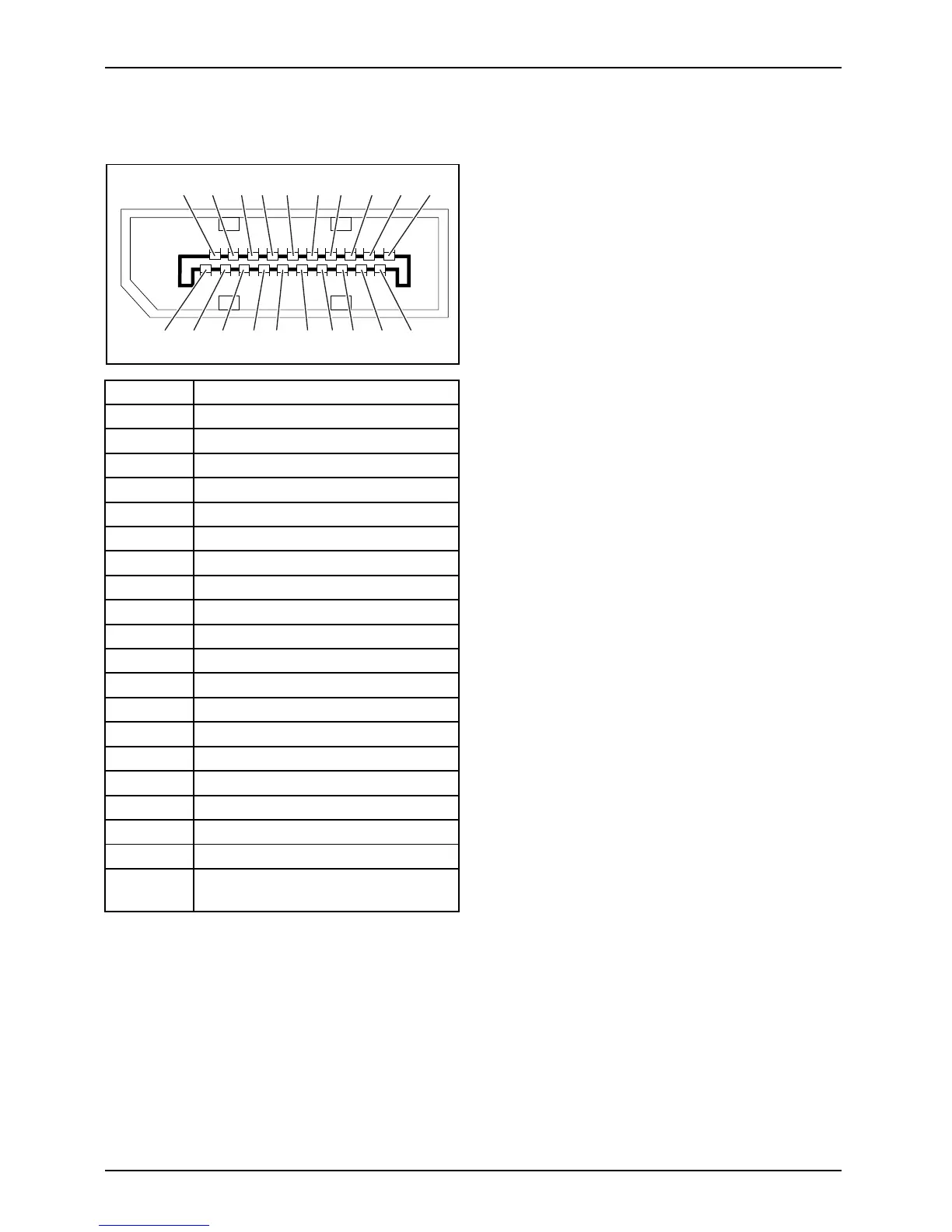

DisplayPort socket
1319 17 1513 11 9 7 5
2420 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (nega tive)
2Earth
3
Lane 3 ( positive)
4
Lane 2 (nega tive)
5
Earth
6
Lane 2 ( positive
)
7
Lane 1 (nega tive)
8Earth
9
Lane 1 ( positive)
10
Lane 0 (nega
tive)
11 Earth
12
Lane 0 ( positive)
13
Connected to earth
14
Connect
ed to earth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary channel (negative)
18 Hot Plug D etect
19
Ret
urn for Power
20
Power for connector
(3.3 V 500 mA)
36 Fujitsu

Fujitsu B27T-7 Specifications

General

Brand	Fujitsu
Model	B27T-7
Category	Monitor
Language	English
