Fujitsu D2616 - Connectors

Modular RAID Controllers 17
Modular RAID 3Gb/s (SAS1.0)
3.1.3 Connectors

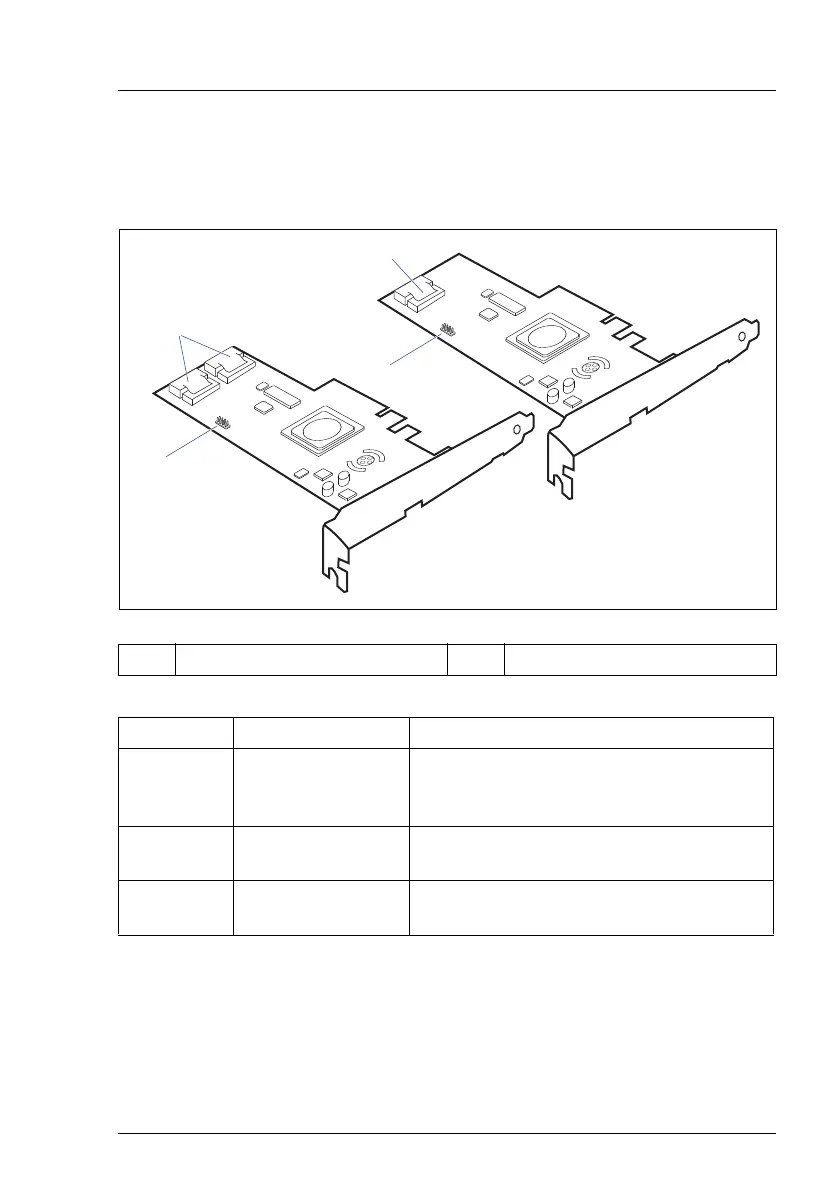

The following figure shows the location of the connectors on the controllers.
1 HDD LED connector 2 SAS cable connector(s)
Connector Type Description
SAS MLC1 x4 SAS, ports 0 - 3 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs (hard disk
drives)
SAS MLC2 x4 SAS, ports 4 - 7 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs
HDD LED HDD activity
indication LED
8-pin connector
Pin 6 to connect activity LED
2
1
2
1
