24
Modular RAID Controllers
Modular RAID 3Gb/s (SAS1.0)

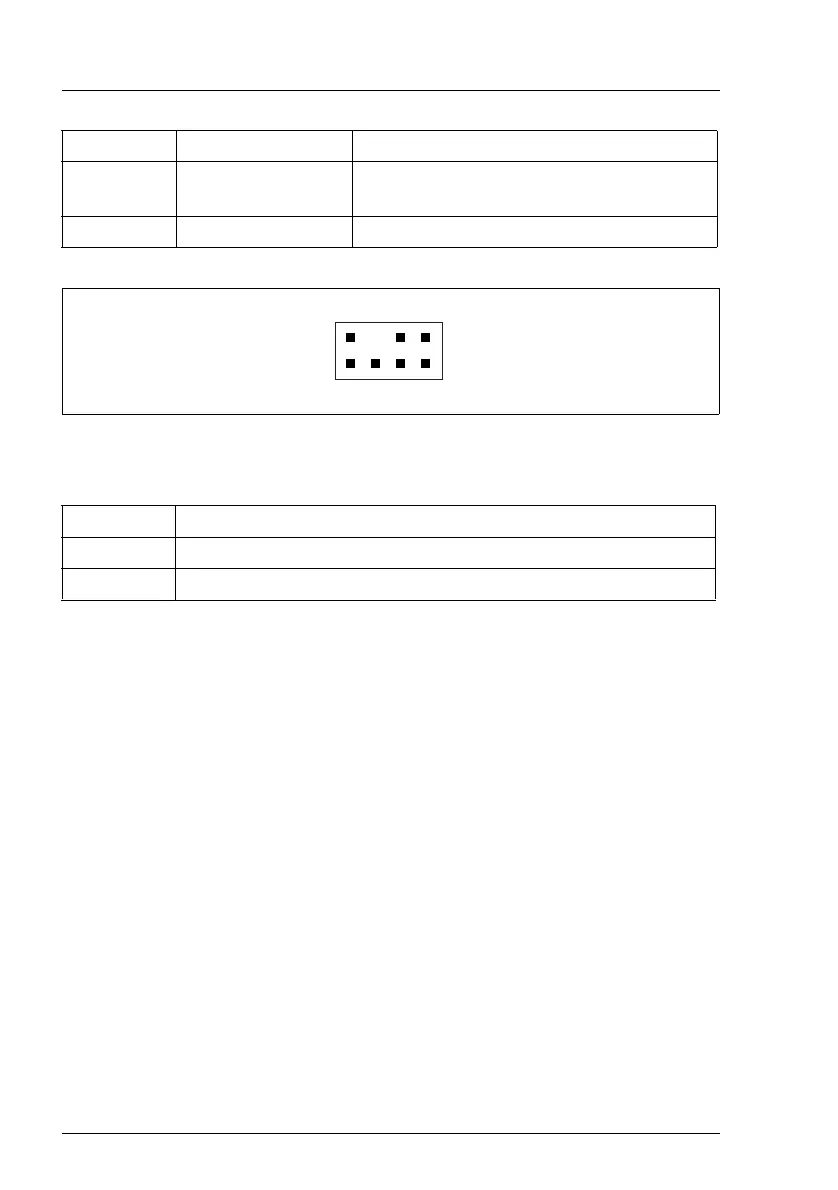

Figure 5: HDD LED connector
Indicators
3.2.4 Installation
This section describes how to install the SAS RAID controller in a server.
V CAUTION!
To safeguard against data loss, remember to back up your data before
you change your system configuration.
To install the new controller, proceed as follows:
HDD LED HDD activity
indication LED
8-pin connector
Pin 6 to connect activity LED
iBBU Connector to attach external iBBU
LED Description
L1 (AL) Replacement for audible warning
L2 (CD) Write pending (data cached)
Step 1 Unpack the controller
Unpack the new controller in a static-free environment. Remove
it from the anti-static bag and inspect it for damage.
If the controller appears to be damaged, contact the Fujitsu
support service.
Step 2 Prepare the server
Turn off the server and remove the cover from the chassis.
Connector Type Description
