Fujitsu D2616 - Connectors and Indicators

Modular RAID Controllers 87
Modular RAID 12Gb/s (SAS3.0)
5.2.3 Connectors and indicators
The following figure shows the location of the connectors and indicators on the
SAS RAID controller.

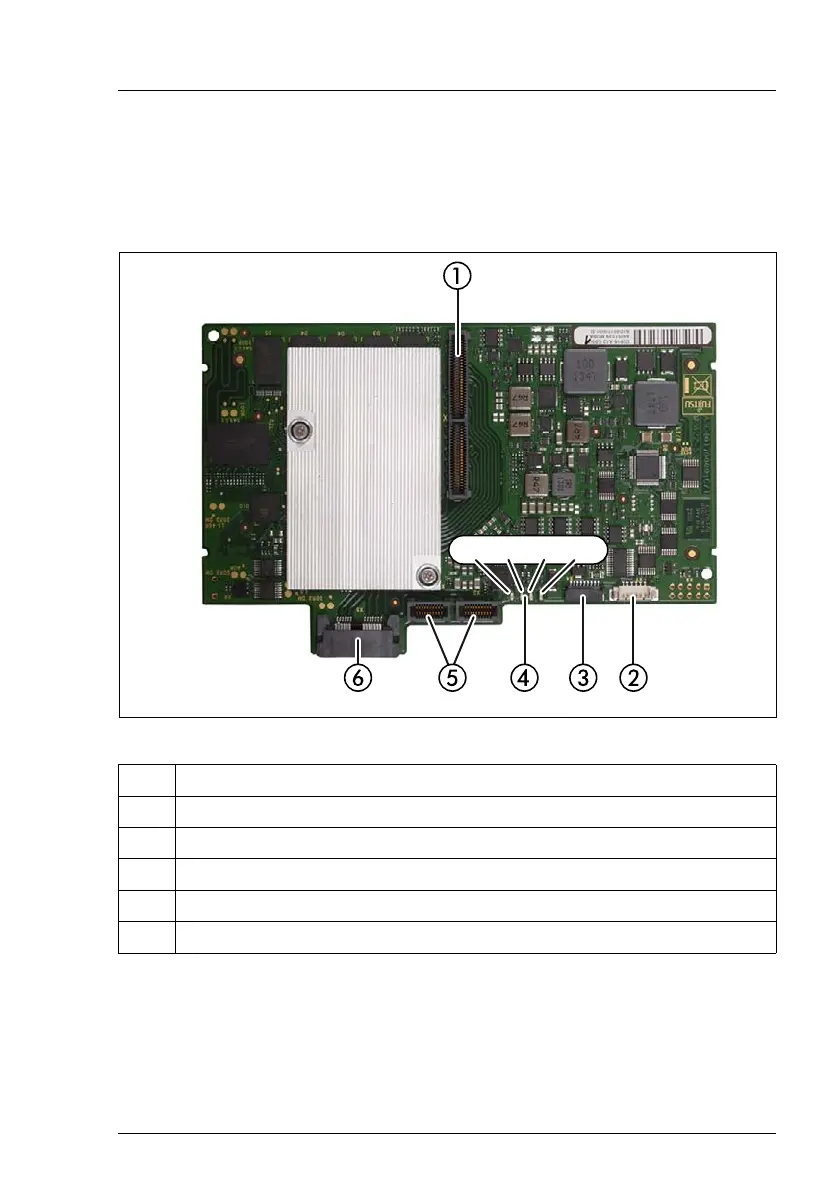

Figure 31: "PRAID EM400i" board layout
1 HSEC8 connector for PCIe
2 UART connector
3 SuperCap Module connector
4 Indicators
5 2x SAS connectors (port 0-1)
6 SAS connector (port 4-7)
H100, H101, H322, H102
