34
Modular RAID Controllers
Modular RAID 6Gb/s (SAS2.0)
Connectors

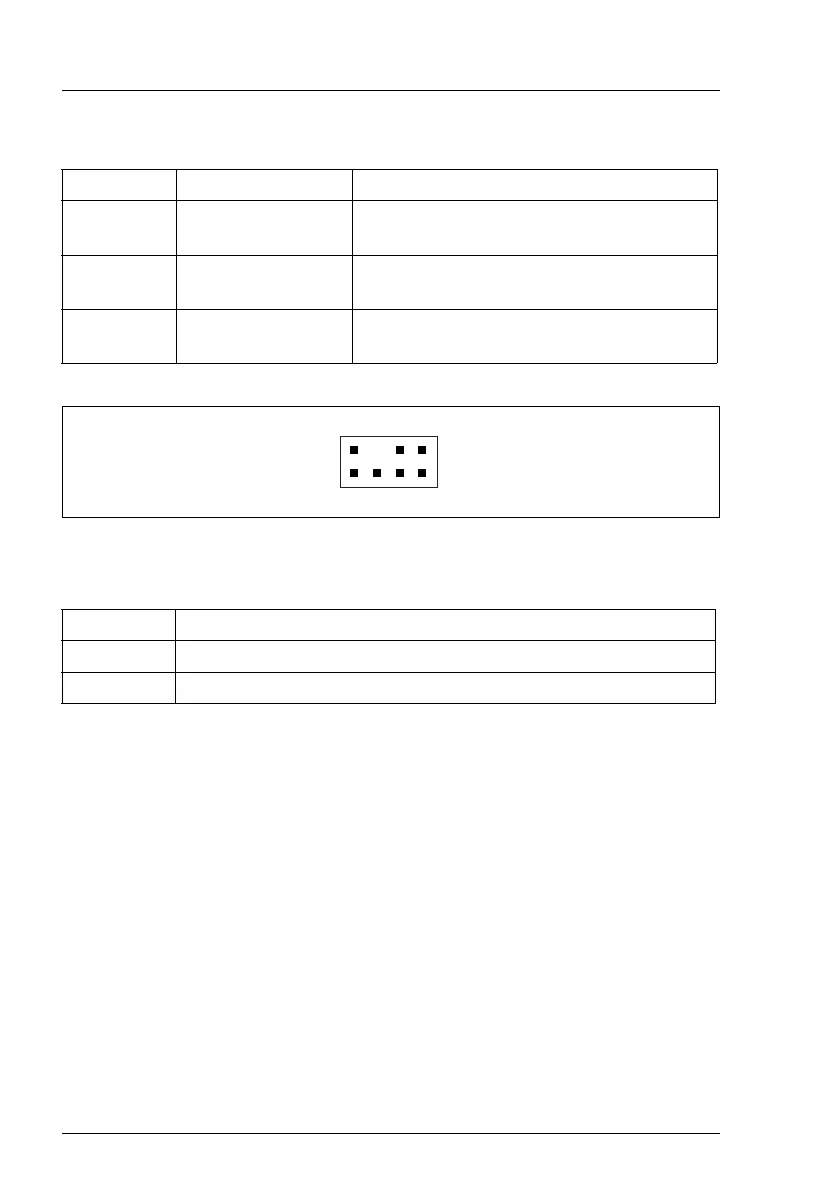

Figure 10: HDD LED connector
Indicators
4.1.4 Installation
This section describes how to install the SAS RAID controller in a server.
V CAUTION!
To safeguard against data loss, remember to back up your data before
you change your system configuration.
To install the new controller, proceed as follows:
Connector Type Description
SAS MLC1 x4 SAS, ports 0 - 3 SFF Mini SAS connector for SAS IO cable
to backplane and HDDs
SAS MLC2 x4 SAS, ports 4 - 7 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs
HDD LED HDD activity
indication LED
8-pin connector
Pin 6 to connect activity LED
LED Description
L1 (HB) Heart Beat
L2 (ERR) Error
Step 1 Unpack the controller
Unpack the new controller in a static-free environment. Remove
it from the anti-static bag and inspect it for damage.
If the controller appears to be damaged, contact the Fujitsu
support service.
