82

Modular RAID Controllers

Modular RAID 12Gb/s (SAS3.0)

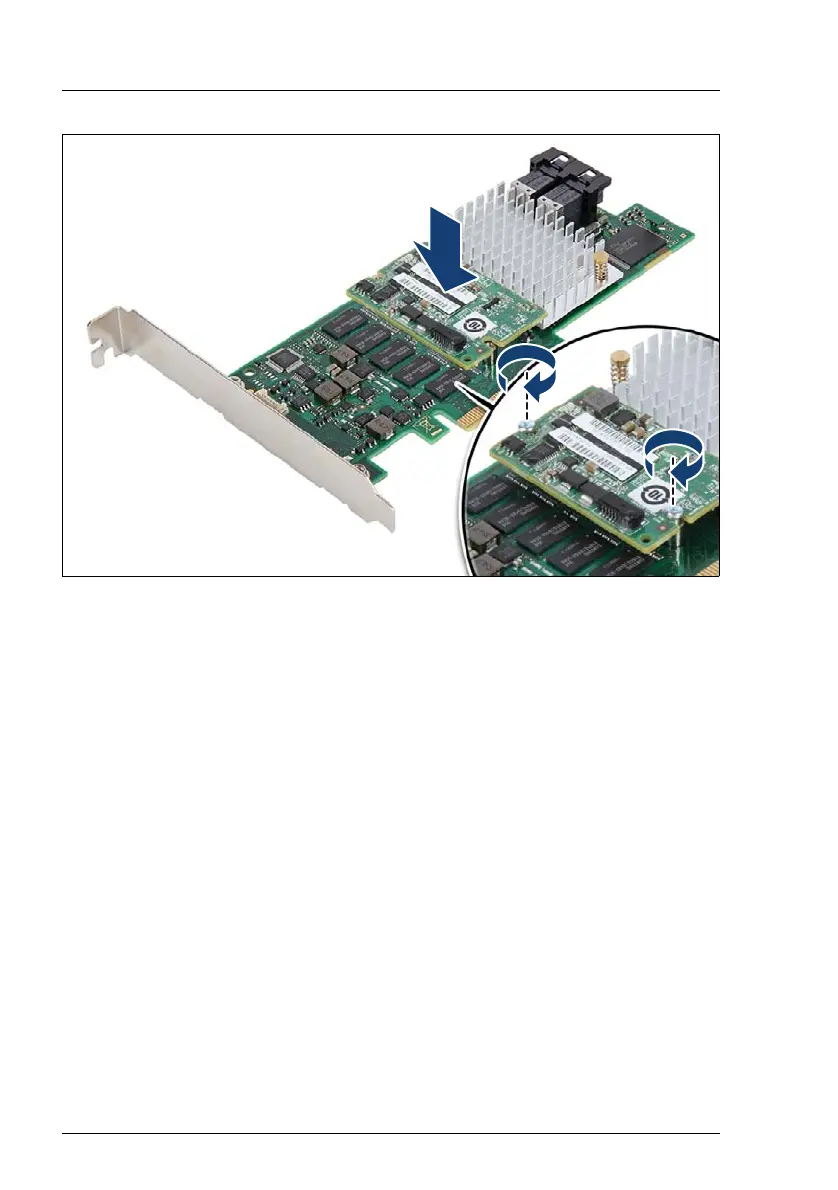

Figure 26: Installing the TFM (B)

Ê Secure the PRAID EP400i/EP420i TFM on the controller with the two screws

from the TFM kit.
