Fujitsu D2616 User Manual

84 Modular RAID Controllers
Modular RAID 12Gb/s (SAS3.0)

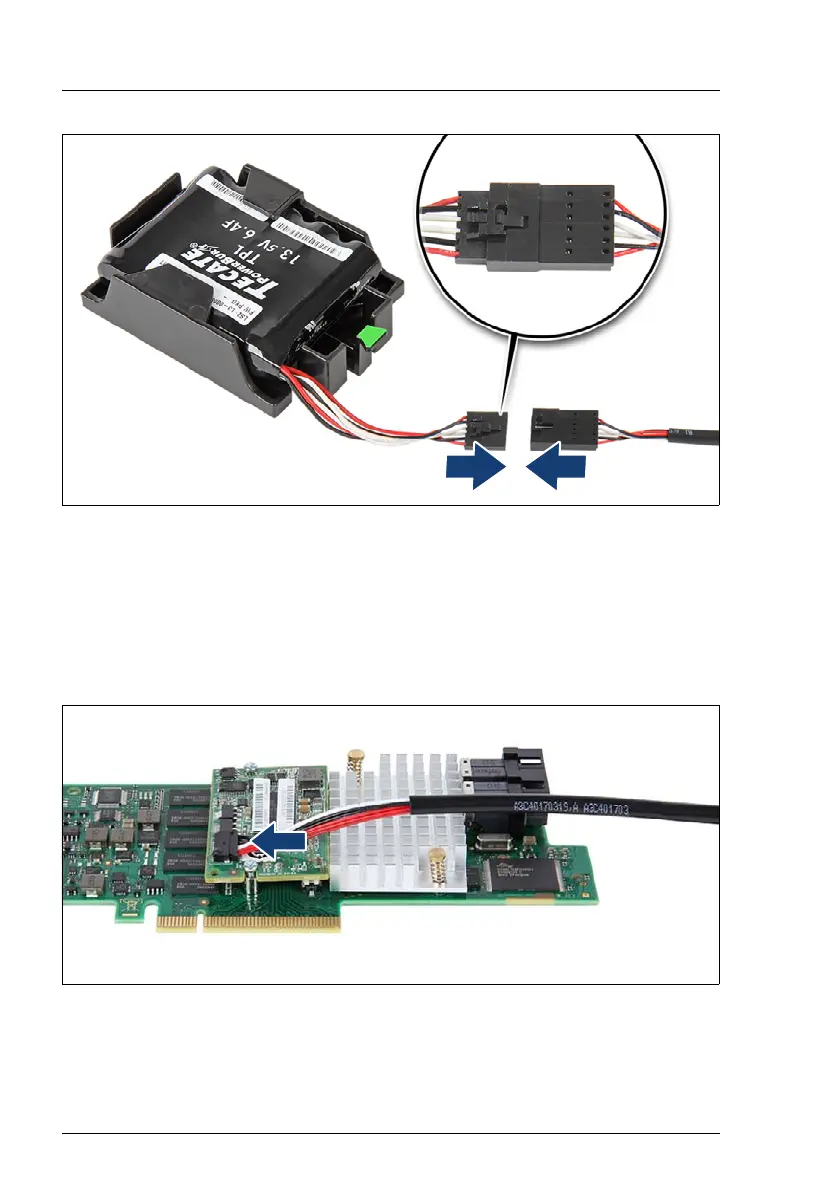

Figure 28: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end of the FBU cable to the FBU adapter cable as shown.
Ê Secure the FBU to the server chassis as described in the server
documentation.
Connecting the FBU adapter cable
Figure 29: Connecting the FBU adapter cable
Ê Connect the loose end of the FBU adapter cable to the TFM on the RAID
controller (see section "Connectors and indicators" on page 77).
