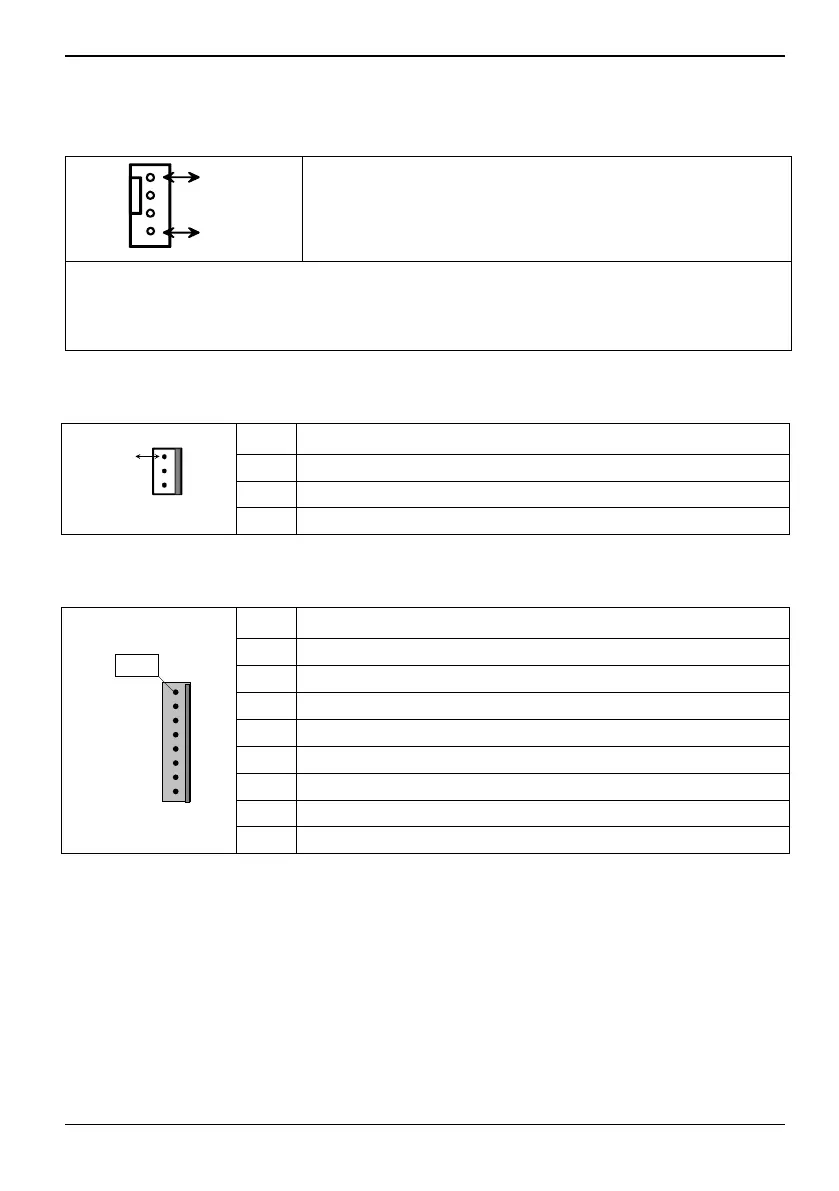

Board Installation
Pin 1
Pin 4
Pin1: GND
Pin2: +12V Power
Pin3: FAN Sense
Pin4: Fan PWM
This 4-pin fan connector supports tachometer monitoring.
There are six 4-pin fan connectors on D3488. Use these connectors to connect chassis and
processor cooling fans to your motherboard. Cooling fans can keep the system stable and reliable for
its product’s life.
Intrusion connector (internal)
PIN Signal
1 GND
2 open
3 Intrusion switch present
Pin 1
PC2009 PSU Connector (PC2009)
Pin 1
PIN Signal
1 FASTPROCHOT PSU L
2 PS Fan PWM
3 Not connected
4 PS Fan Sense
5 Not connected
6 Not connected
7 Not connected
8 Not connected
